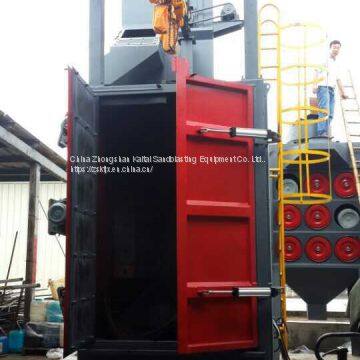

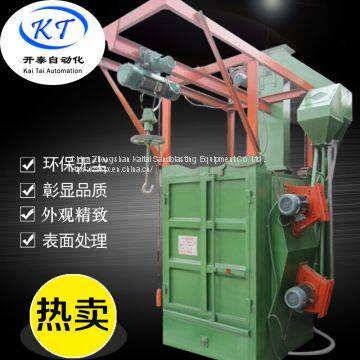

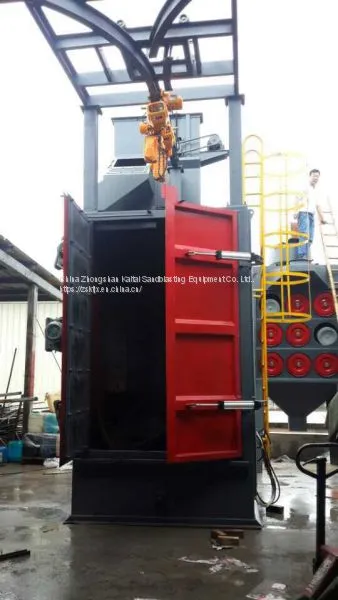

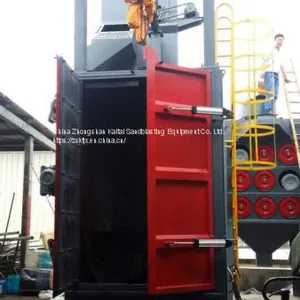

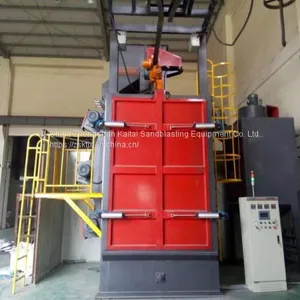

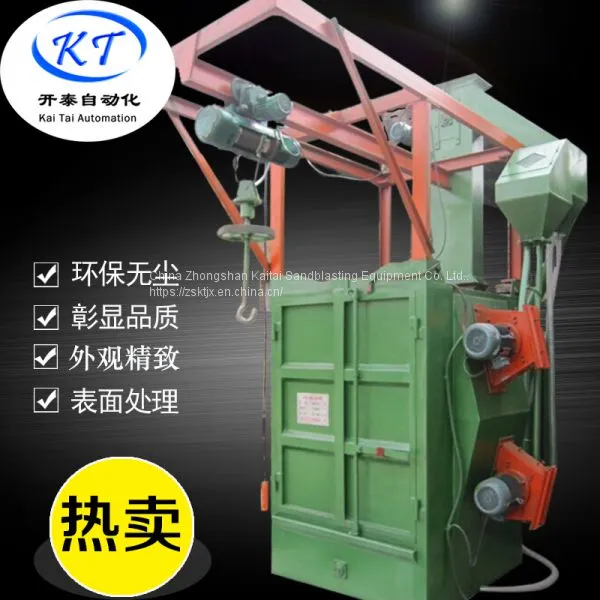

Hook shot blasting machine，Single hook or double hook can be selected.

1. The maximum size of the workpiece to be cleaned:

Length * width X height: 600 x 600 x 400 mm

2. Shot blasting device:

Model Q374

Impeller diameter 250 mm

Shot blasting volume 18kg/min

Motor power 4kW

The number of shot blasting machines is 2.

3. The time needed to clean up a hook.

Casting 8-10min

Forgings 5-10min

Aluminum alloy 5-8min

4, hoist:

Lifting capacity 18t/h

Belt speed > 1.2 m/s

Power 3kW

5, separator:

Separation 18t/h

The wind speed is 4-5 m/s in the separation zone.

6, screw conveyor:

7, delivery volume 30 t/h

8. Hook mechanism: 1 sets.

Hook load 1T

Motor power 3 kW

Running speed 20 m/min

Motor power 0.55 kW

9. Projectile:

First loading 300 kg

Diameter 0.3 ~ 0.8mm

10, dusting cloth bag type 20.

Fan power 3kw

The total air volume is 6800 m3/h.

11. The total power of the whole machine is 11.55kw

12, main cleanroom dimensions (long X width X high) 1200X1200X2000mm

Scope of application: treatment before electroplating and spraying to improve adhesion; All kinds of molds, casting parts, stamping parts, metal surface to remove oxide, residue, rust, oil, old parts renovation; Ceramic products, glass products, plastic products lighting, atomization, edge removal, deburr, enhance spray adhesion.

The advantages of sandblasting machine are:

1. the metal parts of the sandblaster are basically free from damage and the dimensional accuracy will not change.

2. the surface of the parts is not contaminated, and the abrasive will not react with the parts.

3. Sandblasting machine can easily handle grooves, grooves and other difficult to contact parts, a variety of granularity of abrasive can choose to use;

4. The cost of treatment is greatly reduced, mainly reflected in the improvement of the efficiency of the sandblasting machine, which can meet various surface finishing requirements.

5. low energy consumption and low cost.

6. sandblasting machine does not pollute the environment, and saves the cost of environmental treatment.
