Plywood Double Sides Wide Belt Sander Machine
US$ 20000 - 30000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO
Place of Origin:
China
Model Number:
SR13D
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
15 days
Related Products
-
Wide Belt Sander Machine One Head Calibrating Sander for PlywoodUS$ 16000 - 29000MOQ: 1 Set -
Three Heads Wide Belt Calibrate Sander Machine for Makig Plywood/ ChipboardUS$ 12000 - 20000MOQ: 1 Set
-
Wide Belt 3 Heads Calibrating Sander Machine for Making PlywoodUS$ 12000 - 20000MOQ: 1 Set
-
Woodworking Wide Belt Sander Machine for Making PlywoodUS$ 12000 - 20000MOQ: 1 Set
-
Two Heads Roll Feed Wide Belt Sander MachineUS$ 12000 - 20000MOQ: 1 Set
Brand Name
METRO
Place of Origin
China
Model Number
SR13D
Certification
CE, ISO, FDA, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
15000Kgs
Dimension(L*W*H)
2200x3360x2900mm
Condition
New
Voltage
380V/415V/440V and So on
Type
Sander
Product Description

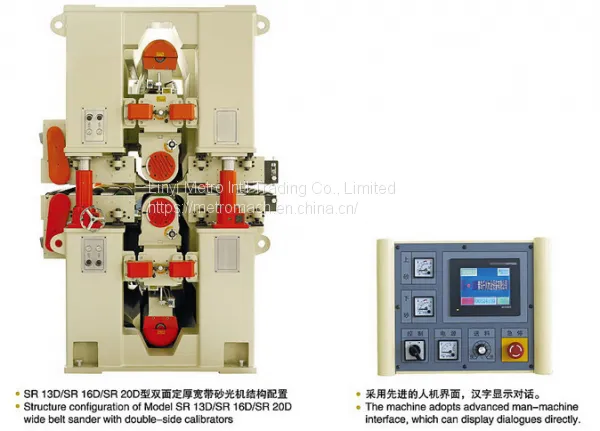

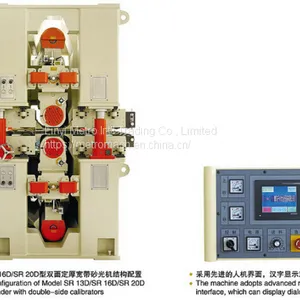

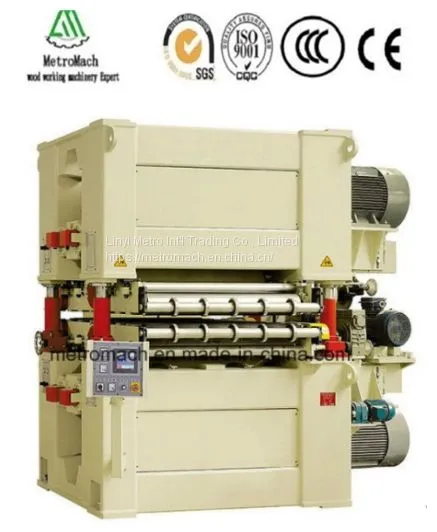

Double Sides Calibrate Sanding Machine
Main features:
1.Incorporating advanced technology ,using high quality imported parts and accessories and featuring stable performance ,precision double-side processing with thickness tolerance of± 0.1mm.2.The machine is structured by cold forming rectangle steel,noted for high rigidity,vibration damping and deformation free.
3.Easily operated inverter speed regulator for reliable meterial feeding.
4.Simplified operation of the computer terminal with the industrial-grade touch screen.
Main technical specifications:
| Machine name | Double sides calibrating sander machine | |
| Machine model | SR13D | |
| Working thickness | 3-90mm | |
| Working length | >700mm | |
| Working width | 100-1300mm | |
| Abrasive belt speed | 29m/s 25m/s | |
| Size of abrasive belt (WxP) | 1350x2800mm | |
| Feed speed | 6-30m/min | |
| Main motor | 75Kw x 2 | |
| Overall dimension(LxWxH) | 2200x3360x2900mm | |
| Motors | Feed motor | 11Kw |
| Lifter motor | 1.5Kw | |
| Compressed air | Brush motor | 0.75Kw x 2 |
| Working air pressure | 0.6Mpa | |
| Exhaust air consumption | Exhaust air consumption | 24000m3/h |
| Pressure | 1300pa | |
| Air speed | 25-30m/s | |
| Machine weight | 15000Kgs | |
