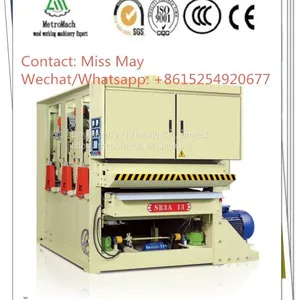

Three Heads Wide Belt Calibrate Sander Machine for Makig Plywood/ Chipboard
US$ 12000 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METROMACH
Place of Origin:
China
Model Number:
SR3A13
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wide Belt 3 Heads Calibrating Sander Machine for Making PlywoodUS$ 12000 - 20000MOQ: 1 Set -
Woodworking Wide Belt Sander Machine for Making PlywoodUS$ 12000 - 20000MOQ: 1 Set
-
Two Heads Roll Feed Wide Belt Sander MachineUS$ 12000 - 20000MOQ: 1 Set
-
Woodworking Three Heads Heavy Duty Calibrate Sander MachineUS$ 20000 - 40000MOQ: 1 Set
-
Plywood Wide Belt Heavy Duty Sander MachineUS$ 10000 - 23000MOQ: 1 Set
Brand Name
METROMACH
Place of Origin
China
Model Number
SR3A13
Certification
CE, ISO, FDA
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
9000kg
Dimension(L*W*H)
2630x2780x2530mm
Condition
New
Power(W)
76kw
Type
Sander
1. Characteristics

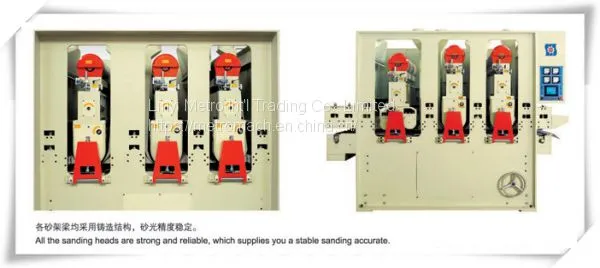

The machine frame adopts welding integral structure to improve the machine's rigidity and service life of the machine.
The roller's diameter is much bigger and all the rollers have been run-balanced precisely ,which makes running smoothly and improves the sanding power.
Frequency-controlled feeding improves the productive efficiency.
The feeding rolllers are supported by floating spring.You can adjust the back pressure until satisfied with the sanding result.
Advanced triggering computer teminal makes operation easy and clear.
2. Technical features

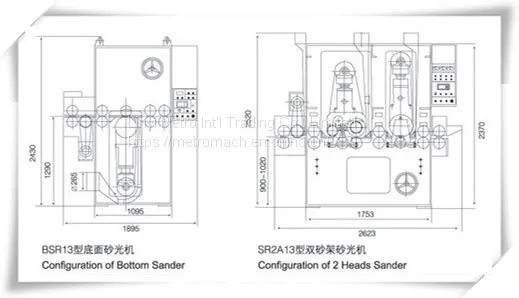

| SR3A13 | SR2A13 | BSR13 | |
| Working width | 40-1300mm | 40-1300mm | 40-1300mm |
| Working thickness | 2.5-110mm | 2.5-110mm | 2.5-110mm |
| Working length | ≥750mm | ≥750mm | ≥750mm |
| No.1 abrasive belt speed | 20m/s | 20m/s | 20m/s |
| No.2 abrasive belt speed | 20m/s | 17m/s | |
| No.3 abrasive belt speed | 14m/s | ||
| Feed speed | 13-100m/min | 13-100m/min | 13-100m/min |
| Size of abrasive belt(WxP) | 1330x2615mm | 1330x2615mm | 1330x2615mm |
| Total motor power | 106kw | 76kw | 46.35kw |
| Main motor | 37kw,30kw,30kw | 37kw,30kw | 37kw |
| Working air pressure | 0.55Mpa | 0.55Mpa | 0.55Mpa |
| Consumption of compressed air | 0.1m3/min | 0.1m3/min | 0.1m3/min |
| Volume of sucked air | 12000m3/h | 10000m3/h | 8000m3/h |
Speed of sucked air |
25-30m/s | 25-30m/s | 25-30m/s |
| Overall dimension{LxWxH) | 3140x2770x2440mm | 2630x2780x2530mm | 2870x1900x2450mm |
| Net weight | 11000kg | 9000kg | 5500kg |
