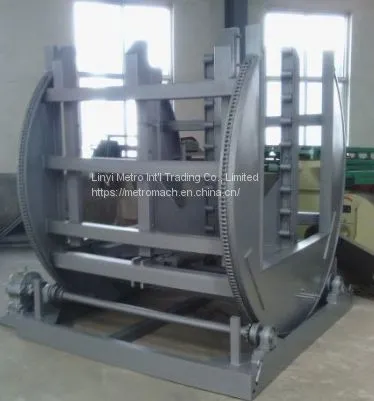

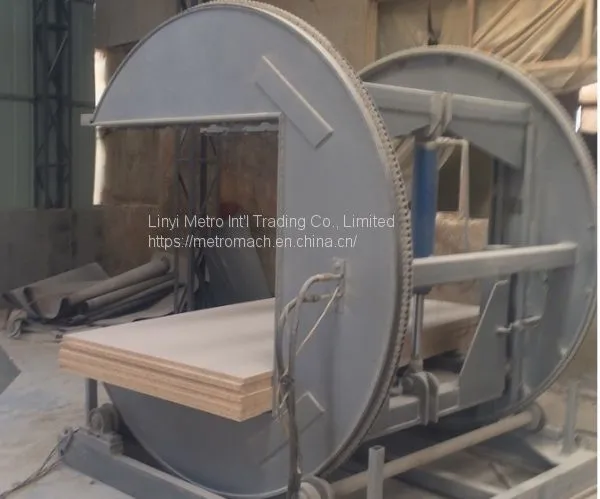

Wood Panel Board 180 Degree Turnover Machine
US$ 2000 - 4000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO
Place of Origin:
China
Model Number:
YFB48-I
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
15 days
Related Products
-
High Quality Glue Mixer for Plywood MakingUS$ 700 - 1500MOQ: 1 Set -
Woodworking Knife Blade Sharpener Grinder MachineUS$ 3300 - 3300MOQ: 1 Set
-
Industrial Thermal Oil Boiler With Fixed Chain GrateUS$ 25000 - 50000MOQ: 1 Set
-
Wood Face Veneer Rotary ClipperUS$ pending - pendingMOQ: 1 Set
-
Automatic Wood Veneer Clipper MachineUS$ 2000 - 3000MOQ: 1 Set
Brand Name
METRO
Place of Origin
China
Model Number
YFB48-I
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Overturning machine is usually used in Sanding line of plywood factory,particle board factory, mdf board factory, OSB board factory etc.
1. The hydraulic oil cylinder is of smooth and uniform compaction and easy to control, and the clamping force is adjustable;
2. The plate blank is fed in by means of rolling bearing,which causes no damage to the plate blank;
3. The control button and the indicating lamp are all located on the control panel, easy for operation as well nice and practical.
Technical Specifications
| Model | FB4X8-II |
| Cylinder | φ100x500mm |
| Max. Opening | 1250mm |
| Overturning Angle | 0~180 degrees |
| Machine Power | 4.5kw |
| Machine sizes | 2040x2100x2200mm |
| Machine Weight | About 1850kgs |
