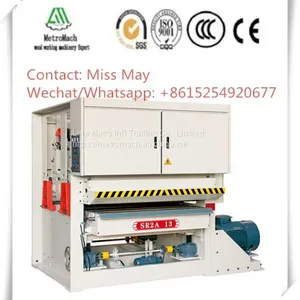

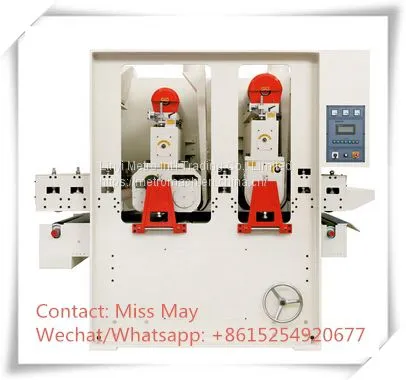

Two Heads Roll Feed Wide Belt Sander Machine
US$ 12000 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METROMACH
Place of Origin:
China
Model Number:
SR2A13
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Woodworking Three Heads Heavy Duty Calibrate Sander MachineUS$ 20000 - 40000MOQ: 1 Set -
Plywood Wide Belt Heavy Duty Sander MachineUS$ 10000 - 23000MOQ: 1 Set
-
Plywood Double Sides Wide Belt Sander MachineUS$ 20000 - 30000MOQ: 1 Set
-
Wide Belt Sander Machine One Head Calibrating Sander for PlywoodUS$ 16000 - 29000MOQ: 1 Set
-
Three Heads Wide Belt Calibrate Sander Machine for Makig Plywood/ ChipboardUS$ 12000 - 20000MOQ: 1 Set
Brand Name
METROMACH
Place of Origin
China
Model Number
SR2A13
Certification
CE, ISO,FDA
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
9000KG
Dimension(L*W*H)
2630 x 2780 x 2530mm
Condition
New
Voltage
380V
Power(W)
76KW
Type
Sander
1. Technical features
| SR2A13 | SR2A13A(slanting sander) | |
| Working width | 40-1300mm | 40-1300mm |
| Working thickness | 2.5-110mm | 3-100mm |
| Working length | ≥750mm | ≥1200mm |
| No.1 abrasive belt speed | 20m/s | 20m/s |
| No.2 abrasive belt speed | 17m/s | 18m/s |
| No.3 abrasive belt speed | / | / |
| Feed speed | 13-100m/min | 10-50m/min |
| Size of abrasive belt(WxP) | 1330 x 2615mm | 1330 x 2615mm |
| Total motor power | 76kw | 113.6kw |
| Main motor power | 37kw,30kw | 55kw,45kw |
| Working air pressure | 0.55Mpa | 0.55Mpa |
Consumption of compressed air |
0.1m³/min | 0.1m³/min |
| Volume of sucked air | 10000m³/h | 10000m³/h |
| Speed of sucked air | 25-30/s | 25-30/s |
| Overall dimension{LxWxH) | 2630 x 2780 x 2530mm | 3200 x 2980 x 2440mm |
| Net weight | 9000kg | 9500kg |
