Plywood Wide Belt Heavy Duty Sander Machine
US$ 10000 - 23000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO
Place of Origin:
China
Model Number:
SR13A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
15 days
Related Products
-
Plywood Double Sides Wide Belt Sander MachineUS$ 20000 - 30000MOQ: 1 Set -
Wide Belt Sander Machine One Head Calibrating Sander for PlywoodUS$ 16000 - 29000MOQ: 1 Set
-
Three Heads Wide Belt Calibrate Sander Machine for Makig Plywood/ ChipboardUS$ 12000 - 20000MOQ: 1 Set
-
Wide Belt 3 Heads Calibrating Sander Machine for Making PlywoodUS$ 12000 - 20000MOQ: 1 Set
-
Woodworking Wide Belt Sander Machine for Making PlywoodUS$ 12000 - 20000MOQ: 1 Set
Brand Name
METRO
Place of Origin
China
Model Number
SR13A
Certification
CE, ISO, FDA, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
6500Kgs
Dimension(L*W*H)
2120x2980x2440mm
Condition
New
Voltage
380V/415V/440V and So on
Power(W)
64Kw
Type
Sander
Product Description

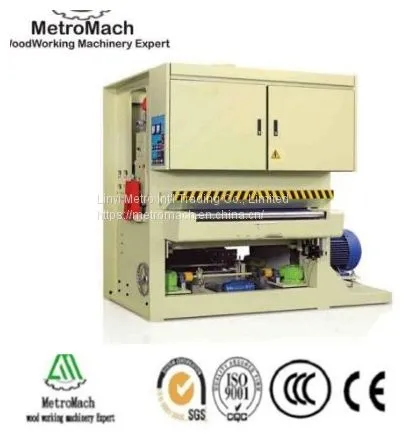

Wide Belt Sanding Machine For Plywood
Main features:The machine frame adopts welding integral structure to improve the machine's rigidity and service life of the machine.
The roller is made of steel and has been Dynamic balance detected precisely,which makes running smoothly and improves the sanding power.
The feeding drive adopts frequency-controller and conveyer belt,that can get high precise thickness.
The beam is strong and reliable ,which supplies a stable sanding precision.
Main technical specifications:
| Model | SR13A |
| Working width | 40-1300mm |
| Working thickness | 3-110mm |
| Working length | ≥750mm |
| Abrasive belt speed | 20m/s |
| Feed speed | 10-70m/min |
| Size of abrasive belt (WxP) | 1330x2615mm |
| Total motor power | 64Kw |
| Main motor | 55Kw |
| Working air pressure | 0.55Mpa |
| Consumption of compressed air | 0.1m3/min |
| Volume of sucked air | 10000m3/h |
| Speed of sucked air | 25-30m/s |
| Overall dimension (LxWxH) | 2120x2980x2440mm |
| Net weight | 6500Kgs |
More Pictures:
