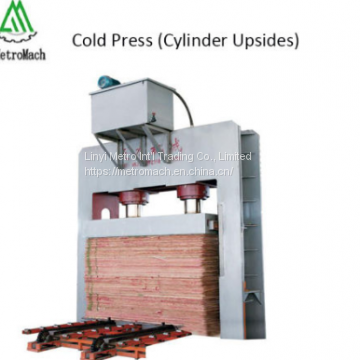

Home > Manufacturing & Processing Machinery > Hydraulic Press > Four-column Hydraulic Press > Pywood Hydraulic Pre Press Cold Press Machine
US$ 10000 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO
Place of Origin:
China
Model Number:
BY814X8/5Z
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plywood Hydraulic 400t Hot Press MachineUS$ 25000 - 40000MOQ: 1 Set -
Plywood Hydraulic 600t Hot Press MachineUS$ 25000 - 40000MOQ: 1 Set
-
Plywood Hydraulic 800t Hot Press MachineUS$ 25000 - 40000MOQ: 1 Set
-
Plywood Hydraulic Pre Press MachineUS$ 15000 - 20000MOQ: 1 Set
-
Woodworking Plywood Hydraulic Hot Press MachineUS$ 20000 - 30000MOQ: 1 Set
Brand Name
METRO
Place of Origin
China
Model Number
BY814X8/5Z
Type
Cold Press
Certification
CE, ISO, FDA
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
19000kg
Dimension(L*W*H)
About 3600X1380X3750mm
Voltage
380V,50Hz
Application
plyboard,flak-board,laminating board.woodbased panel board,furniure
Condition
New
Pressure
400-600t
Main features:
1.The main frame is welded by national standard steel plate,reasonable structure, force points are calculated strictly, high rigidity can endure high pressure, working stable no deformation.
2.Adopt the best quality cylinders and imported hydraulic units ensure long working life.
3.Easy to operate and maintenance.
4.We can design and manufacture according to customer's production demand.
Main technical specifications:
Main technical specifications:
| Machine model | BY815X8/4-IIz |
| Nominal pressure | 5000KN(500TONS) |
| Boards in-feeding direction | Horizontal |
| Max.opening | 1500mm |
| Dimension of working platform | 1380mm x 2700mm |
| Dimeter of plunger cylinders | Ф360mm(Wuxi) |
| Number of plunger cylinders | 2 Pcs |
| Diameter of side helpful cylinders | Ф60mm(Wuxi) |
| Number of side helpful cylinders | 2Pcs |
| Allowed pressure of plunger cylinders | ≤26Mpa |
| Stroke of plunger cylinders | 1000mm |
| Position of plunger cylinders | Upside |
| Pressure of unit plate blank | 12Kgf/cm2 |
| Dimension of the board | 2560mm x 1280mm |
| Allowed pressure | ≤26Mpa |
| Machine net weight | 19000Kgs |
| Control method | Automatic pumping station |
| Thickness of upper and lower crossbeams | 900mm |
| Thickness of steel plate | 40mm |
| Thickness of active crossbeam | 400mm |
| Thickness of steel plate | 20mm |
| Chain and roller transports device | YES |
| Frame structure | Composite frame for loading container |
