Home > Manufacturing & Processing Machinery > Woodworking Machinery > Other Woodworking Machinery > Wood Veneer Roller Conveyor Dryer Machine

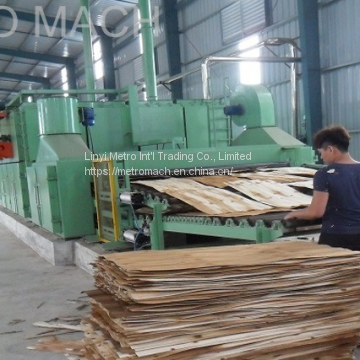

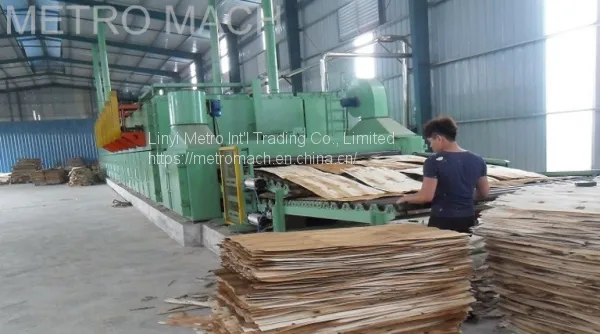

Wood Veneer Roller Conveyor Dryer Machine
US$ 30000 - 40000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Metro
Place of Origin:
China
Model Number:
BG183A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
15 days
Related Products
-
Hydraulic Hot Press Type Small Core Veneer Dryer MachineUS$ 9800 - 11800MOQ: 1 Set -
Plywood Wide Belt Heavy Duty Sander MachineUS$ 10000 - 23000MOQ: 1 Set
-
Particle Board Production Machinery LineUS$ 180000 - 800000MOQ: 1 Set
-
Plywood Double Sides Wide Belt Sander MachineUS$ 20000 - 30000MOQ: 1 Set
-
Wood Panel Board 180 Degree Turnover MachineUS$ 2000 - 4000MOQ: 1 Set
Brand Name
Metro
Place of Origin
China
Model Number
BG183A
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Product Description
Plywood Veneer Dryer Mesh Belt Type Drying Machine
MAIN FEATURES:
1. The machine is usually designed and customized according to user 's requirement (such as veneer size,drying capacity, workshop space ).
2. Mainly used to remove extra moisture from the veneer.
3. The heat medium can be thermal oil or hot steam.
4. Roller gear drive system help keep the dryed veneer smooth and flat.
5. Speed adjustable according to different veneer MC and veneer thickness.
TECHNICAL SPECIFICATIONS:
| Machine model | BG183A |
| Density | 550Kg/m3 |
| Veneer thickness range | 1.5-3.6mm |
| Initial moisture content | 80% |
| Final moisture content | 10% |
| Load ratio | 80% to 85% |
| Woking width | 2650mm |
| Working decks | 3decks |
| Length of heating section | 2000mm x 8 sections |
| Length of cooling section | 2000mm x 1 section |
| Transmission speed | 0-15m per min |
| Drying capacity | 3-4m3 per hour |
| Steam consumption | 2100kg per hour |
| Installation motor power | 107kw |
| Transmission motor power | 4Kw x 3sets |
| Ventilation motor power | 11Kw x 8sets |
| Cooling motor power | 7kw |
| Machine oveall dimension | 23970×5150×4460mm |
| Machine net weight | 60000Kgs |
