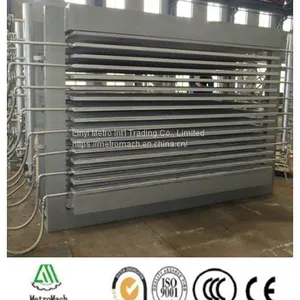

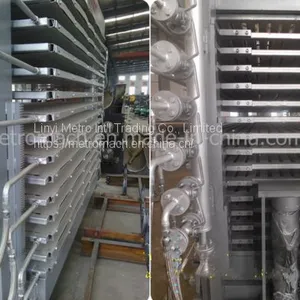

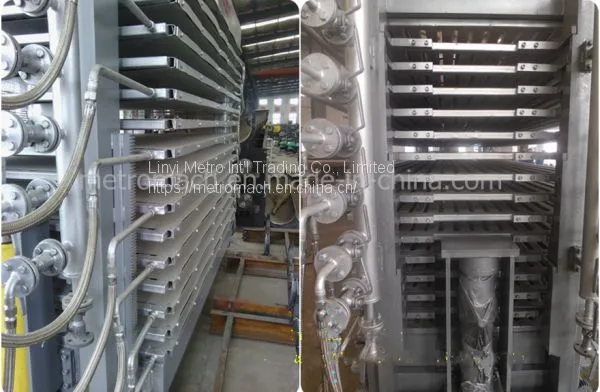

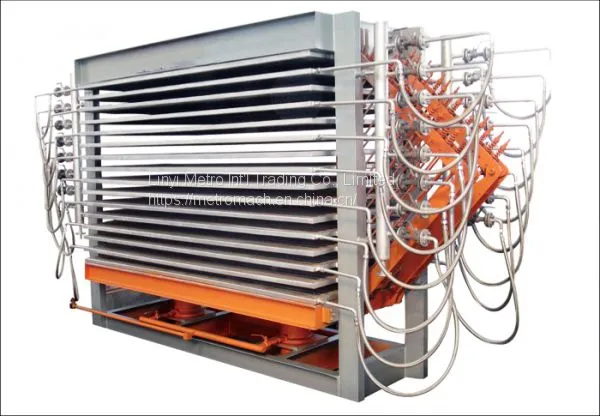

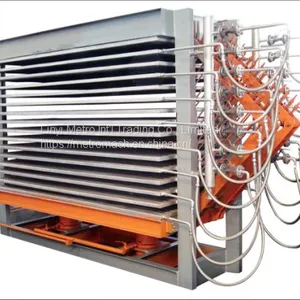

Hydraulic Hot Press Type Small Core Veneer Dryer Machine
US$ 9800 - 11800
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO
Place of Origin:
China
Model Number:
JGBY214x8/10-15a
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wood Veneer Roller Conveyor Dryer MachineUS$ 30000 - 40000MOQ: 1 Set -
Heavy Duty Woodworking Glue Spreader MachineUS$ 5000 - 6000MOQ: 1 Set
-
Automatic Wood Veneer Splicing Machine for Making PlywoodUS$ 23000 - 30000MOQ: 1 Set
-
Wide Belt Sander Machine One Head Calibrating Sander for PlywoodUS$ 16000 - 29000MOQ: 1 Set
-
Three Heads Wide Belt Calibrate Sander Machine for Makig Plywood/ ChipboardUS$ 12000 - 20000MOQ: 1 Set
Brand Name
METRO
Place of Origin
China
Model Number
JGBY214x8/10-15a
Certification
CE, ISO, FDA
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year
Weight
7000KG
Dimension(L*W*H)
4630*1340*2300mm
Condition
New
Power(W)
5.5kw-4P
Type
Other, veneerdryer machine
Veneer drying machine play a very important role in plywood production. The moisture content of final veneer is really critical. Compared with roller dryer, this kind of seamless pipe veneer dryer takes little space and rather low investment cost, it's more applicable for small size core veneers in small plywood machines.
Technical parameters
| Model | JGBY214x8/10-15A |
| Direction of feeding | Horizontal |
| Numbers of daylights | 15 |
| distance between plates | 65mm |
| Platen material | Seamless pipe |
| Size of platen | 2800x1340x38mm |
| Number of cylinders | 2pcs |
| Diameter of cylinders | 180mm |
| Stroke of cylinders | 975mm |
| Pressurization | |
| Empty closing time | 20seconds |
| Low pressure pump flowing | about 140L/min |
| Power | 5.5kw-4P |
| Machine size | 4630x1340x2300mm |
| Machine Weight | about 7000kgs |
