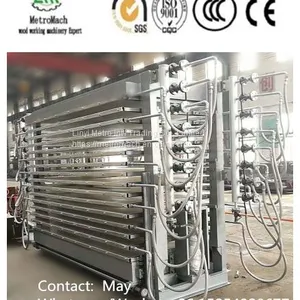

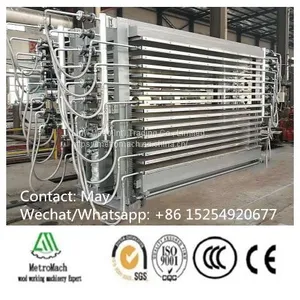

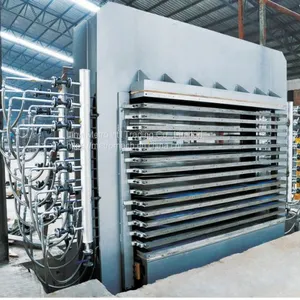

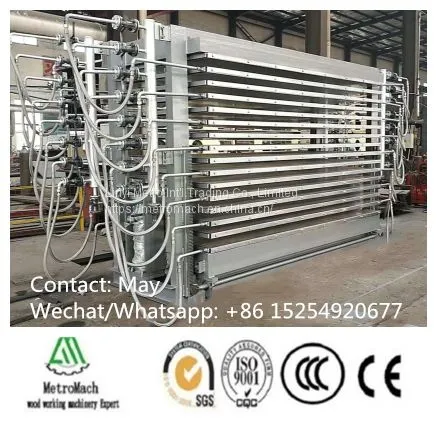

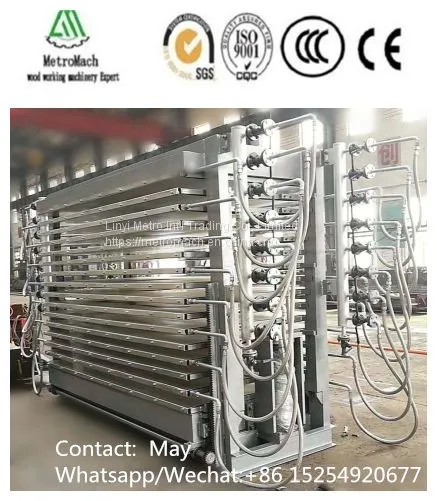

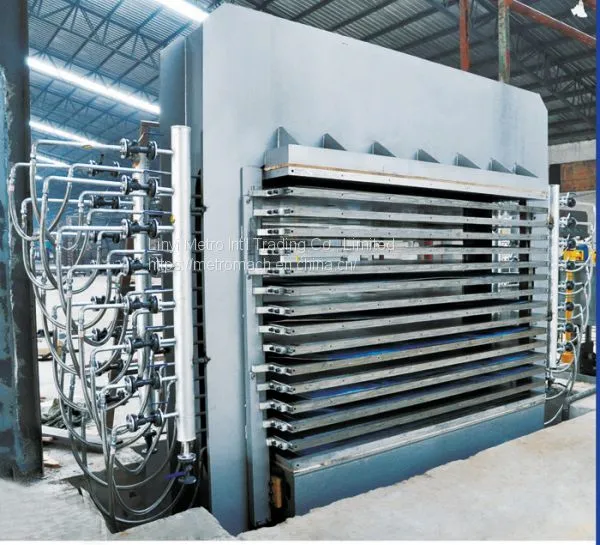

Help CenterPlywood Hydraulic 600t Hot Press Machine
Related Products
-
Plywood Hydraulic 800t Hot Press MachineUS$ 25000 - 40000MOQ: 1 Set -
Plywood Hydraulic Pre Press MachineUS$ 15000 - 20000MOQ: 1 Set
-
Woodworking Plywood Hydraulic Hot Press MachineUS$ 20000 - 30000MOQ: 1 Set
-
Pywood Hydraulic Pre Press Cold Press MachineUS$ 10000 - 15000MOQ: 1 Set
-
Plywood Hydraulic 400t Hot Press MachineUS$ 25000 - 40000MOQ: 1 Set
Plywood Hot Press machine is one of the main equipments in producing plywood,blockboard, film faced plywood, fancy plywood.
1.The main frame is welded by No.1 national standard steel plate,strong body, high rigidity.
2. Adopt micro computer control system and imported hydraulic units, easy to operate,long working life.
3. Adopt advanced hydraulic pump station and plunger cylinders, featured product--aviation technology low noisy hydarulic pump.
4.Hydraulic control system is made by good quality hydraulic units, fast pressure, accurate press, high efficiency.

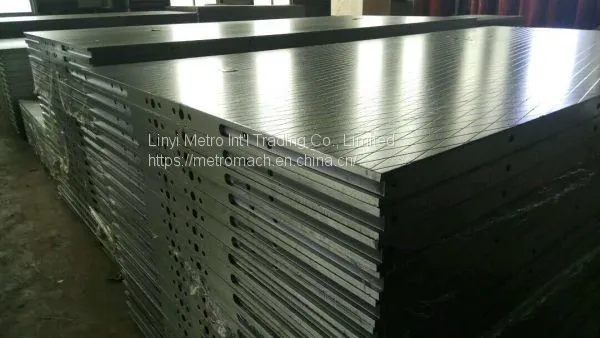

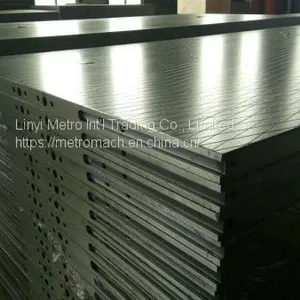

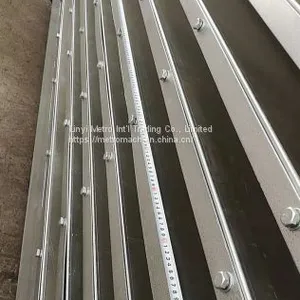

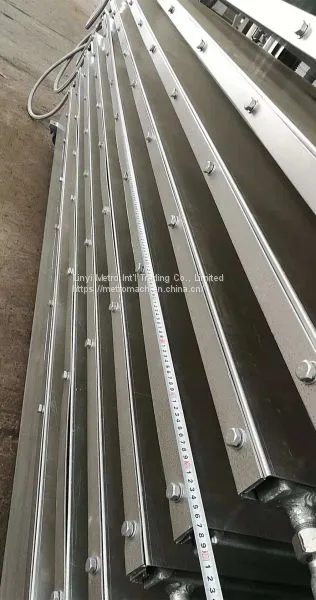

5. All the hot platens are made of the best quality steel plate, after solid drilled and fine polished, good thermal conductivity.
6. It has manual and automatic transfer function to meet user's demand.
Technial Parameters:
1. Various pressure: 400T/500T/600T/800T/1000Ton and more.
2. Plywood sizes: 1220x2440mm, 915x1830mm etc.
| Model | BY214×8/5-15IIZ |
| Nominal gross pressure | 5000 KN |
| Direction of feeding plate | Horizontal |
| Layer Counting | 15 Daylights |
| Distance between hot platens | 100 mm |
| Numbers of hot platens | 16 Pcs |
| Dimension of Hot Platens | 2700mm*1370mm*52 mm |
| Numbers of Cylinder | 2 Pcs |
| Diameter of Cylinder | 360 mm |
| Stroke of Cylinder | 1050 mm |
| Pressurization | Equal or less than 25 Mpa |
| Empty Closing Time | 16 seconds |
| Low Pressure Pump Flowing | 355Lx2/min |
| Allowed Pressure | Equal or less than 5 Mpa |
| Power | 11 kw x 2 |
| High Pressure Pump Flowing | About 35 L per min |
| Power | 7.5 kw |
| Pressure of Unit Plate Blank | 18.3Kgf per cm2 |
| Dimensions of The Board | 2560 mm*1280 mm |
| Overall Dimensions | 3590 mm* 1370 mm*4570 mm |
| Machine Weight | 42000 Kgs |
| Control Method | Automatic Pump Station |
| Frame Pattern | Composite frame |
| Thickness of Upper And Lower Crossbeams | 1000mm,900mm |
| Thickness of Frame Steel Plate | 40 mm |
