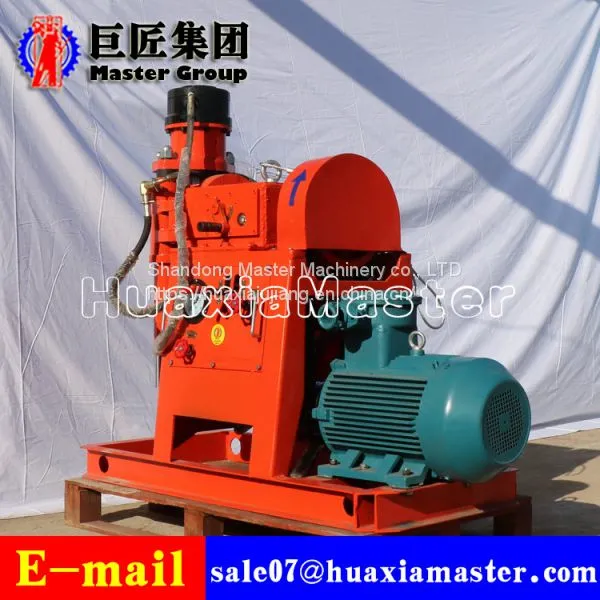

1.The brief introduction of ZDY-1600S double pump full hydraulic tunnel drilling rig for coal mines
ZDY1600S full hydraulic tunnel drilling machine is a full hydraulic power head mechanism, which is divided into three main parts, main engine, pump station and control table. It has good disintegration, easy removal and flexible arrangement; mechanical unload drilling tools, chuck, clamp and oil cylinder, revolving device and gripper can operate in linkage, high automation, high efficiency, easy operation and low labor intensity.
The ZDY1600S full hydraulic tunnel drill adopts double pump system, the rotation parameters and the input parameters are independently mediated, which improves the adaptability of the drilling machine to various drilling technology; it is convenient to save force by adjusting the inclination angle of the fuselage with the support oil cylinder; the rotary device adopts the through hole structure, the length of the drill pipe is not limited to the process, the control table is concentrated operation The worker can operate in a long distance, so it’s good flexibility and high safety.
2.The technical parameter of ZDY-1600S double pump full hydraulic tunnel drilling rig for coal mine
Project |
Unit |
Parameter |
Maximum borehole depth |
m |
250/80 |
Aperture diameter |
mm |
113/128 |
Diameter of the end hole |
mm |
150/200 |
Drill pipe diameter |
mm |
63.5/73 |
Borehole dip angle |
° |
0-±90 |
Output torque |
n.m |
900-1600 |
Normal propulsion speed |
m/s |
0-0.2 |
The applicability of the strength coefficient of coal and rock |
f≦10 |
|
Mainframe size |
mm |
2300*950*1500 |
The weight of the whole machine (excluding the drill rod) |
kg |
1900 |
Host weight |
kg |
|
Motor power |
kw |
30 |
