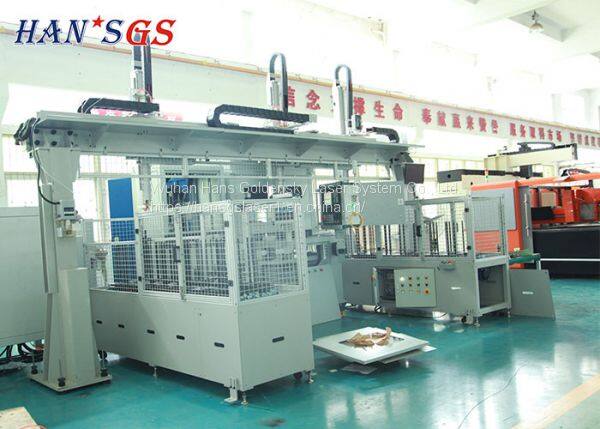

Laser Welding Machine for Stainless Steel and Aluminum
USD $50000 - $250000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- wuhan
- T/T
- 30 days
You May Like
- Multi-usage co2 laser marking machine engrave non-materials arts and gifts food package product date code marking plastic switch
- Automatic laser welding machine no welding penetration continuous welding widely used in sanitary battery glasses hardware
- Fast and high efficiency fiber laser marking machine used in marking rings bracelets mugs watches sanitary ware IC keyboard etc
- mechanical tools cutting machine for Acrylic/wood CO2 laser cutting machine 1390 laser cutting machine
- wholesale distributors wanted laser wood cutting machine price fabric laser cutting machine laser cutting machine price
- desktop cnc machine | LED channel letters welding machine | robotic LOGO welding machine price
Product Details
Brand Name: | HANS GS | Place of Origin: | China | Model Number: | GS-HC03 |
Certification: | CE, GS, ISO, SGS | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 2 |
Usage: | automobile, tools, home appliance, steel industry and others | Condition: | New | Power(W): | 4kw |
Max. Output Power: | 3000W | Focal Spot Diameter: | Φ40 - Φ130 mm | Wavelength: | 10.6 um |
Pulse Width: | 1 mm |
Product Description
Product Description
Welding for saw blade of diamond
Material:28CrMnPower:1500~2000W
Speed:0.7~1m/min,Fusion depth of welding:1.5~2.8mm
Laser welding application

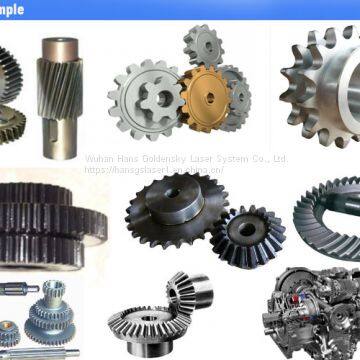

Laser welding is mainly used in automobile, tools, home appliance, steel industry and others, for example nest gear of transmission, flying wheel, airbag, rock arm, muffler, silicon oil shock absorber, hydraulic torque
converter, wood saw blade, diamond saw blade, radiator of water
CO2 Laser Welding Technique
Welding depth(mm) | Laser Power(W) | Welding line speed(m/min) |
2.5 | 2000-2500 | 1.6 |
3.0 | 2300-2500 | 1.5 |
3.5 | 2500-2800 | 1.4 |
4.0 | 2800-3000 | 1.3 |
4.5 | 3000-3200 | 1-1.2 |
Remark: transmission gears can be welded twice to reduce deformation |
Technical parameter of fiber laser welding
Welding depth (mm) | 0.5 | 0.8 | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 5 |
Welding power (kw) | 0.5 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 2.0 | 2.5 | 3.0 | 2.5 | 3.0 | 3.0 |
Welding speed (m/min) | 0.8 | 0.5 | 1.3 | 2.5 | 4.5 | 2.0 | 3.0 | 3.2 | 1.6 | 2.0 | 2.4 | 2.0 | 2.4 | 1 |
Note:After welding of stainless steel material, welding seam the mechanics indexes are reaching or higher than the parent material properties, and the weld forming looks good, no macroscopic defects porosity, cracks appear |
Quality Guarantee System:
1.The integral design will be accomplished by us within 20 days after the contract assignment.
2.Procurement of components and manufacturing of casting piece will be priory to ensure the delivery time.
3.With ISO 9001 quality system request, we'll keep the coordination and restrict standard in all
manufacturing process including rigid inspection for raw material selection and procurement. Also the
manufacturing process is under inspection and control to prevent the unqualified product flow into next
manufacturing step so as to ensure the delivery time and quality of all our products delivered.
4.Inspection of our design, manufacturing, assembly, test and installation by customer is welcome at
anytime, and we will always offer our cooperation.
Han's Goldensky is the High power laser expert in China
Wuhan"Optics Valley"Core enterprise
Founded in 1998;Registered capital is $13 million, Total assets is $24.6 million

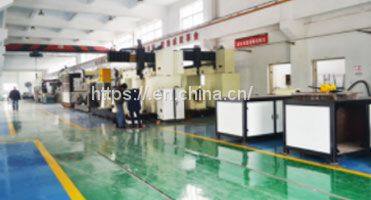

Han's Goldensky Science and technology park, the first phase of construction is 20000 square meters
Three products are included in The National
Torch Plans Key projects list
Service Commitment
1. Pre-sale Service1)Welcome to send your sample to our company for testing. We will supply testing report with video and photos
together for your consider. And find the best solution way for your products.
2) Welcome your special requirement of machine also, we are ready for provide all kinds of professional
programs and auxiliary equipment to meet your demand as much as possible.
3) Our best hope is that welcome to visit our company!
2 In-sale service
1) We can supply engineer go to your country to help you install machine and do training after-service together.
This is the optional service item. And welcome your engineer come to our company learn how to operate
machine also. It is free.
3 After-Sale Service
1) Our after-sale network is all over the world which will provide the comprehensive after-sale service to our
customer.
2) Our commitment is as follow:
3) One year guarantee for the whole equipment.
4) We will answer your questions within 24hours.
5) When Equipment warranty expires, lifelong maintenance services will be provided.
6) After the expiry of the warranty we will offer a wide range of software support with free upgrade fro lifelong.
Contact Us
- Wuhan Hans Goldensky Laser System Co., Ltd.
- Contact nameJessie
- Phone86-187-17170727
- AddressNo.72,Optical valley Avenue, East Lake High-Tech Development Zone,Wuhan. Wuhan,Hubei
