China Laser Perforating Machine Manufacturer /Laser Perforation Machine Price
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HANS GS
Place of Origin:
China
Model Number:
2
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
30 days
Related Products
-
GS-DKJ02 Plastic Film Laser Perforating Complete Sets of EquipmentUS$ 50000 - 250000MOQ: 1 Piece -
Tipping Paper Laser Perforating MachineNegotiableMOQ: 1 Set
-
High Speed Laser Perforating Machine of Tipping PaperNegotiableMOQ: 1 Set
-
GS-BDHJ2000 Plate Joint Laser Welding MachineUS$ 50000 - 250000MOQ: 1 Piece
-
New Design CNC Sheet Metal Lampshade Laser Cutting Machine For LightingsUS$ 50000 - 250000MOQ: 1 Piece
Brand Name
HANS GS
Place of Origin
China
Model Number
2
Certification
CE, ISO, SGS
After-sales Service Provided
Engineers available to service machinery overseas
CNC or Not
Yes
Applicable Material
Paper
Laser Type
Semiconductor

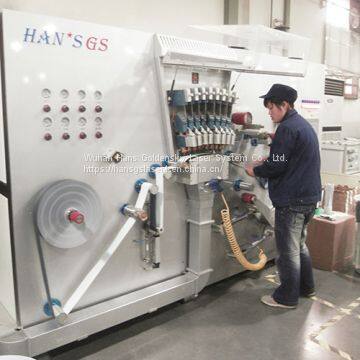

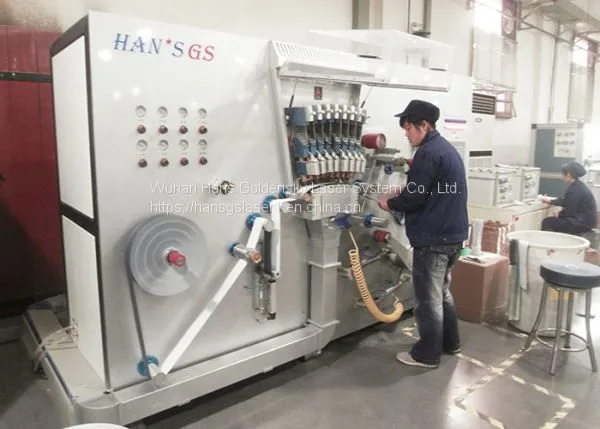

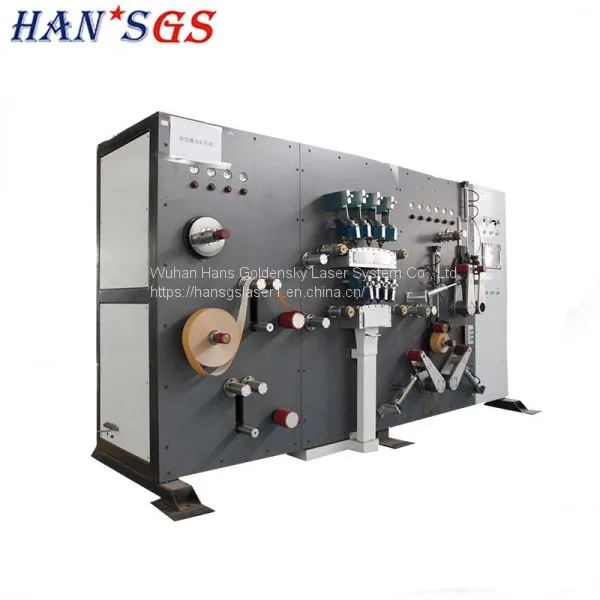

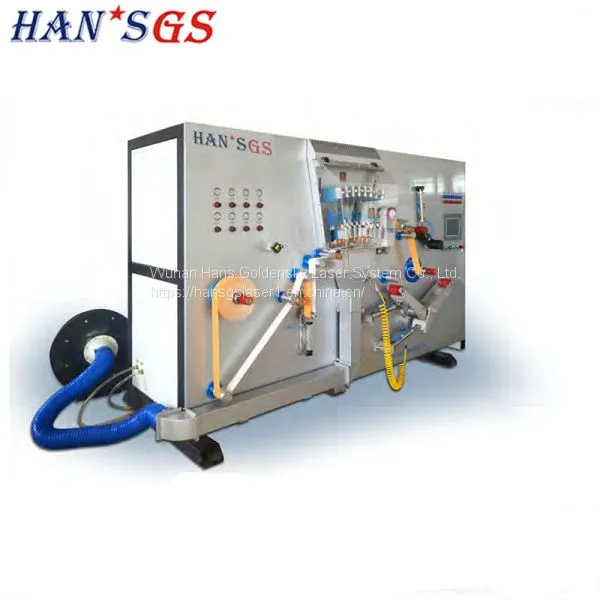

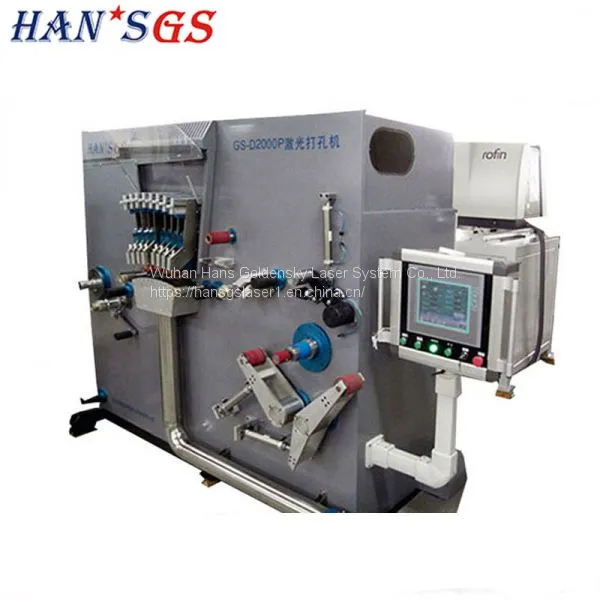

HANS*GS-D400P cigarette tipping paper laser perforating machine is mainly composed of five parts : laser generator, optical splitting system, control system, form feeding system, water -chilling unit ( optional accessory: zero meter mechanism).
General performance and parameters of HANS*GS-D400P perforating machine
Principal Performance Parameters of OEM40iX laser generator
1.Regarding OEM40iX laser generator, the operation is very simple, using the menu selection type, you can set and select power output, frequency, beam pattern directly in the control box of laser generator.

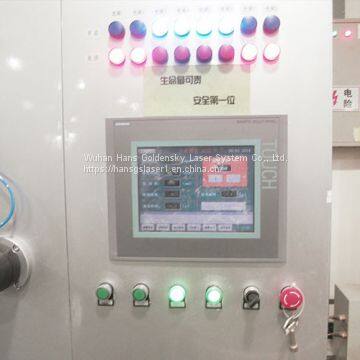

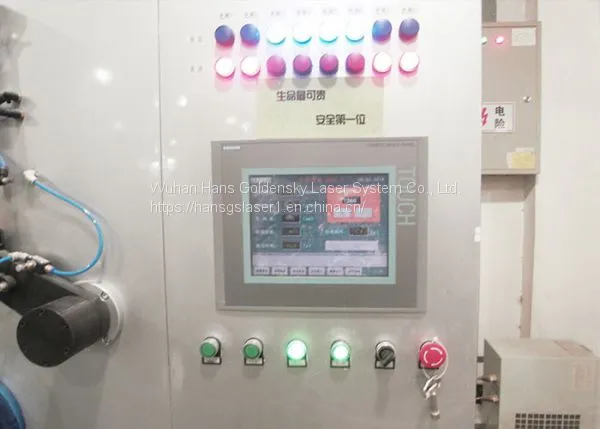

2.Owning to the connection between the laser generator and PLC of control cabinet, PLC can be responsible to start the generator, stop the generator, have interlocking control, and debug according to the received operation signals. When the generator or exterior circuit meets with the faults, you can stop the generator in time and on the touch screen, it will show the faults reason and positions.
3.Only when the generator can satisfy the certain condition of interlocking, you can start it, in this way, even if it occurs to the mistake operation, it won't destroy the laser generator or other parts of equipment.
Form feeding system
HANS*GS-D400P laser perforating machine selects Germany SIEMENS servo system to control the form
feeding system, due to SIEMENS servo system with strong calculation ability, rapid speed, high control precision, it has interior roll diameter automatic calculation function, and can ensure that the speed of form feeding is constant and the surface is kept neat.
Water -chilling unit
The water -chilling unit is researched and developed by ourselves, and it's a professional water-chilling system, and equips 3 refrigerators, water tank of stainless steel with 300L capacity. It can control the water temperature and flow at real time and has warning equipment, its water is purified water, with filter. The water temperature keeps at 20±0.5ºC constantly.
General performance and parameters of HANS*GS-D400P perforating machine
| Laser power | 400W |
| PLC control type | closed-loop |
| Controller | Germany SIEMENS servo system |
| Form feeding control | Biaxial linkage control |
| Indicator setting method | Independent, simple |
| Spectrophotometric method | by polygon prism |
| Permeability range | 100-2000cu |
| Permeability instability | Less than 5% (relative error) |
| Maximum perforating speed | 1920 thousand /min |
| Maximum perforating density | 4pcs/mm |
| Minimum perforating density | 1pc/10mm |
| Hole diameter range | 0.05-0.25mm |
| Hole shape | oval or round |
| Hole quality | neat, without deckle edge or coking |
| Maximum feeding speed | 650m/ min |
| perforating row number | 2-8 rows |
| Acceleration time (0-300m/min) | 3sec. |
| Total system power | 35KW |
| Width range of processing tipping paper tray | 40-80mm |
| Maximum processing winding tray diameter | 520mm |
| After perforate tipping paper tray, the front-end non-porous paper length and tail length of waste paper(feeding speed is 300m/min) | 15M(front),2M(tail) |
| Environment requirments | 20-30ºC Constant temperature |
| Machine lifetime | 10 years |
| Chilling water hardness | 250mg/L |
| Gas consumption of laser head | 2.8L/min |
| Temperature of cooling machine, adjusting range | 10-30ºC |
| About the cooling machine temperature and adjusting precision, is there monitor display ? | Yes, the adjusting precision is ±0.1ºC. |
| Chilling water flow speed | 25L/MIN |
| Water storage capacity of chiller | 0.3M3 |
| Item | Power | Stability | Peak power | Diameter of beam | Beam quality factor | Divergence angle |
Frequency | Power feedback |
| OEM40iX | 20- 400W | 1000W | 12.4±1mm | K>0.8 | 2mrad | 0-130Hz | With |
2.Owning to the connection between the laser generator and PLC of control cabinet, PLC can be responsible to start the generator, stop the generator, have interlocking control, and debug according to the received operation signals. When the generator or exterior circuit meets with the faults, you can stop the generator in time and on the touch screen, it will show the faults reason and positions.
3.Only when the generator can satisfy the certain condition of interlocking, you can start it, in this way, even if it occurs to the mistake operation, it won't destroy the laser generator or other parts of equipment.
Form feeding system
HANS*GS-D400P laser perforating machine selects Germany SIEMENS servo system to control the form
feeding system, due to SIEMENS servo system with strong calculation ability, rapid speed, high control precision, it has interior roll diameter automatic calculation function, and can ensure that the speed of form feeding is constant and the surface is kept neat.
Water -chilling unit
The water -chilling unit is researched and developed by ourselves, and it's a professional water-chilling system, and equips 3 refrigerators, water tank of stainless steel with 300L capacity. It can control the water temperature and flow at real time and has warning equipment, its water is purified water, with filter. The water temperature keeps at 20±0.5ºC constantly.
2 specific picture
5 Packaging
6 factory overviews
