Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Heat Exchanger Plate Laser Welding Process, Laser Welding Machine Wholesale Manufacturers

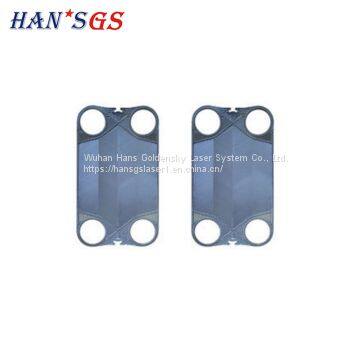

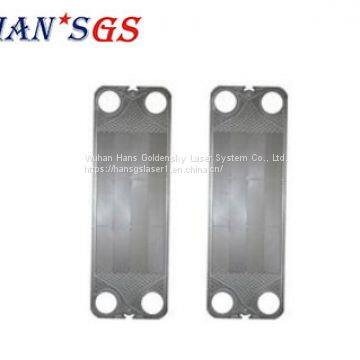

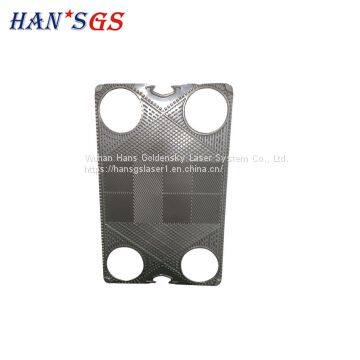

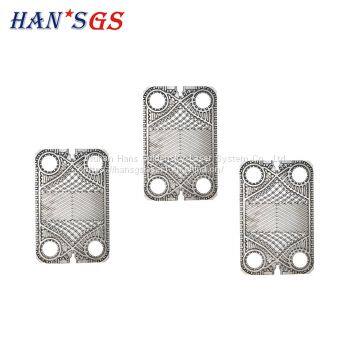

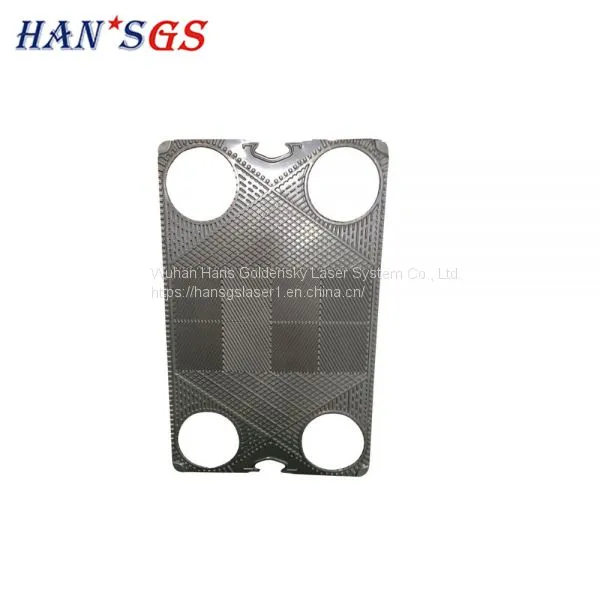

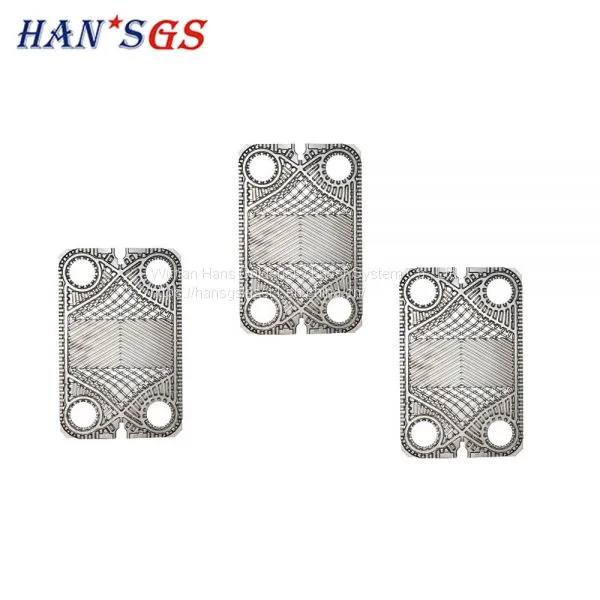

Heat Exchanger Plate Laser Welding Process, Laser Welding Machine Wholesale Manufacturers
US$ 50000 - 250000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HANS GS
Place of Origin:
China
Model Number:
GS-HC03
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
30 days
Related Products
-
Laser Welding Machine for Muffler, AirbagUS$ 50000 - 250000MOQ: 1 Piece -
Laser Welding Machine for Stainless Steel and AluminumUS$ 50000 - 250000MOQ: 1 Piece
-
Automatic Laser Welding Machine For Sealing Parts & Aluminum Battery BoxUS$ 50000 - 250000MOQ: 1 Piece
-
GS-BDHJ2000 Plate Joint Laser Welding MachineUS$ 50000 - 250000MOQ: 1 Piece
-
Automatic CNC Laser Welding Machine Price for SaleUS$ 50000 - 250000MOQ: 1 Set
Brand Name
HANS GS
Place of Origin
China
Model Number
GS-HC03
Certification
CE, ISO, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
2
Condition
New
Power(W)
300 - 3000W
Dimensions
20 - 25 mm
Max. Output Power
3000W
Focal Spot Diameter
Φ35 mm
Pulse Width
1 mm
Product Description
GS-HHR10015-3500 laser welding machine is mainly composed of high-power Rofin-DC035 laser, water cooling unit, welding host, numerical control system, external light path system, two-end clamping mechanism, two-stage conveying platform, pressure feeding device, protective gas unit, etc. composition. The control system can realize integrated control of welding machine tools, lasers, water-cooling units, and protective gas units. The parameters can be adjusted conveniently, displayed centrally, and have strong anti-interference ability. The software and hardware configuration of the entire system is reasonable, the operation is stable and reliable, and its durability is long. The protection of the laser to the equipment meets the requirements for the safety of the operators' lives.
Laser: |
Rofin-DC035 |
Water cooling unit: |
LSJR-600BX |
External light system: |
Φ60 optical path |
Focusing system: |
F=250 |
Laser welding machine: |
GS-HHR10015 type |
X-axis components: |
Stroke 2000mm |
Y axis component: |
Travel 150mm |
Z axis component: |
Travel 150mm |
Clipping device: |
Stroke 10000mm |
Transportation platform: |
12000mm*2000mm |
Gantry pressing mechanism: |
Cylinder stroke 100mm |
Welding lifting platform: |
Cylinder stroke 50mm |
Lateral positioning device: |
Cylinder stroke 100mm |
CNC system: |
SIEMENS 828D |
