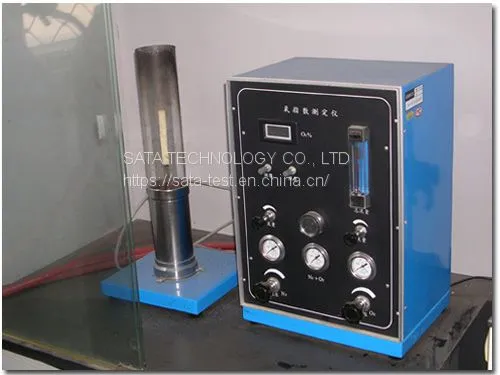

ST-7605 Oxygen Index Tester
Standards: According to BS 2782, ASTM D 2863, ISO4589-1, ISO 4589-2, GB/T2406.1-2008, GB/T2406.2-2009, GB/T8815-2008, and GB/T5454 etc.
Used range: Applied to determine flammability performance for plastics, rubbers, fibers, cellular plastics and textiles. It namely the lowest oxygen percent rate to sustain products burning.
Technical parameters:
1. Direct read oxygen value and nitrogen levels by flow-meter
2. Measurement range: 0-80%, resolution: 0.1L/min
3. Measurement accuracy: 2.5 class
4. Burner tube inside diameter: 75mm
5. Velocity of flow for gas: 40mm±10mm/s
6. Input voltage: 0.2- 0.3Mpa
7. Working pressure: 0.05-0.15Mpa
8. Propane (butane) ignition system: the length of flame is 5mm-60mm, can be adjustable automatically
9. Burning gas: Specified oxygen of GB3863, specified nitrogen of GB3864
