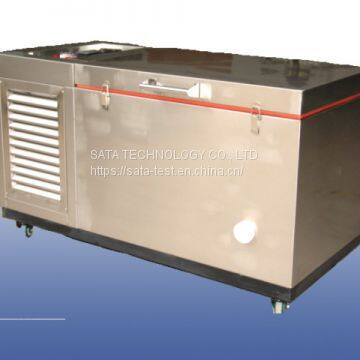

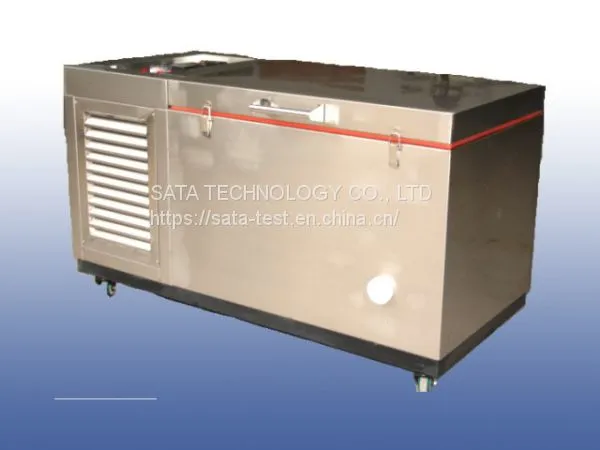

ST-9601 Lower Temperature Test Chamber

ST-9601 Lower Temperature Test Chamber thumbnail-1
ST-9601 Lower Temperature Test Chamber thumbnail-2
ST-9601 Lower Temperature Test Chamber photo-1
ST-9601 Lower Temperature Test Chamber photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2006
Overseas Office:
Yes
Contact Supplier Request Quote Chat Now
Sata Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

ST-9601 Series Low Temperature Chamber

Standard: In accordance with GB/T 2951.4, UL1581, IEC 60811-1-4 standards requirements.

Range: This machine applies to low temperature test, for wires & cables & accessories and other products. Cooperate with low temperature impact, low temperature twist and low temperature elongation test.

Technology parameters:

1. Temperature range:

ST-9601A: Room temperature to -40℃

ST9601B: Room Temperature to -70℃

2. Temperature uniformity: ≤2℃

3. Reduced to room temperature time: ≤80min(non load)

4. Work room size: W600×D600×H700mm

5. Availability working volume: 210L

6. Power supply: AC 220V±5%, 50Hz

7. Input power: -40℃/2kW, additional heating: 750W

8. P.I.D digital control thermometer

9. Timer: 0.01~99.99s/min/h, continuously adjustable

10. France original compressor

11. Housing: Japan SUB304 stainless steel

12. Exterior size: W1350×D680×H1150mm

 Note: This can chamber can be use along with the Low Temperature  Roller Device or Impact testing device or the other test for Wire and Cable.
