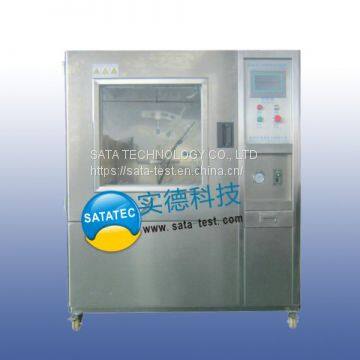

ST-9611 Splash Water Protection Test Chamber

ST-9611 Splash Water Protection Test Chamber

Standards: According to GB4208-93, GB10485, IEC60529-2001Degreees of protection provided by enclosures (IPX3,IPX4 and IPX4K) and reference ISO 20653.

Main technical parameters:

1.   Work room size:L900*D900*H900mm;    Chamber size: L1350*D1080*H1760 mm

2.   Material of Chamber: Inside layer of SUS304 stainless steel, and outside layer is steel with spray

3.   Oscillating tube: R400mm of 2barts, one for IPX3 and IPX4, another one for IPX4K

4.   Material of tube: #304 Stainless steel(ID is 16mm)

5.   Falling drops diameter: Φ0.4mm

6.   Angle of spray nozzle: 120^o for IPX3, and 180^o for IPX4

7.   Angles of IPX3 and IPX4 exchange: When IPX3 for testing, jam bother end needle nozzle.

8.     Rotation angle: 120^o for IPX3 and 360o for IPX4

9.   Rainfall: 0-10L/min can be adjusted.

10.    Swing speed: a) IPX3 is 2X120^o and time is 4s;

    b) IPX4  is （2X180o）and time is 12s

11.   Test time: 0~9999min as need to preset

12.   End the test, dewatering the tube automatically

13.   Material of device: 304 Stainless steel

14.   Control functions: Swing the tube for spray water, spray water and test time etc.

15.   Follow rate control:  Via the follow meter and knob to preset and control

16.   Safety protection device:

a)      Water shortage protection

b)      Overload protection

c)      Leakage current protection

d)      Fast fuse protection

e)      Timing protection

17.   Power supply: 380V/AC, 50Hz+N+G, 5kW

18.    Diameter of rotation table: Ø400mm and load weight about 40kg

19.   Rotation speed: 1r/min, also of 360o/min rotation and made of stainless steel.

20.   Up and down height of rotation disk is 400-650mm.
