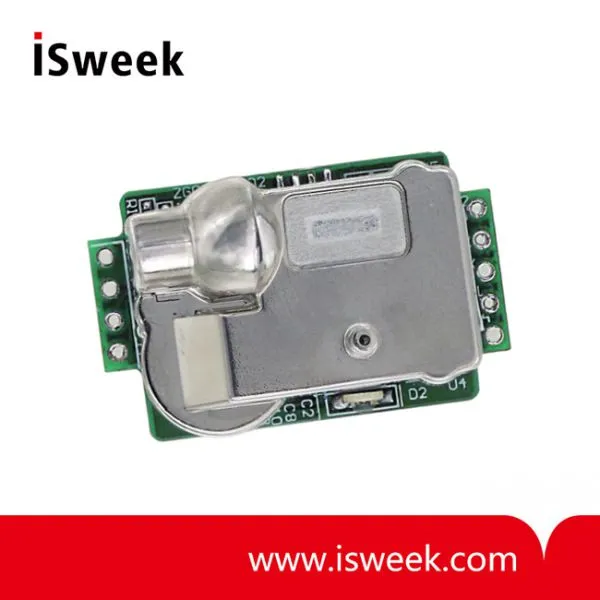

ZG09 High-Reliability NDIR CO2 Sensor Module for IAQ, Greenhouse, HVAC
US$ 0.01 - 0.1
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZyAura
Place of Origin:
Taiwan, China
Model Number:
ZG09
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SO2-AF Sulfur Dioxide Sensor (SO2 Sensor)US$ 40 - 80MOQ: 1 Piece -
H2S-AH High Sensitivity Hydrogen Sulfide Sensor (H2S Sensor)US$ 40 - 80MOQ: 1 Piece
-
ZG07 Series NDIR CO2 Sensor Module for IAQ, Greenhouse, HVAC, DCVUS$ 0.001 - 0.01MOQ: 1 Piece
-
SO2-AE High Concentration Sulfur Dioxide Sensor (SO2 Sensor)US$ 60 - 80MOQ: 1 Piece
-
NO-A1 Nitric Oxide Sensor (NO Sensor)US$ 60 - 80MOQ: 1 Piece
Brand Name
ZyAura
Place of Origin
Taiwan, China
Model Number
ZG09
Usage
Gas Sensor
Theory
Other, NDIR Gas Sensor
High-Reliability CO2 Module For Various Applications IAQ, Greenhouse, HVAC
• Use Dual Beam NDIR technology to improve the long term stability
• Cost - effective CO2 monitors made with IR-SOC technology
• Small Module for OEM
ZG09 High-Reliability CO2 Sensor Module Application:
• IAQ (Indoor air quality)
• Greenhouse
• HVAC.DCV (Demand Control Ventilation)
ZG09 High-Reliability CO2 Sensor Module Specification
| Method - Dual Beam NDIR | |
| Sample Method |
Diffusion or flow through (50~200ml/min) |
| Operating conditions |
0~50°C (32~122°F), 0-95% RH, non-condensing |
| Storage conditions |
-20~60°C (-4~140°F), 0-95% RH, non-condensing |
| Performance - CO2 Channel | |
| Measurement Range |
0~10,000ppm/1.0% |
| CO2 Accuracy |
±50ppm ±3% of reading |
| Repeatibility |
±20ppm |
| Resolution |
1ppm |
| Pressure Dependence |
0.13% of reading per mm Hg |
| Response Time |
About 1 min |
| Warm Up Time |
30 sec. @ 25°C |
| Power Supply and Output | |
| Power Supply |
5.0 VDC ±0.5 supply, Ripple and Noise (mVp-p) 200 |
| Power Consumption |
Max. (0.8 ms shot capture) |
| Output Interface |
9pin Connector, Space=2.54mm |
| Digital Output |
UART, I2C, PWM, DAC |
