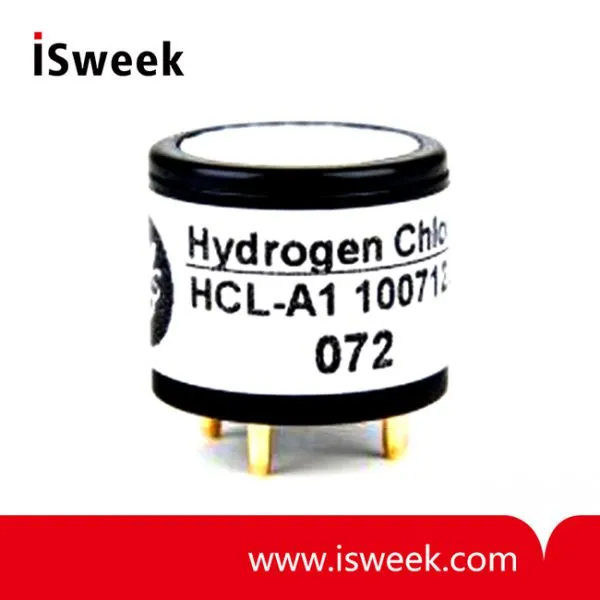

HCL-A1 Hydrogen Chloride Sensor (HCL Sensor)
US$ 40 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
HCL-A1
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CH-D3 Miniature Size Combustible Gas PellistorUS$ 40 - 120MOQ: 1 Piece -
ETO-A1 Ethylene Oxide Sensor (ETO Sensor)US$ 40 - 120MOQ: 1 Piece
-
SOH-A2 Sulfur Dioxide + Hydrogen Sulfide Sensor (SO2 + H2S Sensor)US$ 80 - 120MOQ: 1 Piece
-
DSM501B Dust Sensor Module for Air Quality MonitorUS$ 0.001 - 0.01MOQ: 1 Piece
-
NO-B1 Nitric Oxide Sensor (NO Sensor)US$ 60 - 100MOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
HCL-A1
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
HCL-A1 Hydrogen Chloride Sensor HCL Sensor Description
Alphasense is expanding its line of electrochemical Toxic Gas Sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.
Hydrogen Chloride (HCl)/Hydrogen Bromide (HBr)
The HCL sensor also detects Hydrogen Bromide (HBr). These HCL sensors are zero biased for easier use.
Available in A and B series.
HCL-A1 Hydrogen Chloride Sensor HCL Sensor Schematic Diagram
| HCL-A1 Hydrogen Chloride Sensor HCL Sensor PERFORMANCE | ||
| Sensitivity |
nA/ppm in 25ppm HCl |
80 to 130 |
| Response time |
t90 (s) from zero to 25ppm HCl |
|
| Zero current |
ppm equivalent in zero air |
|
| Resolution |
RMS noise (ppm equivalent) |
|
| Range |
ppm HCl limit of performance warranty |
100 |
| Linearity |
ppm error at full scale, linear at zero, 40ppm HCl |
0 to 6 |
| Overgas limit |
maximum ppm for stable response to gas pulse |
200 |
| HCL-A1 Hydrogen Chloride Sensor HCL Sensor LIFETIME | ||
| Zero drift |
ppm equivalent change/year in lab air |
nd |
| Sensitivity drift |
% change/year in lab air, monthly test |
nd |
| Operating life |
months until 80% original signal (12 month warranted) |
nd |
| HCL-A1 Hydrogen Chloride Sensor HCL Sensor ENVIRONMENTAL | ||
| Sensitivity @ -20°C |
% (output @ -20°C/output @ 20°C) @ 25ppm HCl |
65 to 90 |
| Sensitivity @ 50°C |
% (output @ 50°C/output @ 20°C) @ 25ppm HCl |
102 to 120 |
| Zero @ -20°C |
ppm equivalent change from 20°C |
|
| Zero @ 50°C |
ppm equivalent change from 20°C |
|
| HCL-A1 Hydrogen Chloride Sensor HCL Sensor CROSS SENSITIVITY | ||
| H2S sensitivity |
% measured gas @ ppm H2S |
|
| NO2 sensitivity |
% measured gas @ ppm NO2 |
|
| Cl2 sensitivity |
% measured gas @ ppm Cl2 |
|
| NO sensitivity |
% measured gas @ ppm NO |
|
| SO2 sensitivity |
% measured gas @ ppm SO2 |
|
| CO sensitivity |
% measured gas @ ppm CO |
|
| H2 sensitivity |
% measured gas @ ppm H2 |
|
| C2H4 sensitivity |
% measured gas @ ppm C2H4 |
|
| NH3 sensitivity |
% measured gas @ ppm NH3 |
|
| CO2 sensitivity |
% measured gas @ 5% CO2 |
|
| HCL-A1 Hydrogen Chloride Sensor HCL Sensor KEY SPECIFICATIONS | ||
| Temperature range |
°C |
-30 to +50 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous |
15 to 90 |
| Storage period |
months @ 3 to 20°C (stored in original container) |
6 |
| Load resistor |
Ω (recommended) |
10 to 33 |
| Bias voltage |
mV |
not required |
| Weight |
g |
|
Matched Transmitter board for HCL-A1 HCL Sensor
4-20mA Digital Transmitter Board
• Factory calibration, custom-set for immediate use
• Digital zero, sensitivity and temperature compensation
• Digital and 4-20mA output
• Biased or unbiased operation
• Calibration and range change
