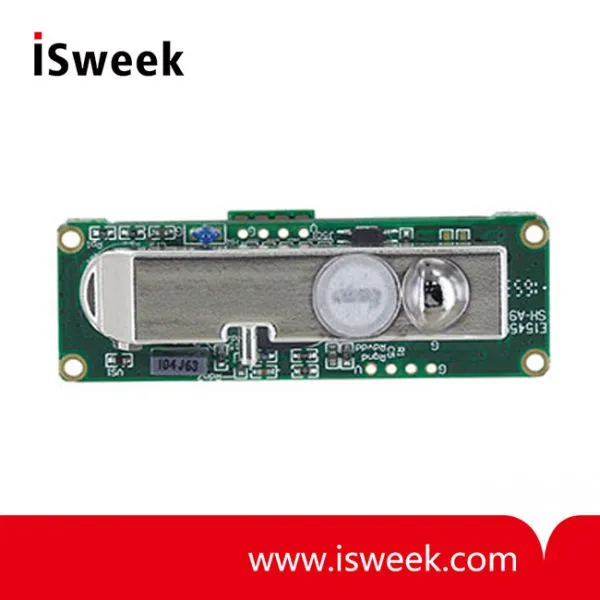

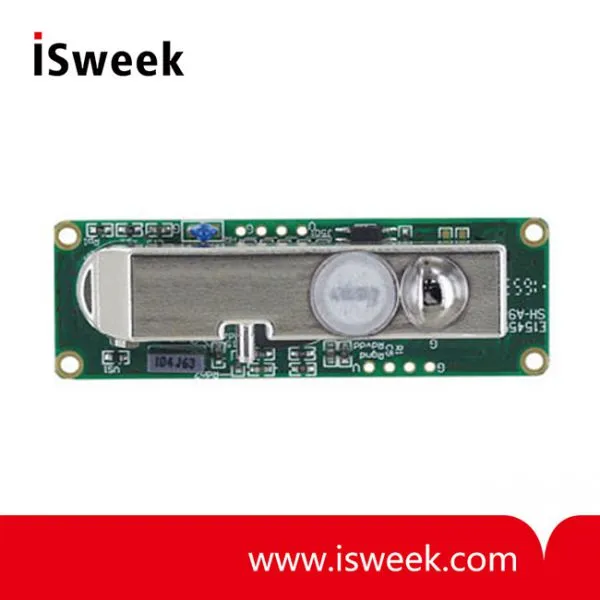

ZG07 Series NDIR CO2 Sensor Module for IAQ, Greenhouse, HVAC, DCV
US$ 0.001 - 0.01
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
ZyAura
Place of Origin:
Taiwan, China
Model Number:
ZG07 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SO2-AE High Concentration Sulfur Dioxide Sensor (SO2 Sensor)US$ 60 - 80MOQ: 1 Piece -
NO-A1 Nitric Oxide Sensor (NO Sensor)US$ 60 - 80MOQ: 1 Piece
-
H2S-AE High Concentration Hydrogen Sulfide Sensor (H2S Sensor)US$ 40 - 80MOQ: 1 Piece
-
CO-BX Low Hydrogen Cross Sensitivity Carbon Monoxide Sensor CO SensorUS$ 40 - 80MOQ: 1 Piece
-
HCN-A1 Hydrogen Cyanide Sensor (HCN Sensor)US$ 50 - 100MOQ: 1 Piece
Brand Name
ZyAura
Place of Origin
Taiwan, China
Model Number
ZG07 Series
Usage
Gas Sensor
Theory
Other, NDIR Gas Sensor
ZG Module - ZG07 series NDIR CO2 Sensor
• Use Dual Beam NDIR technology to improve the long term stability
• Cost - effective CO2 monitors made with IR-SOC technology
• CO2+Temp.+RH (ZG07R)
• Small Module for OEM
ZG07 series NDIR CO2 Sensor Module Application:
• IAQ (Indoor air quality)
• Greenhouse
• HVAC.DCV (Demand Control Ventilation)
ZG07 series NDIR CO2 Sensor Module Specifications
| Method - Dual Beam NDIR | |||
| Sample Method |
Diffusion or flow through (50~200ml/min) |
||
| Operating conditions |
0~50°C (32~122°F), 0-95% RH, non-condensing |
||
| Storage conditions |
-20~60°C (-4~140°F), 0-95% RH, non-condensing |
||
| Performance - CO2 Channel | |||
| ZG07 |
ZG07-M |
ZG07R |
|
| CO2 range (ppm) |
0-3,000 |
0-10,000 |
0-3,000 |
| CO2 Accuracy |
±50ppm or 5% of reading |
||
| Repeatibility |
±20ppm |
||
| Resolution |
1ppm |
||
| Pressure Dependence |
0.13% of reading per mm Hg |
||
| Response Time |
About 2 min |
||
| Warm Up Time |
30 sec. @ 25°C |
||
| Performance - Temperature and RH | |||
| ZG07 |
ZG07-M |
ZG07R |
|
| Temperature Range |
0~50°C (32~122°F) |
||
| Temperature Accuracy |
±1°C(±2°F) When the fan blows to the device directly, the accuracy of temperature is ±1.5 °C. |
||
| Relative Humidity Range (RH%) |
N/A |
N/A |
0-100% |
| Accuracy(Typ./Max.) @25°C (20%~80% RH) |
N/A |
N/A |
±3% / ±5% |
| Power Supply and Output | |||
| Power Supply |
5.0 VDC ±0.5 supply, Ripple and Noise (mVp-p) 200 |
||
| Max. current |
|||
| Avg. current |
|||
| Update period |
5 sec. |
||
| Output Interface |
4pin Vertical Connector, Space=2.54mm |
||
| Communication type |
SPIr |
||
| Dimension |
62mm x 20mm x 13.0mm (ZG07/ZG07-M) , 62mm x 20mm x 16.0mm (ZG07R) | ||
