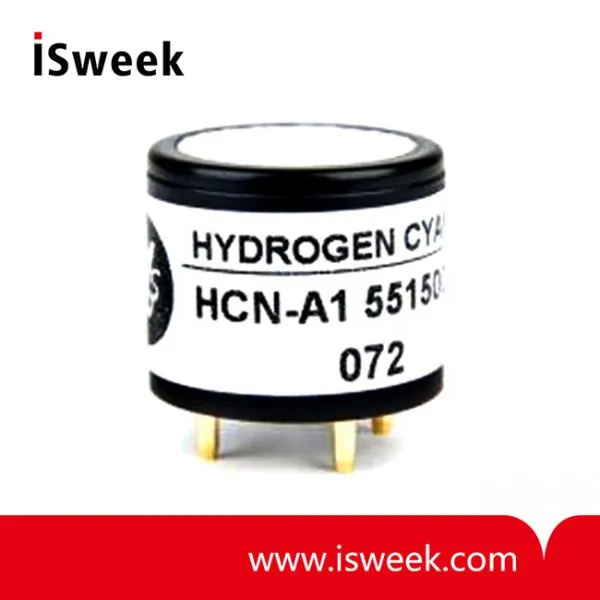

HCN-A1 Hydrogen Cyanide Sensor (HCN Sensor)
US$ 50 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
HCN-A1
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PO2-2x Percent Oxygen Sensor (O2 Sensor)US$ 0.001 - 0.01MOQ: 1 Piece -
EE893 Digital NDIR CO2 Sensor Module for OEM ApplicationsUS$ 0.001 - 0.01MOQ: 1 Piece
-
NO-AE High Concentration Nitric Oxide Sensor (NO Sensor)US$ 0.001 - 0.01MOQ: 1 Piece
-
HCL-A1 Hydrogen Chloride Sensor (HCL Sensor)US$ 40 - 100MOQ: 1 Piece
-
CH-D3 Miniature Size Combustible Gas PellistorUS$ 40 - 120MOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
HCN-A1
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
Output
Analog Sensor
HCN-A1 Hydrogen Cyanide Sensor HCN Sensor Description
Alphasense is expanding its line of electrochemical toxic gas sensors to address industry-specific requirements, including emissions monitoring, process safety, environmental monitoring and VOCs.
Hydrogen Cyanide (HCN)
In manufacturing, the use of Styrene Acrylonitrile for food packaging and other consumer products has increased the danger of HCN generated during fires. Alphasense has responded to this issue with HCN sensors with fast response and stable output.
Available in A, B and D series.
HCN-A1 Hydrogen Cyanide Sensor HCN Sensor Schematic Diagram
| HCN-A1 Hydrogen Cyanide Sensor HCN Sensor PERFORMANCE | ||
| Sensitivity |
nA/ppm in 30ppm HCN |
55 to 85 |
| Response time |
t90 (s) from zero to 30ppm HCN |
|
| Zero current |
ppm equivalent in zero air |
|
| Resolution |
RMS noise (ppm equivalent) |
|
| Range |
ppm HCN limit of performance warranty |
100 |
| Linearity |
ppm error at full scale, linear at zero, 40ppm HCN |
4 to 8 |
| Overgas limit | maximum ppm for stable response to gas pulse |
150 |
| HCN-A1 Hydrogen Cyanide Sensor HCN Sensor LIFETIME | ||
| Zero drift |
ppm equivalent change/year in lab air |
nd |
| Sensitivity drift |
% change/year in lab air, monthly test |
nd |
| Operating life |
months until 80% original signal (12 month warranted) |
> 12 |
| HCN-A1 Hydrogen Cyanide Sensor HCN Sensor ENVIRONMENTAL | ||
| Sensitivity @ -20°C |
% (output @ -20°C/output @ 20°C) @ 30ppm HCN |
75 to 95 |
| Sensitivity @ 50°C |
% (output @ 50°C/output @ 20°C) @ 30ppm HCN |
105 to 120 |
| Zero @ -20°C | ppm equivalent change from 20°C |
|
| Zero @ 50°C |
ppm equivalent change from 20°C |
|
| HCN-A1 Hydrogen Cyanide Sensor HCN Sensor CROSS SENSITIVITY | ||
| H2S sensitivity |
% measured gas @ 20ppm H2S |
|
| NO2 sensitivity |
% measured gas @ 10ppm NO2 |
|
| Cl2 sensitivity |
% measured gas @ 10ppm Cl2 |
|
| NO sensitivity |
% measured gas @ 50ppm NO |
|
| SO2 sensitivity |
% measured gas @ 20ppm SO2 |
|
| CO sensitivity |
% measured gas @ 400ppm CO |
|
| H2 sensitivity |
% measured gas @ 400ppm H2 |
|
| C2H4 sensitivity |
% measured gas @ 80ppm C2H4 |
|
| NH3 sensitivity |
% measured gas @ 20ppm NH3 |
|
| CO2 sensitivity |
% measured gas @ 5% volume CO2 | |
| HCN-A1 Hydrogen Cyanide Sensor HCN Sensor KEY SPECIFICATIONS | ||
| Temperature range |
°C |
-30 to 50 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous |
15 to 90 |
| Storage period |
months @ 3 to 20°C (stored in original container) |
6 |
| Load resistor |
Ω (recommended) |
10 to 33 |
| Bias voltage |
mV |
not required |
| Weight |
g |
|
Matched Transmitter board for HCN-A1 HCN Sensor
4-20mA Digital Transmitter Board
• Factory calibration, custom-set for immediate use
• Digital zero, sensitivity and temperature compensation
• Digital and 4-20mA output
• Biased or unbiased operation
• Calibration and range change
