140m/Min High Speed Fiber Laser Cutter (GS-LFD3015)
US$ 50000 - 250000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HANS GS
Place of Origin:
China
Model Number:
GS-LFD3015
Payment & Shipping
Payment Methods:
Port of Shipment:
wuhan
Delivery Detail:
30 days
Related Products
-
500W 1KW 2KW 3KW Galvanized Iron / Stainless Steel Laser Cutting MachineUS$ 50000 - 250000MOQ: 1 Set -
Sheet Metal Cutting Machine Laser Cutter for Cut Metal SheetUS$ 50000 - 250000MOQ: 1 Set
-
Easily Metal Cutting From China Hans GS Fiber Laser MachineUS$ 50000 - 250000MOQ: 1 Set
-
1000W Industrial Laser Cutting Machine With Servo MotorUS$ 50000 - 250000MOQ: 1 Set
-
Pipe Steel Cutting Equipment With Fiber Optic Lasers, Carbon Steel Pipe Laser CuttersUS$ 50000 - 250000MOQ: 1 Set
Brand Name
HANS GS
Place of Origin
China
Model Number
GS-LFD3015
Certification
CE, ISO, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Graphic Format Supported
DXF
Control Software
AOTU CAD
Cooling Mode
Water Cooling
CNC or Not
Yes
Cutting Speed
36m/min
Cutting Area
3000mm × 1500mm
Cutting Thickness
0.2-14mm
Applicable Material
Metal
Laser Type
Fiber Laser

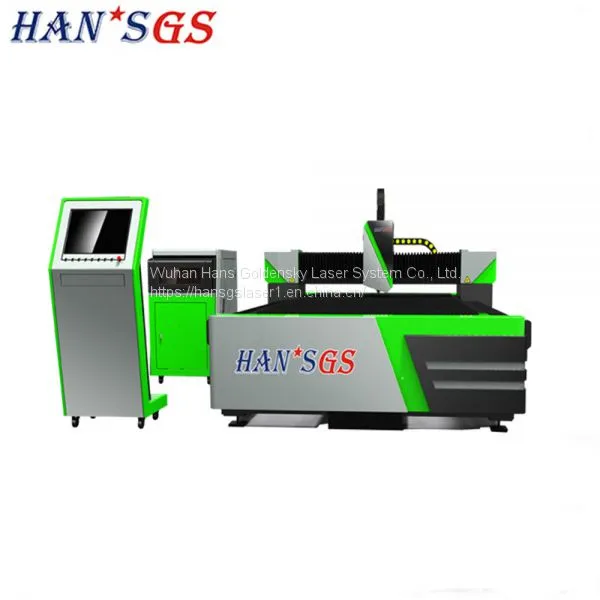

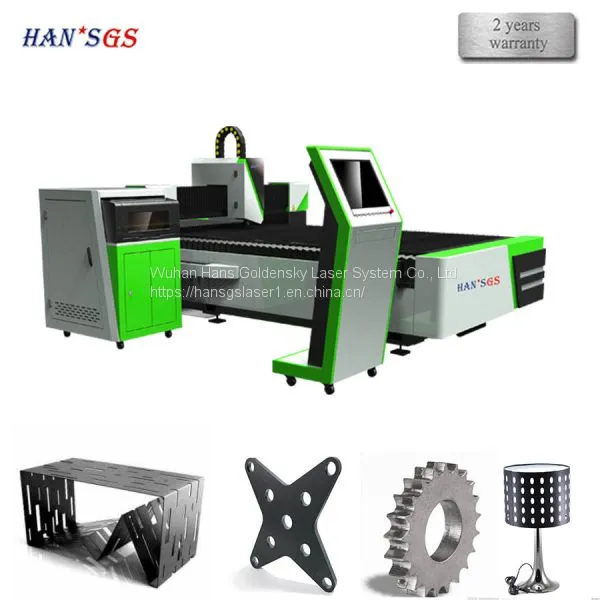

140m/Min High Speed Fiber Laser Cutter (GS-LFD3015)
Specifications
| Model | GS-LFD3015-L1 | GS-LFD3015-L2 |
| Output power of laser source | 500W | 1000W |
| Cutting area (L*W) | 3000mm × 1500mm | |
| Z axle stroke | 150 mm | |
| Max. cutting speed | 36m/min | 40m/min |
| Max. positioning speed | 140m/min | |
| Platform size/Max height of feeding material | 4250x2500mm/more than 120mm | |
| Cooling | water cooling | |
| Laser wavelength | 1070nm | |
| Min. cutting gap | ≤0.1mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm | |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm | |
| Thickness of cutting material (according to material) | 0.2-8mm | 0.2-12mm |
| Drive model | Imported servo motor | |
| Voltage | 380V,50/60Hz | |
| Temperature | 5ºC-45ºC | |
| Continuous working time | 24 Hours | |
| Machine weight | About 2950Kgs | |
| Outer dimension | 4350mm x 2280mm x 1500mm | |
| Total protection level of power supply | IP54 | |
Features:
1.Double drive system,YASKAWA,helical gear drive.Drive faster,more stable
2.12mm Steel frame,more firmly
3.Gantry beam,cast aluminum.High performance,no deformation,light weight and working fast
4.Control cabinet air condition,more secure,more intimate
5.Removable control cabinet,maintenance more convenient
6.Famous system, Beckhoff CNC Control System
7.Safety protection of cutting head,focal length adjustment,drawer type protective lens
8.Cooling system,water cooling and air cooling
9.Lubrication system,manual one key lubrication and computer control automatic lubrication
10.Material protection feeding system,three sides pulley feeding and hydraulic pressure push rod feeding
11.Double dedusting system,more environmentally friendly and safe.

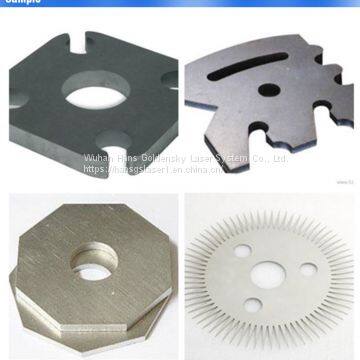

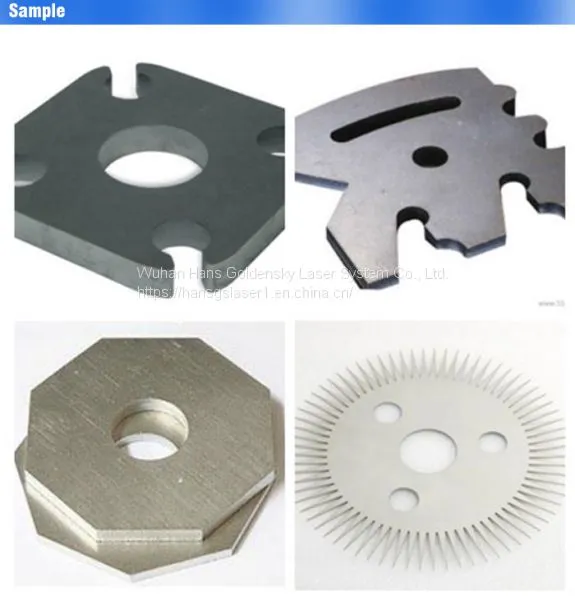

Cutting Machine Sample
2.12mm Steel frame,more firmly
3.Gantry beam,cast aluminum.High performance,no deformation,light weight and working fast
4.Control cabinet air condition,more secure,more intimate
5.Removable control cabinet,maintenance more convenient
6.Famous system, Beckhoff CNC Control System
7.Safety protection of cutting head,focal length adjustment,drawer type protective lens
8.Cooling system,water cooling and air cooling
9.Lubrication system,manual one key lubrication and computer control automatic lubrication
10.Material protection feeding system,three sides pulley feeding and hydraulic pressure push rod feeding
11.Double dedusting system,more environmentally friendly and safe.
Cutting Machine Sample
Applications
1.Can cut metal sheet/carbon steel/stainless steel/aluminum/copper/zinc
2.Petrochemical industry
3.Bus manufacturing
4.Steel construction
5.Medical equipment
6.Fitness equipment
7.Electrical engineering
8.Kitchen ware industry
9.Advertising brand
10.Precision machinery
11.Pipe processing
12.Metal processing
13.Sheet metal industry
