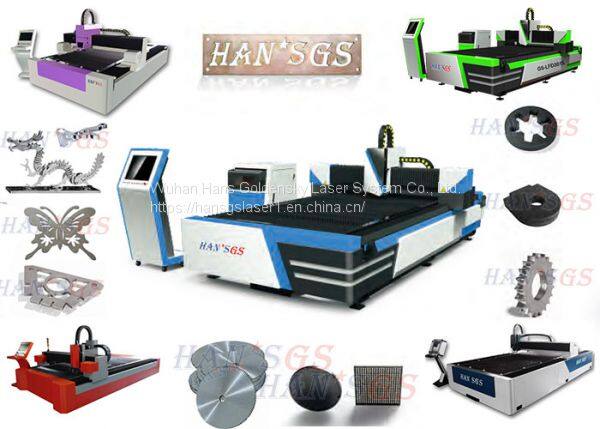

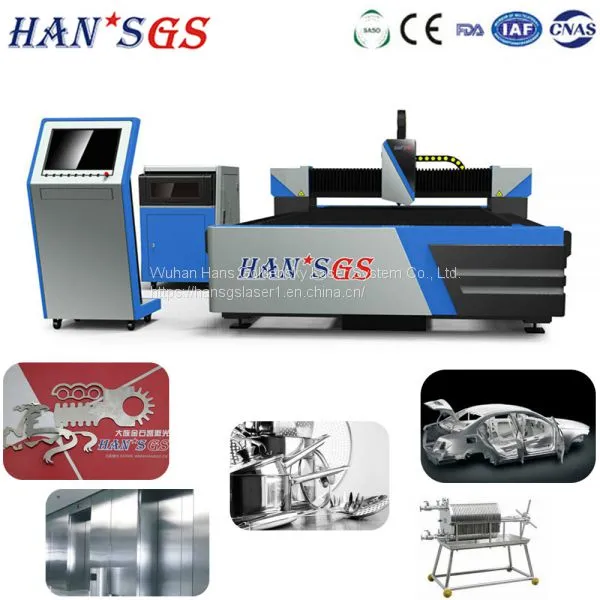

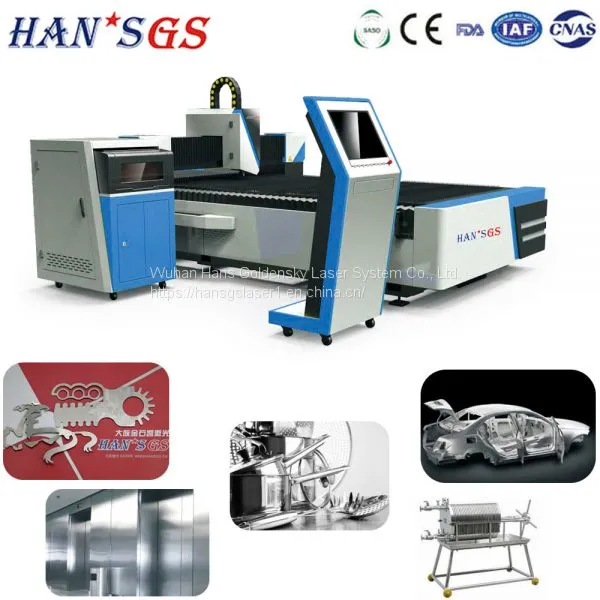

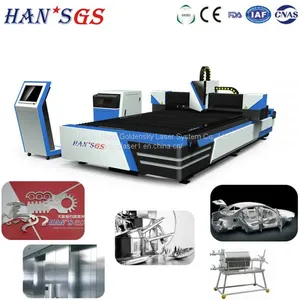

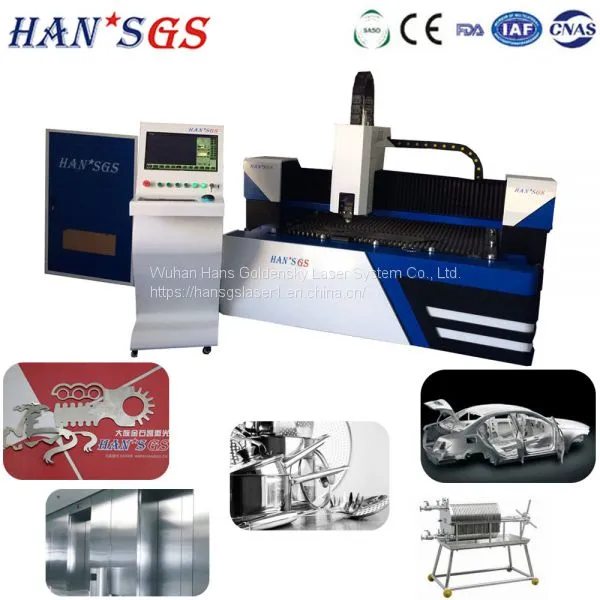

CNC Router ISO Approved Fiber Laser Cutting Machine
- 100 Set / Sets per Month
- wuhan
- T/T
- 30 days
Product Details
Brand Name: | HANS GS | Place of Origin: | China | Model Number: | GS-LFD3015 |
Certification: | CE, ISO, SGS | After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Graphic Format Supported: | DXF | Control Software: | AOTU CAD | Cooling Mode: | Water Cooling |
CNC or Not: | Yes | Cutting Speed: | 36m/min | Cutting Area: | 3000mm × 1500mm |
Cutting Thickness: | 0.2-14mm | Applicable Material: | Metal | Laser Type: | Fiber Laser |
Product Description
> > >Fiber Laser Cutting Machine advantages over other thermal cutting methods
2.2.1. The cutting quality is good:
Because of the small laser spot, high energy density, fast cutting speed, laser cutting can therefore get better cutting quality.
(1) Cutting knife is narrow and parallel on both sides, also perpendicular to surface, dimensional accuracy of cutting pieces can be up to + / - 0.05 mm.
(2) Cutting surface is smooth and beautiful, the surface roughness is only a few dozen microns, laser cutting can be used as the final working procedure, parts can be even used directly without mechanical processing.
(3) Heat affected zone is very small, material performance is hardly affected near the kerf width , and the workpiece deformation is small. Also, kerf geometry is good , slitting rectangular cross-section shapes appear to be regular.
2.2.2. Highly automation:
Adopts digital control, you only need to use CAD to draw the picture and import to specialized software, laser cutting machine can cut out the artifacts you need, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent.
2.2.3. High cutting efficiency:
Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control. You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting.
2.2.4. Fast cutting speed:
The cutting speed can be up to 600 cm/min when using 1200W laser to cut 2mm low carbon steel plate, and can up to 120 m/min when cutting 5mm polypropylene resin plate. Material does not need clamping fixed for cutting, thus can save the jig and auxiliary time for material upload and download.
2.2.5. Non-contact cutting:
There is no contact for work piece and laser head, so there is no tool wear. No need to change "tool" for different shapes parts processing, only need to change the output parameters. Laser, low noise, small vibration, and no pollution while cutting.
2.2.6. Variety cutting material:
Compared with oxyacetylene cutting and plasma cutting, laser can cut many kinds of materials, including metal, nonmetal, metal and nonmetal based composite material, leather, wood, fiber, etc. But for different material, it shows different laser cutting adaptability due to its thermal physical properties and different laser absorption rate.
2. Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.
3. The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.
> > >Fiber Laser Cutting Machine Technical Parameters
Model | GS-LFDS3015 | GS-LFDS3015 | GS-LFDS3015 |
Laser source medium | Fiber | ||
Cutting range(L*W) | 3000mm × 1500mm | 3000mm × 1500mm | 3000mm × 1500mm |
Z axle stroke | 150 mm | ||
Max cutting speed | 40m/min | 42m/min | 45m/min |
Max positioning speed | 140m/min | ||
Wok platform size/Max height of feeding material | 4250x2500mm/more than 120mm | ||
Cooling form | water cooling | ||
Laser wavelength | 1070nm | ||
Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
Positioning accuracy of X, Y and Z axles | ±0.03 mm | ||
Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm | ||
Thickness of cutting material (according to material) | 0.2-8mm | 0.2-12mm | 0.2-16mm |
Drive model | Imported servo motor | ||
Power requirement | 380V,50/60Hz | ||
Working temperature | 5ºC-45ºC | ||
Continuous working time | 24 Hours | ||
Machine weight | About 5950Kgs | ||
Outer dimension | 7828mm x 3741mm x 1940mm | ||
Total protection level of power supply | IP54 |
> > >Fiber Laser Cutting Machine Comparing Of Different Laser Sources
Model of Laser Source | Fiber | CO2 | Disc |
Electro-optical Conversion Efficiency | 30% | 10% | 15% |
Max. Output | 50Kw | 20Kw | 8Kw |
BPP(4/5Kw) | <2.5 | 6 | 8 |
Life of Diode Pumped | >100,000 | NA. | 10,000 |
Occupied Area(4/5Kw) | <1M2 | 3M2 | >4M2 |
Maintenance | no need | need | Often |
Soft Processing | more suitable | unsuitable | suitable |
Stability | best | good | good |
Absorption rate%--steel | 35 | 12 | 35 |
Absorption rate%--aluminum | 7 | 2 | 7 |
Replaced Parts | High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other. | Laser work requires gas supplement, reflection lens replacement. | Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000. |
Wuhan is the birthplace of laser industry.If you want to import laser machine from China,Wuhan City is your best choice.
In Wuhan,there are many manufacturers that producing laser machines,such as laser marking,laser engraving,laser cutting,laser welding,laser punching,laser quenching,laser cladding machine and laser source.
In Optics,the laser was applied to the cladding first.Laser cladding,laser quenching laser welding and laser alloying.Such applications are very large,the application fields can be car industry,boat industry,coal mine industry,steel industry and aerospace industry.Because such technology can help the Chinese Government save the money and the natural resoures.
Years Later,the laser technology was applied to the Ordinary Civil Industries.Such as laser marking,laser engraving,laser cutting,laser punching,etc.The application fields can be packing,advertisement board,kitchenware,computer,handicraft.And the laser can use the CO2 laser source,YAG laser source and Fiber laser source.And the material can be the metal,wood,acrylic,fabric,plastic and glass,etc.
Now,many manufacturers can purchase parts of laser machine,and assemble them to be the laser machine.And the price becomes much low because of the cut-throat competition.
Please let us know following informations:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
