IPG Fiber Laser Source
We adopts the world's highest level IPG fiber laser source, stable performance, assured safety of the whole product quality.
| Specifications of CF3015-2000 | |
| Operation mode | CW,QCW |
| Center wavelength of radiation | 1070-1080 Nm |
| Standard output | 2000 W |
| Beam quality | 4 mm*mrad |
| Adjusting speed | 5 kHz |
| Fiber Diameter | ≥50 μm |
| Output stability(long-time) | ±2 % |
| Power | 400-460 VAC |
| power dissipation | 8 kW |
| Max. Power dissipation of cooling water | 0.4 M3/h |
| Size(W*D*H) | 850×800×1190mm |
| Weight | 350 Kg |

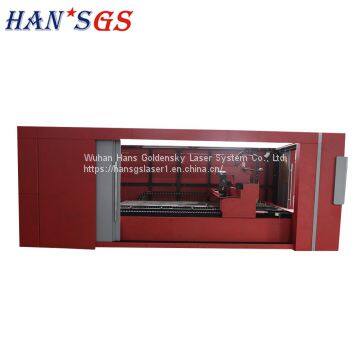

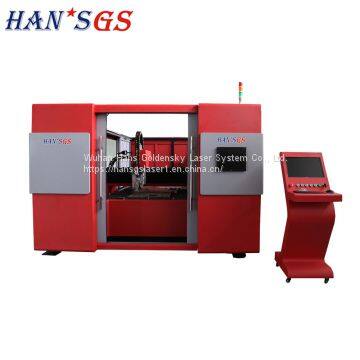

Fiber Laser Cutting Machine Technical Parameters
| Model | GS-LFDS3015 | GS-LFDS3015 | GS-LFDS3015 |
| Laser source medium | Fiber | ||
| Cutting range(L*W) | 3000mm × 1500mm | 3000mm × 1500mm | 3000mm × 1500mm |
| Z axle stroke | 150 mm | ||
| Max cutting speed | 40m/min | 42m/min | 45m/min |
| Max positioning speed | 140m/min | ||
| Wok platform size/Max height of feeding material | 4250x2500mm/more than 120mm | ||
| Cooling form | water cooling | ||
| Laser wavelength | 1070nm | ||
| Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
| Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm | ||
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm | ||
| Thickness of cutting material (according to material) |
0.2-8mm | 0.2-12mm | 0.2-16mm |
| Drive model | Imported servo motor | ||
| Power requirement | 380V,50/60Hz | ||
| Working temperature | 5ºC-45ºC | ||
| Continuous working time | 24 Hours | ||
| Machine weight | About 5950Kgs | ||
| Outer dimension | 7828mm x 3741mm x 1940mm | ||
| Total protection level of power supply | IP54 | ||
Servo Motor of strong rigidity, excellent control ability, accurate, sensitive response
1 Outstanding performance with the highest level of response of amplifier in the industry, the setting time is shortened in a high degree.
2 Enhancement of the Vibration suppression function to improve the track ability and decrease the setting time. Reduce the vibration when driving and reduce the fore-end vibration when stop working
3 Easy start up: simple installation and setting. The connection can be finished one time with Sigma Win+Connection confirmation function.
4 Standard configuration with analog quantity, instruction form of pulse sequence type and MECHATROLINK-II communication command type.
Customer visit
Fiber Laser Cutting Machine Germany Original Precitec Laser Cutting Head
Laser cutting head of stable performance and convenient operation and maintenance
1 With Germany original PRECITEC fiber laser cutting head and non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.
2 Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.
3 The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.

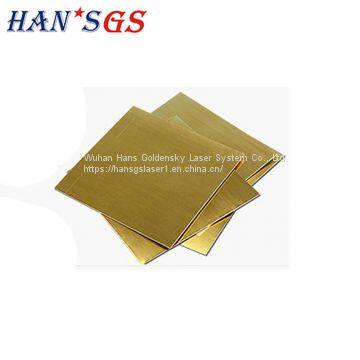

Fiber Metal Cutter Sample
Please let us know following informations:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
