Description:

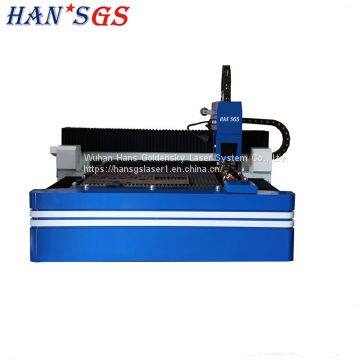

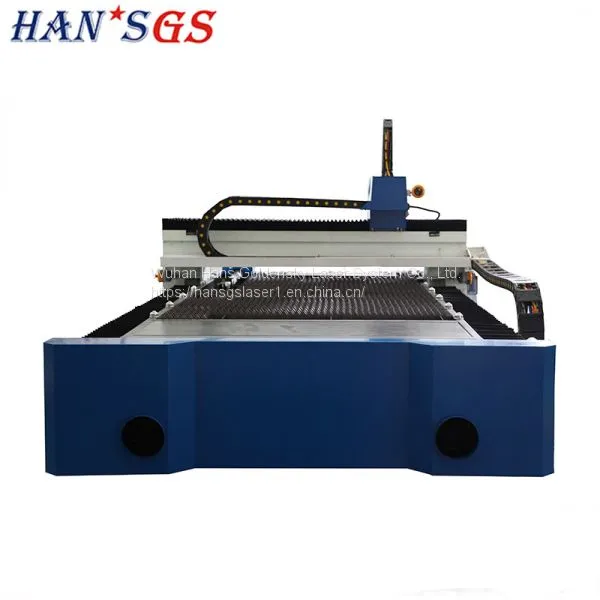

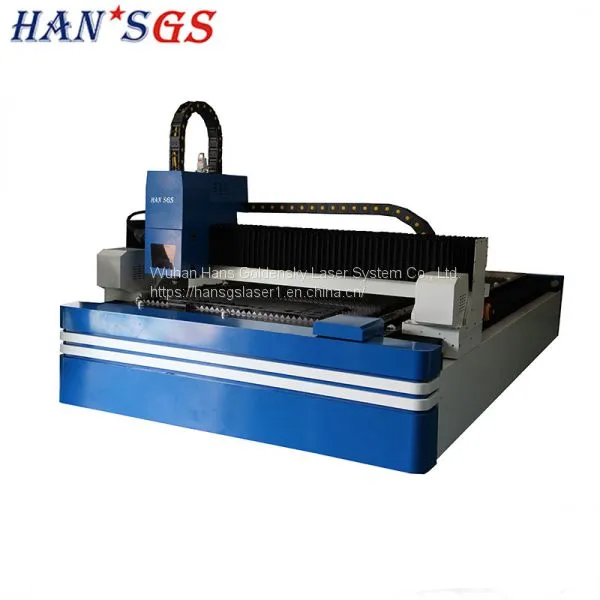

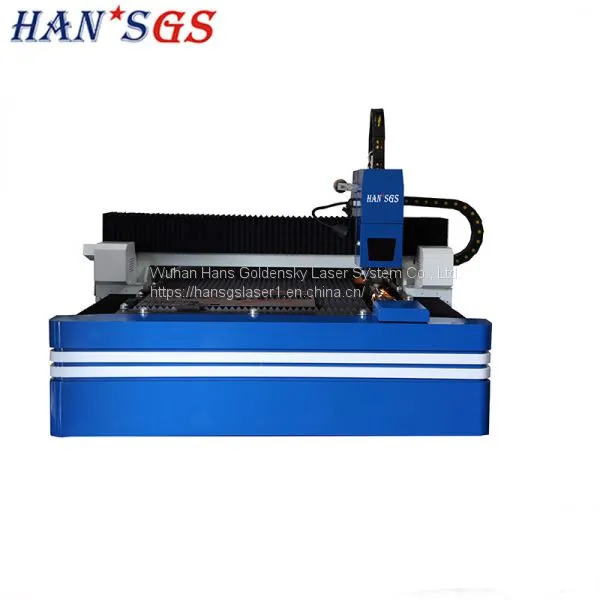

GS-LFD3015-A double drive fiber laser cutting machine is high technology product integrated of laser cutting, precision mechanism, digital control technical, adopting with big power laser source with international advanced technology. The whole product is sensational designed with excellent flexibility and performance, with international famous brand of key parts including key electric parts, service motor, control system and others. The product has characteristic of high combination, more precision and stable running performance. In addition, it also can be used to cut metal tube with the new design. It's widely used in cutting and shaping industry for carbon steel, stainless steel and aluminum alloy, and regarded as best choice for metal cutting with high speed, high precision, high efficiency and high cost effective features.
Product Highlights:
Features:
1. 2 in 1 function, can be used to cut metal tube & plate.
2. Smaller Focal spot and cutting gap. Much more efficient and better processing quality.
3. Extremely high cutting speed which equals to two times of tradition CO2 laser cutting machine with same power specification.
4. The photoelectric conversion rate is three times higher than traditional CO2 laser cutting machine, and it's environmental protection.
5. Lower running cost compared with traditional CO2 laser cutting machine, the power consumption is 20%-30% of CO2 laser cutting machine.
Fiber Laser Cutting Machine Germany Original Precitec Laser Cutting Head
Laser cutting head of stable performance and convenient operation and maintenance
1 With Germany original PRECITEC fiber laser cutting head and non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.
2 Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.
3 The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.
Our laser cutting machines are used in India
Installation Requirements ( Taking 1KW as example)
| No. | Item | Name | Requirement | Remark |
| 1 | Power | Laser Source | 5KW | Total power is not less than 25KVA |
| Water Cooling Machine | 3KW | |||
| Machine Tool | 10KW | |||
| Other Equipments | 3KW | |||
| Stability of three phase voltage | 380V±5% | |||
| Imbalance of three phase power | <2.5% | |||
| Ground | <4Ω | |||
| 2 | Cooling Water | Specialized cooling water | Deionized water 25L | |
| 3 | Gas | Cutting Gas | N2>99.5% | The parameter is different according to different material |
| O2>99.5% | ||||
| Air pressure not less than 1.0MPA | ||||
| 4 | Metal Board | Carbon board, stainless steel board of good quality and without rust | ||
Fiber Laser Cutting Machine Comparing Of Different Laser Sources
Model of Laser Source | Fiber | CO2 | Disc |
| Electro-optical Conversion Efficiency | 30% | 10% | 15% |
| Max. Output | 50Kw | 20Kw | 8Kw |
| BPP(4/5Kw) | <2.5 | 6 | 8 |
| Life of Diode Pumped | >100,000 | NA. | 10,000 |
| Occupied Area(4/5Kw) | <1M2 | 3M2 | >4M2 |
| Maintenance | no need | need | Often |
| Soft Processing | more suitable | unsuitable | suitable |
| Stability | best | good | good |
| Absorption rate%--steel | 35 | 12 | 35 |
| Absorption rate%--aluminum | 7 | 2 | 7 |
| Replaced Parts | High brightness semiconductor laser broadband single core, more than 100,000 hours of pump. Damage to one of the semiconductor does not affect the normal work of the laser, but less and less power, because each semiconductor pump sources are used to separate each other. | Laser work requires gas supplement, reflection lens replacement. | Semiconductor Bar (array) maximum pulse model 5000 hours or 10000 hours continuous mode. Laser use the pump sources are used in the process of often need to change, each time change need to be between $200,000-230,000. |

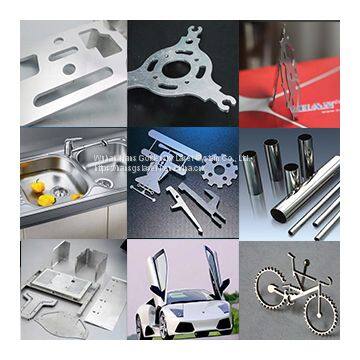

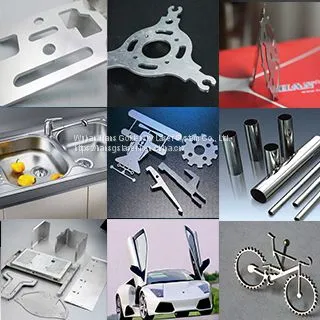

Metal tube & plate fiber laser cutting machine Sample
Please let us know following informations:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
