GDVA-402 CT PT Meter Transformer CT PT Analyzer
Introduction
GDVA-402 CT PT Meter Transformer CT PT Analyzer can finish: CT/PT volt-ampere characteristic curve test, CT/PT Polarity test,
CT/PT Transformation ratio test, automatically calculate error curve of any CT point.
Technical index
Input voltage |
Output scope |
Measuring scope |
Measuring degree |
|||||
Device main engine |
220V |
0~600V,0~20A |
0~600V,0~20A |
0.5% |
||||
380V |
0~1000V,0~20A |
0~1000V,0~20A |
0.5% |
|||||
220V |
0~600A |
0~600A |
Transformation ratio measuring precision 1% |
|||||
External voltage raising machine |
220V |
0~1650V,0~3A |
0~1650V,0~3A |
0.5% |
||||
380V |
0~2000V,0~3A |
0~2000V,0~3A |
0.5% |
|||||
External current raising machine |
220V |
0~1000A |
0~1000A |
Transformation ratio measuring precision 1% |
||||
External voltage adjustment machine |
0~1000V,0~30A |
0.5% |
||||||
Device working power |
AC 220V/380V 50HZ |
External dimensions |
420×330×320mm |
Weight |
24kg |
|||

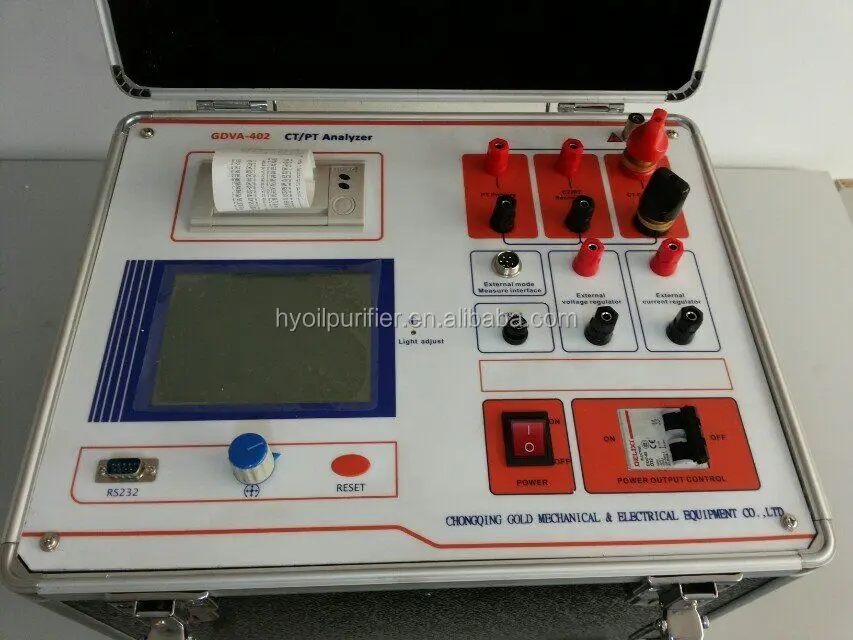

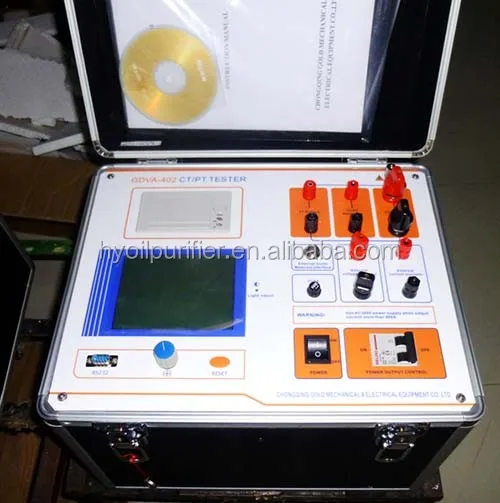

Product real picture show:

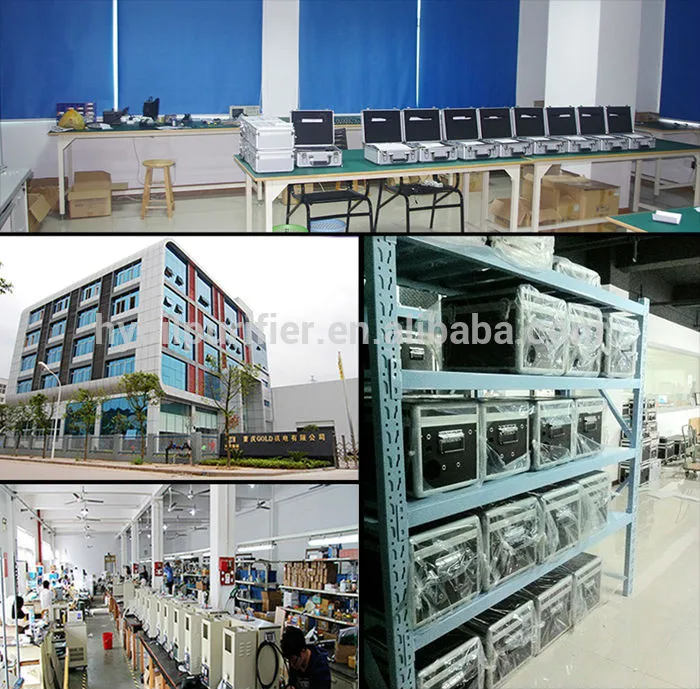

Our company has become one of the leading manufacturer of electrical testing instrument since 2009s’.
We have developed sales channels in many countries such as Malaysia,India,Germany,USA,Mexico,Saudi Arabia,South Africa and other countries worldwide. and we have gained great advantage and high reputation in international market.
We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity.Client,quality and service are our supreme target.
Pre-sale Service:
Inquiry will be replied within 24 hours.
Welcome to visit our factory.
Technical datas and operation manual sent for evaluation.
After-sale Service:
Training how to instal the machine, training how to use the machine at our factory;
Engineers available to service machinery overseas at customers' cost;
For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person.
What's the payment term?For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable.
What's the warranty period?Warranty period is 1 year.
