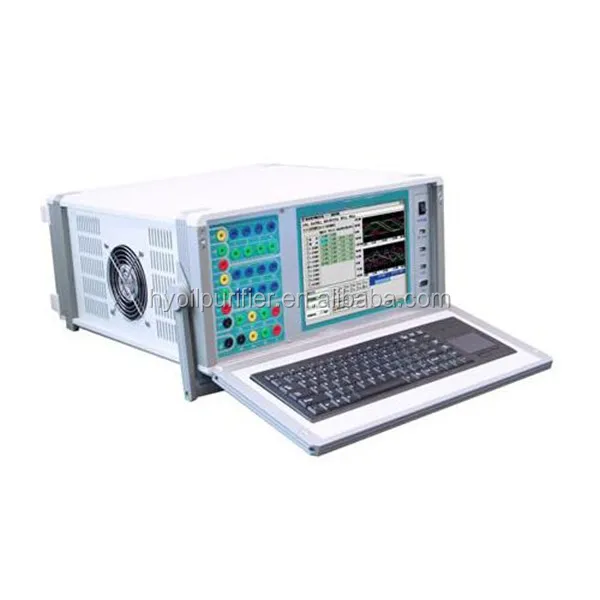

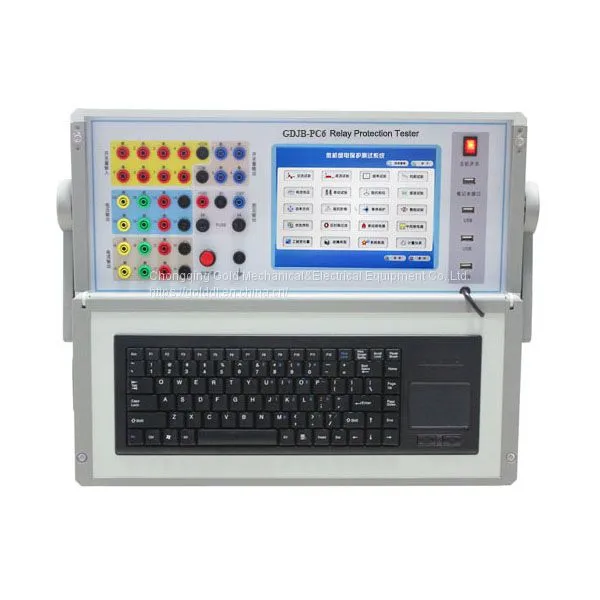

Relay Protection microcomputer test device play a key role in operating electricity power systems reliably and safely.It is the testing device used in professional field of microcomputer protection,relay protection,excitation measurement,fault recorder.
1.Embedded host machine, equipped with big programmed CPLD(Complex Programmable Logic Device);
2.12channels D/A output simultaneously in a single machine;
3.High precise linear power amplifier,6 voltage outputs and 6 current outputs.
4.8inch LCD screen display.Provide with keyboard/mouse connecting port,also 2USB port,2 RS232 port,to communicate with PC and other communication devices;
5.Easy to carry,suitable for flexible testing and wild working;
6.Intelligent self-protection;
7.8channels switching value input and 4channels switching value output.Input contact is idle contact and 0-250V potential contact for selectable,intelligent identification;
8.Plentiful Binary and powerful software function;
9.Two groups of DC power supply, 110VDC/1.0A&220VDC/0.6A,no need to set and adjust by software(Optional).
Technical Parameters:
•Inquiry will be replied within 24 hours.
•Welcome to visit our factory.
•Technical datas and operation manual sent for evaluation.
After-sale Service:
•Training how to instal the machine, training how to use the machine at our factory;
•Engineers available to service machinery overseas at customers' cost;
