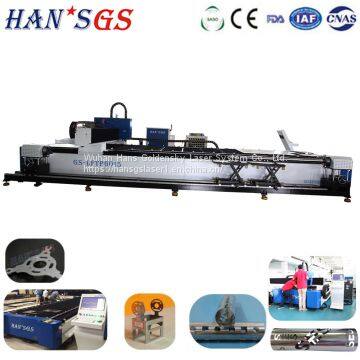

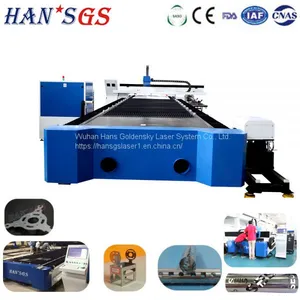

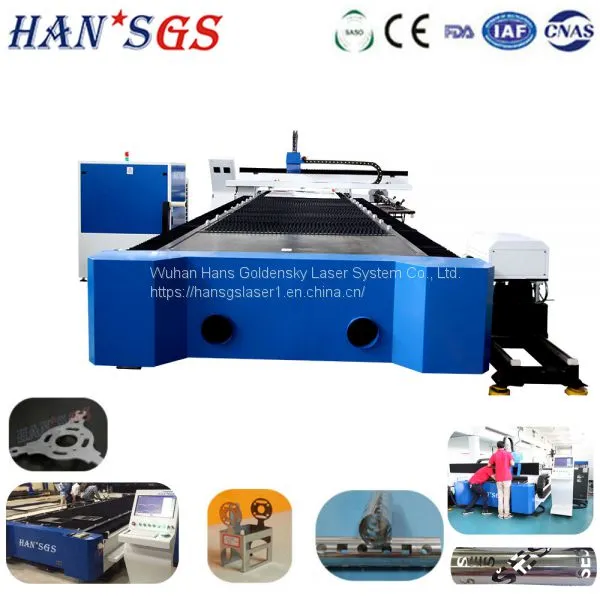

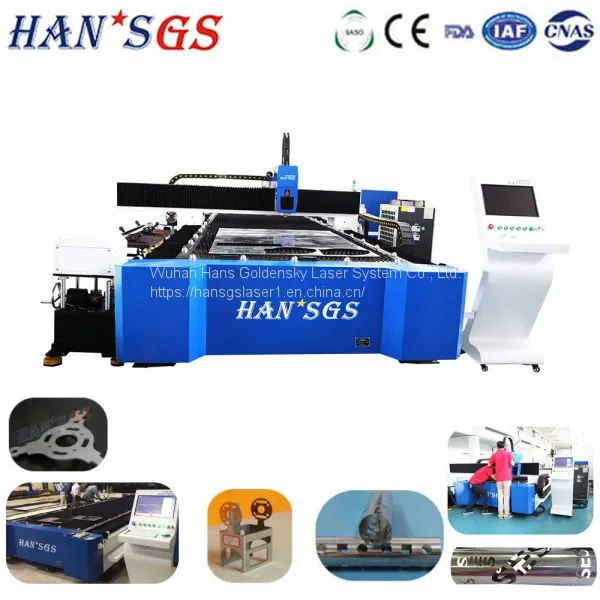

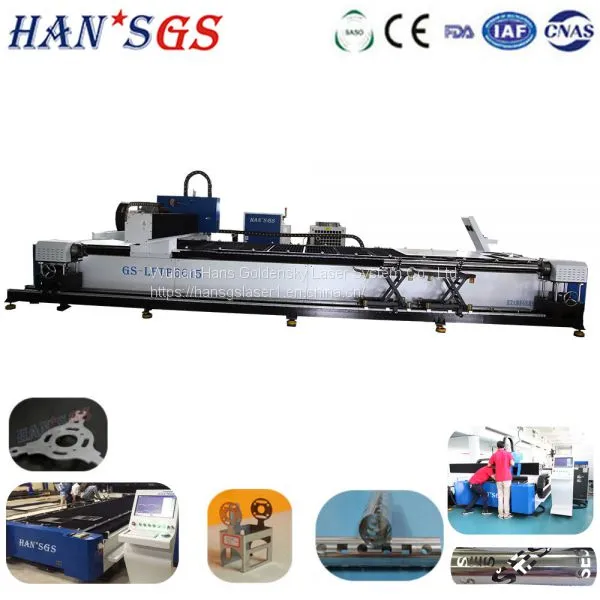

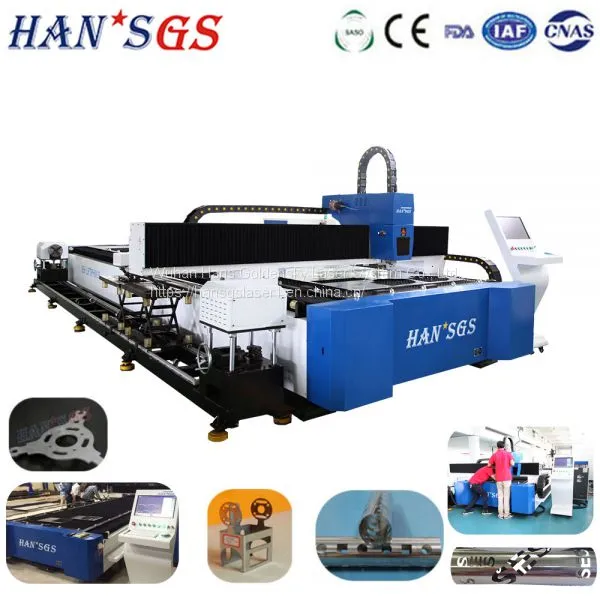

Help CenterCNC Fiber Laser Metal Tube Cutting Machine for Square/Round Pipe
Related Products
-
Small Format High-Precision Fiber Laser Metal Cutting Machine, Metal Plate Laser Cutting MachineUS$ 50000 - 250000MOQ: 1 Set -
3015 1500w 2000w Stainless Steel Carbon Steel Laser CNC Machine for SaleUS$ 50000 - 250000MOQ: 1 Set
-
1000W Spi Laser Source Fiber Metal Cutter for 3mm AluminumUS$ 50000 - 250000MOQ: 1 Set
-
Offer CNC Metal Tube/Plate Carbon Steel 500W/1500W Fiber Laser Cutting MachineUS$ 50000 - 250000MOQ: 1 Piece
-
Ce/ISO 500W 1000W Alloy Stainless Steel Fiber Laser Cutting MachineUS$ 50000 - 250000MOQ: 1 Set
Han's laser Company Profile
Han's Laser - Asia's largest, world-famous laser processing equipment manufacturer Named by Forbes as one of China's most potential enterprises for 4 years in a row (2005-2008).
1.The first listed company with laser as the main operation in China;
2.With the largest output and sales volume of laser processing equipment in the world;
3.National Pilot Innovative Enterprise;
4.National Key High-tech Enterprise;
5.National Torch Plan unit, 863 Plan Project unit;
6.National Model Enterprise Focusing On Promoting Scientific and Technical Payoffs;
7.Key Software Enterprises Under the National Planning.
Product Introductions
Main features
1. Excellent Path Quality: Smaller laser dot and high work efficiency, high quality.
2. High Cutting Speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable Running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High Efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low Maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy Operations: fiber line transmission, no adjustment of optical path.
Parameters
| Model | GS-LFTP6015 |
| Output power of laser source | 500W/1000W/1500w |
| Cutting area (L*W) | 6000mm × 1500mm |
| Max tube diameter | 200mm or 300mm |
| Max tube processing length | 3m |
| Max tube cutting thickness | 5mm |
| X axle stroke | 3048 mm |
| Y axle stroke | 2300 mm |
| Z axle stroke | 100 mm |
| Cooling | water cooling |
| Max accelerated speed of X, Y axles | 1G |
| Kerf Width | 0.1~0.3 mm |
| Positioning accuracy of X, Y and Z axles | ±0.05 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Processing precision of work piece | ±0.1 mm |
| Kerf harshness | Ra 3.2-12.5 μm |
| Voltage | 380V,50/60Hz |
| Continuous working time | 24 Hours |
| Max bearing weight of working platform | 600Kgs |
| Total installed capacity | 20-25 KVA |
| Total protection level of power supply | IP54 |

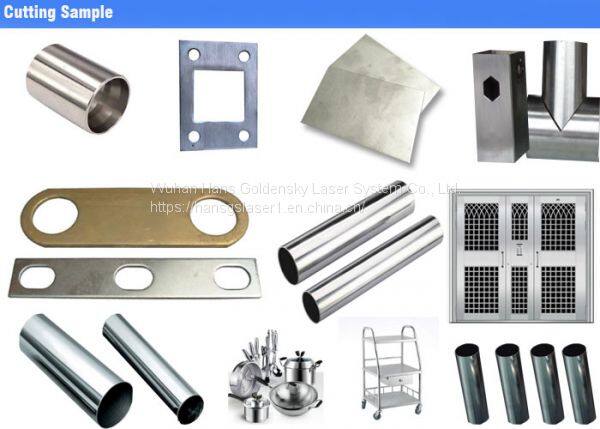

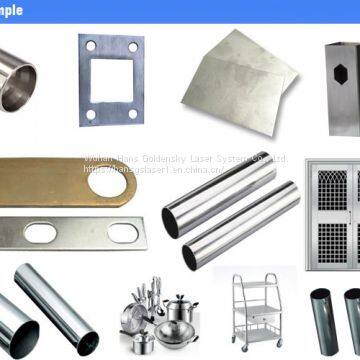

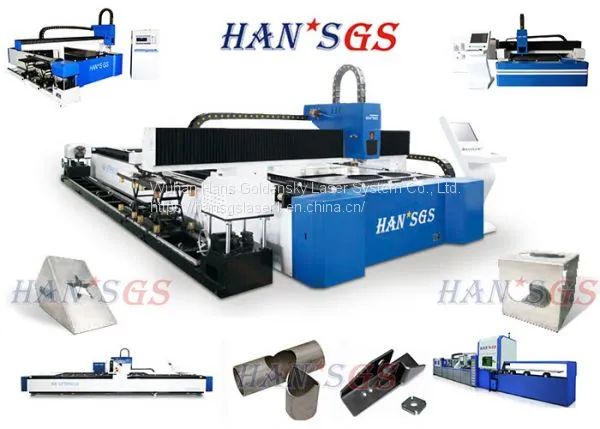

Details and cutting samples display:
Application
1.Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
2.Application Industries: HAN'S GS Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
HANS GS FAQ:
1.Q: Are you a factory or trading company?
A:We are a manufacturer with $13 million registered capital & 20000 square meters Han's Goldensky Science and technology park.
2.Q: What is the payment terms?
A:The payment terms we accept include: Western Union, Cash, L/C, T/T (30% advance payment as deposit, 70% balance payment should be paid before shipment.)
3.Q: How long is the delivery date?(After getting the deposit)
A: It is different from 25-45 workdays according to the models, OEM is also available, delivery time need to be final confirmed on both sides.
For offer the most suitable machine with favorable price, please confirm below questions:
1.What kind of material do you want to cut?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
