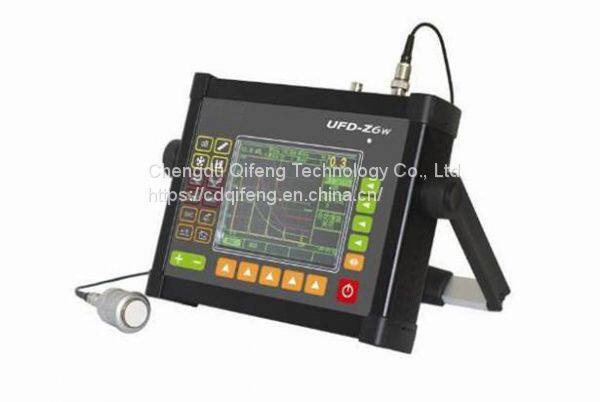

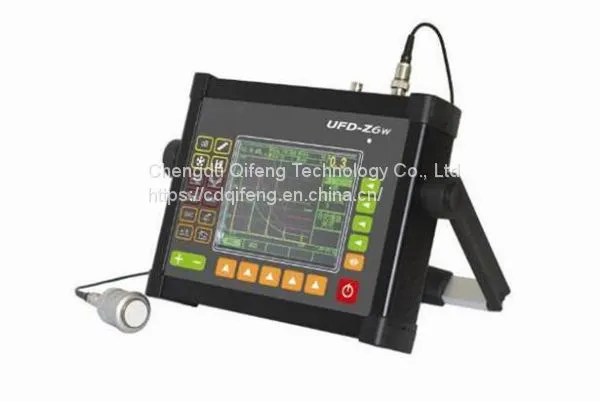

UFD-Z6W portable digital welding TOFD ultrasonic flaw detector
Product Overview
UFD-Z6W Ultrasonic Flaw Detector is a superior, rapid, professional and portable detector.
UFD-Z series apply square technique, it could meet any demand.
Superior performance combined with our own characteristic perfectly, response fast, digital content simulated experience, comfortable sense of avoiding to clutter disturb. it will detect flaw follows your idea, just like your sixth feelings, Z series is a portable detecting work station.
Unique Function:
1.Weld Professional Color Screen Digital Ultrasonic Flaw Detector
2.TOFD(Time of Flight Diffraction), showing two-dimensional image, measuring height and depth of flaw.
Weld profile indicated
Comply to USA GB11345/JB4730 standard.
AWS: the American welding society standard AWS D1.1 / D1.5
echo coding techniques can be intuitive to obtain the position of the defect in multiple echo.
Showing intuitive analysis for welds profile
Specification： |
||||||||||
Measuring range |
1.0~15000mm |
|||||||||
Resolution |
0.01mm( |
1mm(>100mm) |
||||||||
Velocity |
500~2000m/s |
20 fixed sound velocity |
||||||||
Display delay |
-20~3400us resolution: 0.1us |
|||||||||
Probe delay |
0~99us resolution: 0.01us |
|||||||||
Auto calibration |
Measurement and setting of sound velocity and probe delay using two known |
|||||||||
calibration echoes (2-point calibration ) |
||||||||||
Linear error |
Horizontal linearity error≤0.1% |
Vertical linearity error ≤3% |
||||||||
Dynamic range |
≥36dB |
|||||||||
Sensitivity leavings |
≥64dB 200mmФ2 flat-bottomed hole |
|||||||||
240×180×50 |
||||||||||
Dimension |
(mm) |
|||||||||
Weight |
1.9Kg(including battery pack) |
|||||||||
Working environment |
Temperature: 0℃~60℃ |
Humidity: 20%～90% |
||||||||
Transmission Pulse |
||||||||||
Drive Pulse |
Negative pulse/Square Wave |
|||||||||
Pulse Width |
50~2000ns |
|||||||||
Pulse Amplitude |
50-500v |
|||||||||
Pulse repetition frequency |
Pulse repetition frequency |
PRF could be adjusted |
||||||||
Damping |
50/150/250/400Ω |
|||||||||
Receiving System |
||||||||||
Testing mode |
Pulse echo/ transmitting and receiving /transmission |
|||||||||
Measuring mode |
Peak /Verge |
|||||||||
Gain |
0 to 110dB Customers define steps 0/0.2/0.5/1/2/6/12 |
|||||||||
Detector Pattern |
RF/full-wave/positive /negative half- wave |
|||||||||
Frequency bandwidth |
0.3~1 / 0.5~4 /2~15MHz broad band filter |
|||||||||
1/2.5/5/10/15 MHz narrow band filter |
||||||||||
Display |
||||||||||
LCD |
Wide temperature high-light TET color LCD 5.7" industrial class |
|||||||||
Backlight |
5 grades could be chosen |
|||||||||
Display refresh frequency |
Not less than 60Hz |
|||||||||
GUI theme |
5 GUI color themes: simple/classical/gray/bright light/ dark light, Customers |
|||||||||
could choose theme by setting color of characters ,A wave scan , coordinate |
||||||||||
color ,background |
||||||||||
Gate /Measuring /Alarm |
||||||||||
Gate |
Two separated gates A/B |
|||||||||
Measuring Value |
5 value display areas, one of them is mainly area. Chosen measuring content |
|||||||||
SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/L |
||||||||||
B |
||||||||||
Alarm |
All gates could alarm logically |
and independently |
||||||||
Memory |
||||
Channel parameters |
20 groups |
|||
A-scan wave |
3,200 group |
|||
Thickness value |
320,000,linear |
|||
Wave Video |
10 min |
|||
Reference wave |
4 |
|||
Input/Output |
||||
Probe cable |
LEMO/BNC |
|||
Communication |
RS232/USB |
|||
Region |
||||
Time |
Real time date and time |
|||
Language |
Chinese ,English |
|||
Unit |
mm/inch |
|||
Power |
||||
Battery |
High power lithium battery ,capable of preventing over-charge and |
|||
over-discharge |
||||
Power Indicator |
Monitor power based on coulombmeter , showing remaining capacity of |
|||
battery via percentage and |
battery life |
|||
Working time |
Continuous working over 20 hours |
|||
Power adapter |
Input 100~240V/50~60Hz |
output 9VDC/4A |
||
High Grade |
||||
Dynamic Echo |
Digital Nature, Simulation Performance |
|||
Memory key Store |
3 kinds of data report, screenshot , wave, thickness value |
|||
Grate |
Analysis the details of the wide gate area |
|||
two-dimensional coding B |
Thickness/ Shape scanning Gray/Color board Design |
|||
scanning |
||||
Echo Coding |
Two chosen coding matter: coordinate/waveform, it is convenient to calculate |
|||
span |
||||
Freezing Curve |
All/peak value/contract/envelope/delay envelope |
|||
Feature Indicator |
Measuring of the sound distance wave front & amplitude |
|||
CSC Curve Calibration |
Value correction according to probe angle, thickness of pieces and curvature |
|||
diameter |
||||
Lock |
Single menu independently lock to avoid system adjust related data; |
|||
Data group could lock to avoid wrong delete |
||||
Screen saver |
Standby/Character/Power Off |
|||
