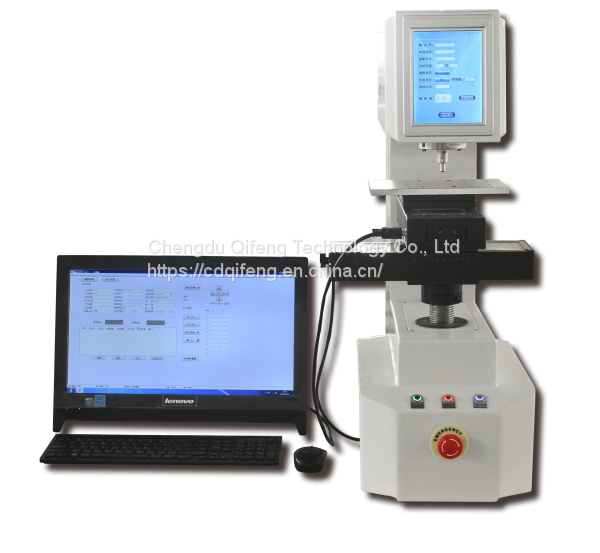

THRS 150/45DX -ZXY Automatic Rockwell Hardness Tester
Product Features：
Automatic testing process . After putting much more samples, only press the "Start" button the hardness value for each sample will be got. The main hardness tester can be divided from automatic system and it can be used for testing independently.
Just like build with blocks, they can be upgraded according to requirement.
Specimen will be raised up automatically (without height limited)
Automatically load the initial test force
Automatically load the main test force
Automatically measure the hardness values
May multi-point, multi-parts test hardness value with groups test for example automatically measuring the end quenched curves for 6 pcs end quenched specimens
Automatically hardness exchange according to Chinese standard/ASTM
Automatically alarm the unqualified hardness value
Password protection setup parameters; more samples and test information
Customer can automatically make the inspection report subjected
When started it is no need to install weights and does not need to installed
Electric load, closed-loop control
Accuracy Test force automatic correction, the force accuracy level can be upgraded
Each sample is placed in any position individually and separately set
Modular design for easy maintenance
Automatically correct curvature radius; by GB / ASTM hardness automatically converted
The mean and standard deviation, etc. automatically calculated hardness values, unqualified value automatic alarm, automatic calculations, generate customized inspection reports
Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness.
Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.
Technical Specifications：
Main Technical Specifications:
| Conversion Scale | Rockwell ,Brinell,Vickers |
| Application | Applied for repeatedly testing large quantity of specimens |
| Preload for Rockwell hardness |
98N (10kgf) |
| Main Force for Rockwell hardness |
60kgf（588.4N）100kgf（980.7N）150kgf（1471N） |
| Force error | ≤0.5% |
| Preload for Superficial Rockwell hardness | 29.4N（3kgf） |
| Main Force for Superficial Rockwell hardness |
15kgf（147.1N）30kgf（294.2N）45kgf（441.3N） |
| Superficial Rockwell test range | HR15N：70-94 HR30N：42-86 HR45N：20-77 HR15T：67-93 HR30T：29-82 HR45T：10-72 |
| Dwelling Time | 0~60s |
| Rockwell Scales | HRA：20-96 HRB：20-100 HRC：20-70 HRD：40-77 HRE：70-100 HRF：60-100 HR G 30-94HRH：80-100 HRK：40-100 HRL：50-115 HRM：50-115 HRR：50-115 |
| Carry Out Standard | Chinese Standard GB/T230.1, GB/T230.2, JJG112 Inspection Rule, ASTM Standard |
| Max Height of Specimen | 175mm, Added Height: 400mm |
| Distance between Indenter to outer wall | 160mm |
| Specimen Rising Speed | 3mm/s |
| Specimen Rising Up | Automatically |
| Apply Initial Test Force | Automatically |
| Apply Main Test Force | Automatically |
| Specimen moving in X or Y Axis | Automatically Move |
| Moving Precision in X or Y Axis | 0.003mm |
| Travels in X or Y Axis Direction | 100mm |
| Hardness Value Display | Automatically |
| Hardness Value Exchange | Automatically |
| Hardness Values Output | Built-in Printer, RS232 Interface, Normal Printer |
| Hardness Statistic and Analysis | With |
| Hardness Test Database Inquiry | With |
| User’s Stipulated Inspection Report | Automatically Form |
| Exchange Scales | Superficial Rockwell, Brinell, Vickers |
| Readout Hardness Value | Large Digital Display Screen |
| Overall Dimension (mm) | 520x240x720mm |
| Power Supply | AC220V |
| Net Weight of Main Tester | About 65kg |
