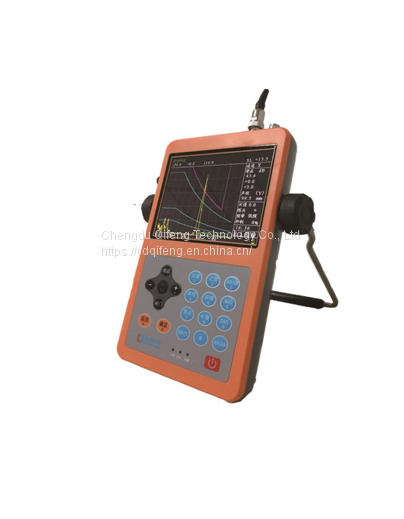

LT-Q500 portable digital ultrasonic flaw detector
Product Overview
Key Features:
36mm ultra-slim tablet design with best in-class performance.
• Calendar and clock function. This detector can automatically record the date and time of its operation. Self-test probe performance. Automatically calibrates material thickness and sound velocity.
• 20 independent channels (expandable) with multiple international standards stored to ensure on-site operations without carrying testing block.
• High sensitivity gain up to 120dB. Unique Auto-Gain adjustment and peak-searching functions to make testing quicker and more accurate.
• Full-wave, positive half –wave, negative half-wave, radio frequency display.
• DAC, AVG curves are automatically created and plotted with self-compensation and correction available. Distance-amplitude compensation of designated echo is also available
• AWS D1.1/1.5 Feature
• Wave frozen, peak memory, depth compensation.
• Adjustable gate width, height and position.
• B-scan display available.
• Intelligent Data storing by name, date or serial number with printing option.
• Real-time dynamic wave recording.
• VGA output for projector use.
Gain |
110 dB with 0.1 1.0 2.0 6.0 steps |
Frequency Range |
0.4-20MHz |
Detecting Range |
0-10000mm(Longitudinal wave in steel) |
Probe Type |
Single, double, through transmission |
Horizontal Linearity |
≤ 0.1% |
Vertical Linearity |
≤ 3% |
Instrumental Resolution |
≥ 32dB |
Sensitivity Margin |
≥ 62dB |
Dynamic Range |
≥ 34dB |
Gate |
A, B |
Sampling Frequency |
160 MHz (real-time) |
Beam Path Display |
0-9800mm (Longitudinal wave in steel) |
Monitor |
5.7’’ TFT LCD (640*480)_ |
Battery Life |
≥ 7h |
Operating Temperature |
-20°C - 50°C |
Power |
16V DC or 220V AC |
Dimension (W*H*D) (mm) |
235*140*34 |
Weight |
1.2KG |
