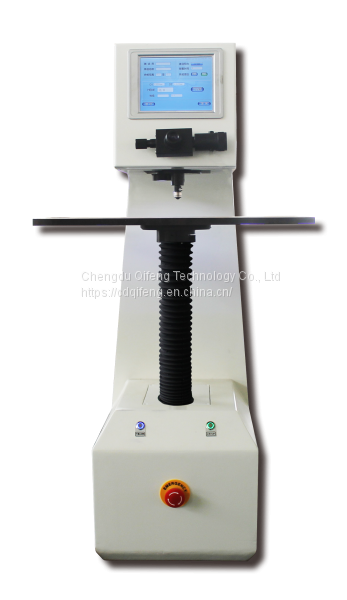

THBS-3000XP-Z Automatic Touch Screen Digital Brinell Hardness Tester

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Model Number:

THBS-3000XP-Z

Chengdu Qifeng Technology Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu

Delivery Detail:

3 days

Place of Origin China

Model Number THBS-3000XP-Z

THBS-3000XP-Z automatic Brinell hardness tester system

Product Features：

Advantages:

Load from 31.75Kgf to 3000Kgf
10 kinds of measurement scale, customized
Electric load ,closed-loop control, automatic loading
Measuring indentation automatically, don't need to focus
Hardness value display on screen, able to convert into other types of hardness value
Load automatic corrected,accuracy raise a number of levels
Hardness value automatic corrected according to different hardness block
Automatic turret for customer's easy operation
600mm big space for sample
No need to install the weight, no need to regulate
Touch screen interface,any language version
Save more samples and test information
Set the password protection
Data saved as EXCEL format through USB flash disk, edit and process easy
Modular design, simple maintenance
Technical Specifications:

Brinell Scale	HBW2.5/62.5(31.25) HBW2.5/187.5 HBW5/125 HBW5/750 HBW10/100 HBW10/1500 HBW10/1000 HBW10/250 HBW10/500 HBW10/3000
Load Kgf(N)	31.25(306.45) , 62.5 (612.9), 100(980.7) 125 (1226), 187.5 (1839),250 (2452), 500 (4903), 750 (7355), 1000(8907), 1500 (14710), 3000 (29420)
Dwell time	5~60s
Max Height of Specimen	400mm
Distance of Indenter to outer wall	250mm
Hardness measuring range	8~650HBW
Data output	touch screen, saved in USB flash disk
Executive Standard	GB/T231.2,JJG150
microscope magnification	20X (10X OR 15X OR 30X)
Min measuring unit	0.625µm(or 0.3125μm)
Power supply	AC220+5%,50~60Hz
Overall Dimension	550210750mm
Net weight	About 90kg
