MT600 Multi-mode Ultrasonic thickness gauge
Product Overview
MT600 multi-mode ultrasonic thickness gauge is a upgraded product. We pay more attention to user experience and innovative features such as visual experience, protection grade, automatic alarm and etc..Color TFT display (320×240 TFT LCD) with adjustable backlight, allow the user to work at worksites with low visibility. IP65 degree of protection, can effectively prevent harsh field environments of oil, dust and other corrosion. It also has voice broadcast function, automatic alarm., 0.1mm/0.01mm/0.001mm resolution, bluetooth communication and penetrate the coating mode and normal mode functions and etc.. It can measure the substrate thickness without the need to dispose of coating directly. Its unique non-destructive testing performance provide the perfect solution for the thickness testing of closed Pipes, containers, etc. It is widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields because of monitoring corrosion thinning degree of various pipes and pressure vessels.It can also be used for precise measurement of sheet metal and machined parts. This professional precision instrument is to improve production efficiency and qualified rate, cost saving.
Instrument Features

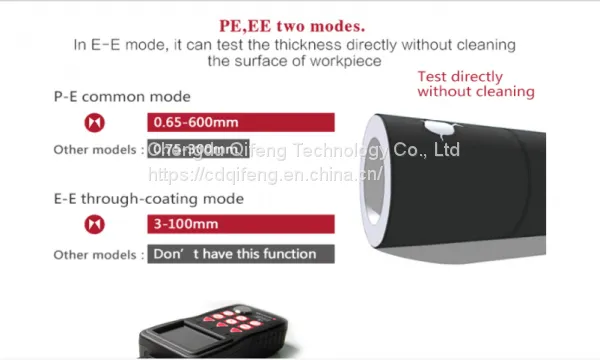

Multi-mode: Pulse-Echo mode (P-E mode) and Echo-Echo mode (E-E mode). In Echo-Echo mode, it can test the wall thickness eliminating paint or coating thickness.
Wide measuring range：Pulse-Echo mode: (0.65～600)mm (in Steel). Echo-Echo mode: (2.5～100)mm
V-Path correction to compensate the nonlinearity of the probe
Color TFT display (320×240 TFT LCD) with adjustable backlight, allow the user to work at worksites with low visibility.
Non-volatile memory can store 100 groups of test thickness. One hundred records max for each group.
Two AA size alkaline batteries as the power source. Continuous operating period of no less than 100 hours (default brightness setting). Display Standby and Auto Power Off functions to save power.
With internal Bluetooth module, it can print test report wirelessly.

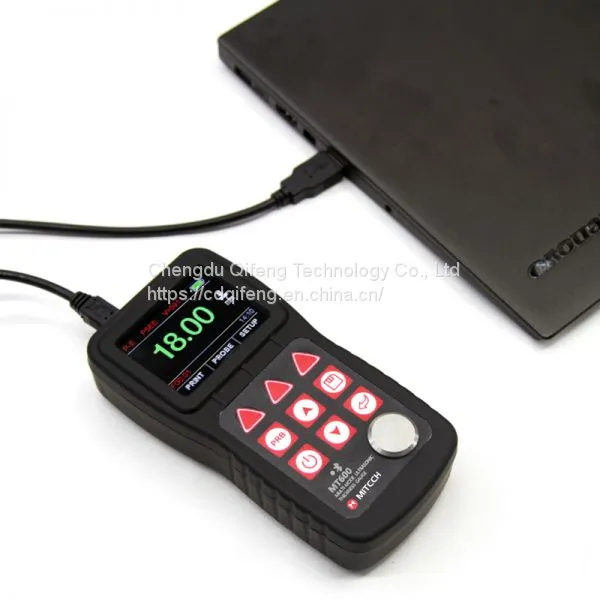

USB 2.0 communication port. Online transfer of the measured data to PC via USB
Technical Parameters
| Measuring Range | 0.65-600mm( P-E), 3-100mm (E-E) |
| Working Frequency | (2.5-7）MHZ |
| Probe Diameter | Standard Probe P5EE is 10mm, Probe N05 is10MM、Probe N07 is 6MM、Probe HT5 is12MM、Probe N02 is12MM |
| Min. Pipe Diameter | Φ15mm×2.0mm |
| Resolution | 0.1/0.01/0.001mm |
| Accuracy | ±0.04mm（<10mm）；±0.4%Hmm(>10mm) |
| Display | 320x240 TFT color LCD screen, adjustable backlight brightness |
| Single /Scan Mode | Single mode,Scan Mode, and and diff mode |

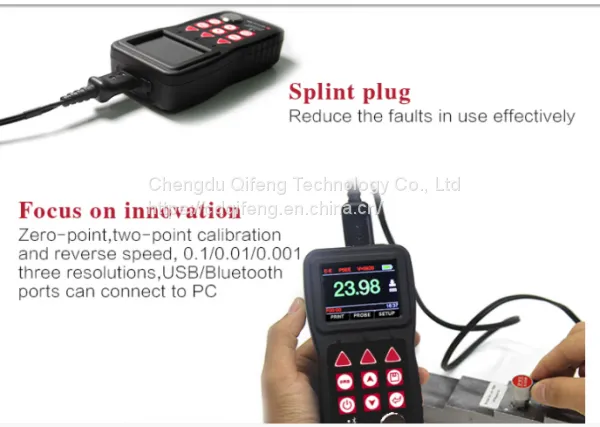

| Probe Calibration | Zero calibration, two-point calibration, automatic error correction system |
| Velocity Range | 1000-9999m/s |
| Unit | Metric/Imperial unit selectable |
| Language | English |
| Memory | 100 groups (100values for each group) of stored values |
| Communication Port | USB.Bluthtooth |
| Data Printing | yes |
| Power supply | Two “AA” size, 1.5 Volt alkaline batteries |
| Lower Power Comsumption | Yes |
| Working Hours | 30h |
| Operating Temperature | -20℃-+60℃ |
| Relative Huminity | ≤90％ |
| Appearance | ABS Plastic |
| Outline | 150mm×76mm×38mm |
| Gross Weight | 295g |
| PC Datapro Software | Yes |
| Speech Function |
