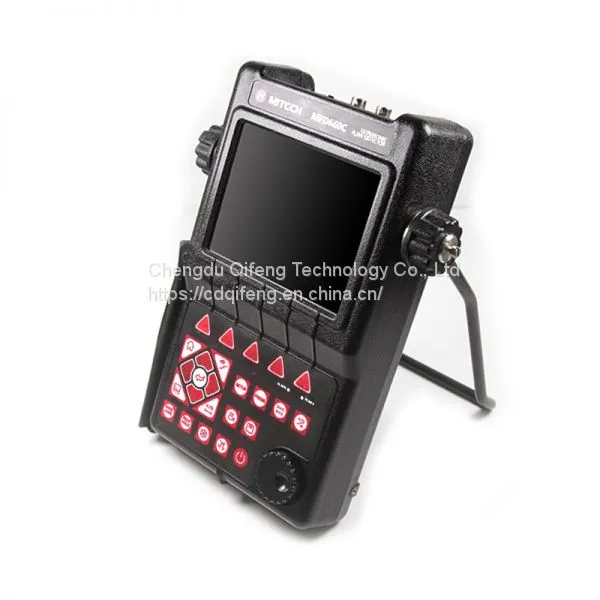

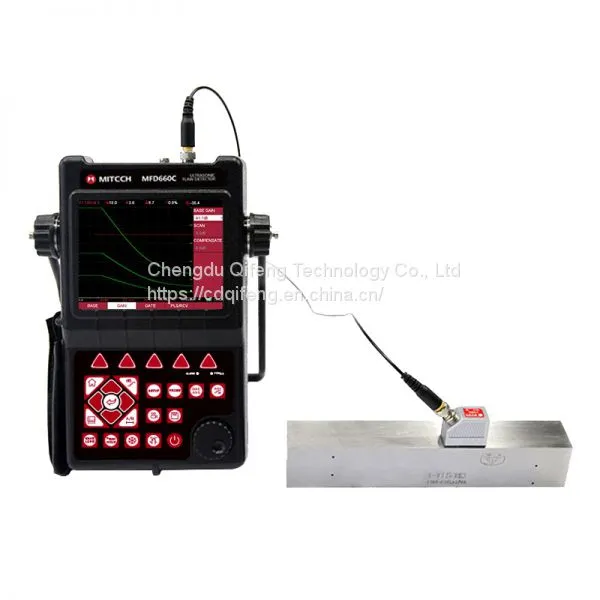

MFD660C portable digital ultrasonic flaw detector
Product Overview
MFD660C intelligent digital ultrasonic flaw detector has a lot of advantages like unique design, sophisticated manufacturing, convenient operation, powerful function. It had received customers' favored since its inception. It can test, orient, evaluate and diagnose various flaws such as crack, lard, air hole in workpiece’s interior swiftly and accurately without any destruction. With full digital 640X480 TFT LCD display, it can select the operating interface style and the LCD brightness according to environment. With humanizing interface design, the waveform show delicately. It can find the defects clearly in full screen. Single hand capable for holding operation, the curve making, probe calibration and other conventional operation can be completed automatically. Core processor CPU with 400M main frequency, it can complete the complex run quickly and realize intelligent defect analysis. Low power design with large capacity and high performance lithium ion battery module， it can work more than 10 hours continuously. Full English master-slave menu, emphasizing on user experience, collecting shortcut keys, digital shuttle rotary wheel, cross menu three operating ways in one body, customers with different habits can operate it freely. It supports many languages. Its waterproof, oil proof, dustproof function can achieve IP65 protection level. It is the necessary professional precision instrument for defect detection, quality control, on-line safety monitoring and life evaluation in fields of oil, chemical, metallurgy, shipbuilding, aviation, railways and so on.
Technical Parameters
| Display Resolution | (640×480 pixels) full digital true color TFT LCD |
| Blind Area | 5MM |
| Flaw Sizing | Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection. |
| Weld Figure Feature | Weld Figure feature can be enabled when detecting the weld parts using angle transducer. |
| Auto-Calibration | Automated calibration of transducer zero offset and/or material velocity |
| Memory | be able to store, recall the A-Scan patterns and instrument settings. |
| Flaw Locating | Live display Sound-path, Projection (surface distance), Depth, Amplitude |
| Defect Quantification | directly display the result with db unit |
| Defect characterization | calculate the equivalent size of the flaw easily and quickly to facilitate the judgment of artificia |
| Curved Surface Correction | used to measure the surface distance and depth of defect on a curved surface |
| DAC/AVG | Y |
| AWS D1.1 | one of the AWS（American Welding Society） standards |
| Crack Height Measuring | measure and display the height of a crack found inside the workpiece |
| Magnify Gate | spreading of the gate range over the entire screen width |
| Video Recording | more than 100 hours |
| A Scan Freeze | Display freeze holds waveform and sound path data |
| Coded Echo Color | locate the flaw position |
| B-Scan | display a graphical cross-section of the workpiece |
| Power-Saving Method | low power consumption |
| Protection Level | IP54 |
| Communication Interface | High Speed USB2.0 port |
| DataPro Software | Y |
| Working Language | freely switch between Chinese and English |
| Total Weight | 6.0KG |
| Measuring Range | (0 ~ 9999) mm in steel |
| Bandwidth | 0.5 to 15MHz automatic matching according to the probe frequency |
| Material Velocity | (100 ~ 20000) m / s |
| Dynamic Range | ≥ 36dB |
| Vertical Linear Deviation | ≤ 2.0% |
| Horizontal Linear Deviation | ≤ 0.1% |
| Resolution | > 40dB (5P14) |
| Sensitivity Leavings | 62dB (flat-bottomed deep hole 200mmФ2) |
| Rejection | (0 to 80)% Linear without affecting the linearity and gain |
| Noise Level | ≤ 8% |
| Probe Type | straight beam probe, angle beam probe, dual element probe, through-transmit probe |
| Gates | Wave-getting Gate, Wave-losing Gate, Single Gate Reading, Dual Gate |
| Alarm | Beep Alarm and LED light Alarm |
| Power Supply | DC 9V |
| Working Time | ＞10 hours |
| Overall Dimensions | 280 × 220 × 70(mm) |
| Operating Temperature | (-10 ~ 50) ℃ |
| Relative Humidity | (20 ~ 95)% RH |
| Pulse Energy | 200V, 300V, 400V, 500V selectable, suitable for various probe |
| Pulse Width | (30～510)ns range with continuous adjustment to match the different frequency probes |
| Probe Damping | 200Ω、500Ωs selectable to meet different requirements for resolution and sensitivity. |
| Sampling | 10 digits AD Converter at the sampling speed of 200MHz, waveform of highly fidelity. |
| Rectification | Positive half wave, negative half wave, full wave, RF |
| Gate Reading | optional for single gate and double gate reading mode, both peak and edge can trigger it |
| Gain | 0 dB to 110 dB adjustable in selectable steps 0.1 dB, 1 dB, 2dB and 6dB |
| Transducer Connections | BNC or LEMO |
