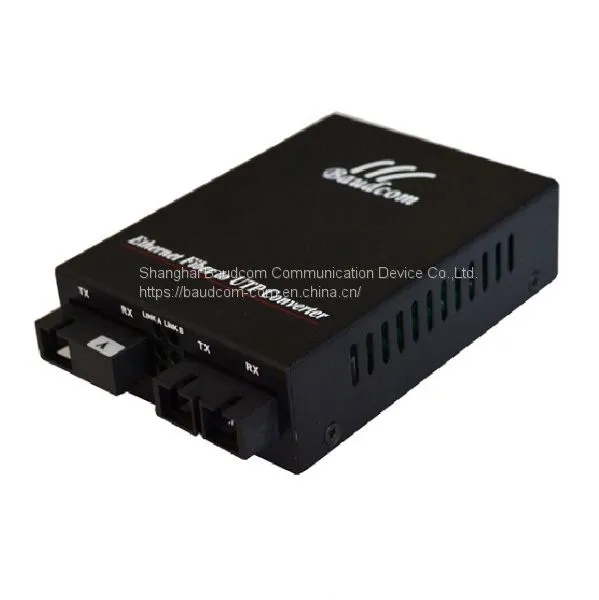

Help CenterDual Fiber to Single Fiber Media Converter for 10/100/1000M 155M/622M/STM-1/STM-4
Related Products
-
155M Multimode to Single Mode Fiber Media ConverterUS$ 23 - 33MOQ: 1 Piece -
10G SFP+ to SFP+ Fiber Converter OEO 3R RepeaterUS$ 400 - 500MOQ: 1 Piece
-
Standalone SFP+ to UTP 10G Media ConverterUS$ 600 - 700MOQ: 1 Piece
-
Single Mode to Multimode SFP Fiber Mode ConverterUS$ 17 - 27MOQ: 1 Piece
-
Huawei GPON ONT HG8245 With 2POTS + 4GE + 1USB + 1Wi-FiUS$ 30 - 50MOQ: 1 Unit
Features
supporting dual fiber to single fiber double directions transmission;
Comply with any agreement between different rates.
Fulfilling medium convert between single mode fiber and multi-mode fiber or extending fiber transmission distance,
Supporting wavelength be 850nm,1310nm or 1550nm.
Supporting medium convert between 100M fast speed Ethernet, 1000M Ethernet, 155M~1.25G ATM, SDH or extending transmission distance.
The longest transmission distance of multi-mode is 2KM; The longest transmission distance of single-mode is 120KM.
As optical receiving and sending model with good optical character, electrical character, date transmits steady, and it can work for long time..
The transmission of optical mode 155M is above 30db and optical mode 1.25G is above 25db.
Specification:
Optical interface: SC,FC or ST (optional).
optical fiber type:
dual fiber:
multi-mode 850nm or 1300nm: 50/125um, 62.5/125um
single-mode 1310nm: 8.3/125um,8.7/125um,9/125um,10/125um
single fiber: Single-mode,8.3/125um,8.7/125um,9/125um,10/125um,wavelength :1310/1550nm
Transmission distance: multimode with 2KM, single mode up to 120KM.
Transmission rate: 10/100Mbps/155Mbps/622 Mbps/1000 Mbps/1.25Gbps/2.5Gbps
Indicator light: it indicates power supply's condition , also suggests single-fiber and multi-fiber link condition.
Power supply
Operating temperature: 0C~+50℃
Storage temperature: -20 C~+70℃
Ordering information
| BD-DS | dual fiber to single fiber converter,dual fiber,1310nm,SC,20KM,single fiber,1310nm/1550nm,SC,20KM,power AC220V or DC48V |
