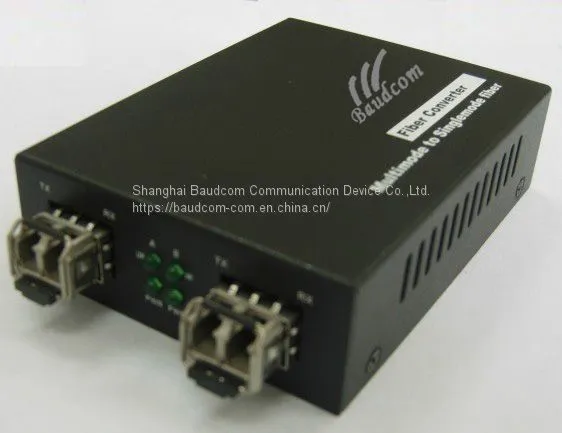

Single Mode to Multimode SFP Fiber Mode Converter
US$ 17 - 27
/ Piece
1 Piece(Min. Order)
- any port in China
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
2 Ports PON OEO Amplifier GPON Repeater
-
FTTX FTTH 2 PON Ports GEPON OLT
-
Fiber to Home New Version Cost Effective 8Ports GPON OLT
-
7-inch 1310/1550nm 24/22dB OTDR Optical Time Domain Reflectometer
-
Pre-polished SC Field Assembly Connector Fast Connector
-
Pre-polished FC Field Assembly Connector Fast Connector
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BD-MS/SFP |
Product Description
Functions
The single mode to multimode SFP fiber mode converter is the ability to convert any signaling rate, from 155Mbps to 1.25Gbps, being an Universal Fiber Converter - ideal for any communication standard like: Fast and Giga Ethernet, STM-1 and STM-4, OC-1, OC-3, OC-12 and OC-24, FDDI or Fibre Channel.
The fiber mode converter is to fulfill optical signal transparent transmission through medium between single-mode fiber and multimode fiber, or it can also extend single-mode transmission distance.
The Fiber Converter is the state of the art versatile optical fiber media converter for 1000Base-SX/LX/LHX/ZX, WDM /CWDM to 1000Base-SX/LX/LHX/ZX or WDM/CWDM. The fiber optical converter can accomodate any type of miniGBIC (SFP) optical modules, either multimode or singlemode type, being a perfect choice for applications requiring change from multimode to singlemode fiber operation or to single strand WDM fiber needs.
The fiber mode converter is offering unparalleled flexibility and easy migration from short-haul to long haul fiber connections by simply changing the optical SFP module.
The fiber mode converter can be used also as a repeater, to extend fiber optic communication transmission distance, working as a 2R device (reshape and re-amplify).
The fiber mode converter can be used also as a repeater, to extend fiber optic communication transmission distance, working as a 2R device (reshape and re-amplify).
Features
optical fiber interface: two SFP slots supporting multi-rate up to 1.25Gbps
optical fiber type:
multimode:50/125um,62.5/125um,100/140um;wavelength:850or1310nm
Single-mode:8.3/125um,8.7/125um,9/125um,10/125um,wave length :1310 or 1550nmTransmission rate: multi-rate OC1, OC3 (155Mbps), OC12 (622 Mbps), OC24(1.25Gbps), STM-1, STM-4, FDDI, Fibre Channel 1G, Fast ethernet(10/100Mbps) and Gigabit Ethernet(1000 Mbps) rates supported
Transmission distance: multi-model with 550m-2KM, single-model up to 120KM.
Indicator: it indicates power supply’s condition , also suggests single-fiber and multi-fiber link condition.
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
option I – DC-48V,range DC-36V~DC-72C
option II – AC220V,range AC165V~AC240V
Power Consumption: <=3 Watts
Environment condition
Operating temperature: 0C~+50℃
Storage temperature: -20 C~+70℃
Operating temperature: 0C~+50℃
Storage temperature: -20 C~+70℃
Relative temperature:95% (uncondensed)
According to different application,freely choose the SFP modules by the following links:
1. 100M/155M SFP module
2. 1000M/1.25G SFP module
2. 1000M/1.25G SFP module
Ordering information
| BD-MS/SFP | SFP fiber mode converter,Multimode to Single mode converter,SFP slot,power AC 220V or DC48 |
