Bi-Directional 10G BIDI SFP+ Optical Transceiver With TX1270/RX1310 20KM

Name: Bi-Directional 10G BIDI SFP+ Optical Transceiver With TX1270/RX1310 20KM
Brand: Baudcom
SKU: 158778986

Bi-Directional 10G BIDI SFP+ Optical Transceiver With TX1270/RX1310 20KM thumbnail-1

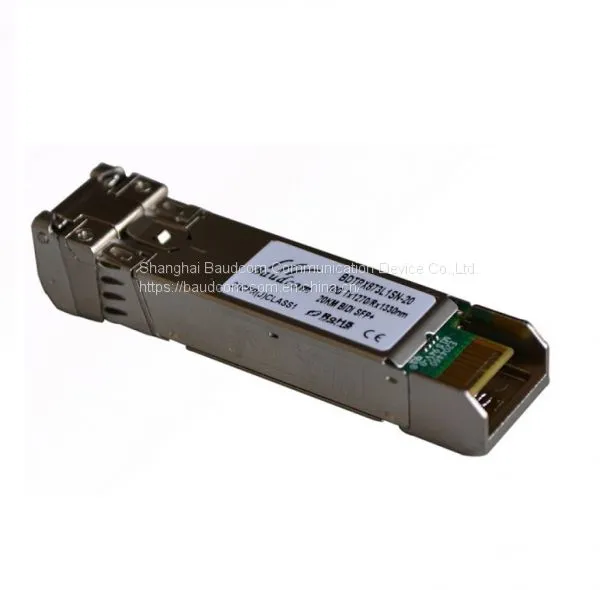

Bi-Directional 10G BIDI SFP+ Optical Transceiver With TX1270/RX1310 20KM photo-1

US$ 50 - 80 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Baudcom

Place of Origin:

China

Model Number:

BDTRX873L1SN-20

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Baudcom

Place of Origin China

Model Number BDTRX873L1SN-20

Product description

The BDTRX837L1SN-10 & BDTRX873L1SN-10 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The 10G SFP+ module BDTRX873L1SN-10 is designed for single mode fiber and operates at a nominal wavelength of 1270nm; BDTRX837L1SN-10 module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC

Ordering information:

BDTRX873L1SN-10	10G SFP+ module,TX 1270nm/RX 1330nm, 10Gbps, 10km, 0C~+70C, LC connector with DDM.
BDTRX837L1SN-10	10G SFP+ module,TX 1330nm/RX 1270nm, 10Gbps, 10km,0C ~ +70C, LC connector with DDM.
BDTRX873L1SN-20	10G SFP+ module,TX 1270nm/RX 1330nm, 10Gbps, 20km, 0C~+70C,LC connector with DDM.
BDTRX837L1SN-20	10G SFP+ module,TX 1330nm/RX 1270nm,10Gbps, 20km, 0C~+70C, LC connector with DDM.

Features

¨ Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
¨ Compliant with SFF-8431,SFF-8432 and IEE802.3ae
¨ Up to 10km on 9/125um SMF

¨ Two types：
A:1270nm DFB Laser transmitter,1330nm receiver
B:1330nm DFB Laser transmitter,1270nm receiver

¨ Digital Diagnostic SFF-8472 Compliant
¨ Operating case temperature 0 ~ 70 °C
¨ RoHS6 compliant (lead free)

Applications

¨ 10GBASE-LR at 10.3125Gbps
¨ Other Optical Links

Absolute Maximum Ratings

These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.

Parameters	Symbol	Min.	Max.	Unit
Supply Voltage	V_CC	-0.5	+3.6	V
Storage Temperature	Tc	-40	+85	°C
Operating Case Temperature	Tc	0	+70	°C
Relative Humidity	RH	0	85	%

Recommended Operating Conditions

Parameter	Symbol	Min.	Typical	Max	Unit
Supply Voltage	V_CC	3.0	3.3	3.6	V
Supply current	Icc		200	300	mA
Operating Case Temperature	T_C	0	25	70	°C
Module Power Dissipation	Pm	-	0.7	1.1	W

Notes:

1. Supply current is shared between VCCTX and VCCRX.

2. In-rush is defined as current level above steady state current requirements.

Optical characteristics (BDTRX873L1SN-10, 1270 DFB & PIN/TIA)

Parameter	Symbol	Min.	Typical	Max	Unit	Ref.
Transmitter
Optical Wavelength	λ_C	1260	1270	1280	nm
Side Mode Suppress Ratio	SMSR	30			dB
Spectral Width(-20dB)	Δλ			1	nm
Average Output Power	P_op	-8.2		0.5	dBm	1
Extinction Ratio	ER	3.5			dB
Eye Mask		Compliant with IEEE 802.3
Transmitter and Dispersion Penalty	TDP			3.2	dB
Average Power of OFF Transmitter				-30	dBm
Relative Intensity Noise	RIN			-128	dB/Hz
Receiver
Average Receiver Power	RSENS			-14.1	dBm	1,2
Receiver Overload	P_MAX			+0.5	dBm
Centre Wavelength	λC	1320		1340	nm
LOS De-Assert	LOS_D			-15	dBm
LOS Assert	LOS_A	-30			dBm
LOS Hysteresis		0.5			dB

Notes:

1. Average Receiver Power (Min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant.

2. Measured with a PRBS231-1 test pattern @10.3125Gbps, BER≦10-12

Optical characteristics (BDTRX837L1SN-10, 1330 DFB & PIN/TIA)

Parameter	Symbol	Min.	Typical	Max	Unit	Ref.
Transmitter
Optical Wavelength	λ_C	1320	1330	1340	nm
Side Mode Suppress Ratio	SMSR	30			dB
Spectral Width(-20dB)	Δλ			1	nm
Average Output Power	P_op	-8.2		0.5	dBm	1,2
Extinction Ratio	ER	3.5			dB
Eye Mask		Compliant with IEEE 802.3
Transmitter and Dispersion Penalty	TDP			3.2	dB
Average Power of OFF Transmitter				-30	dBm
Relative Intensity Noise	RIN			-128	dB/Hz
Receiver
Average Receiver Power	RSENS			-14.1	dBm	2,3
Receiver Overload	P_MAX			+0.5	dBm
Centre Wavelength	λC	1260		1270	nm
LOS De-Assert	LOS_D			-15	dBm
LOS Assert	LOS_A	-30			dBm
LOS Hysteresis		0.5			dB

Notes:

1. Output is coupled into a 9/125um SMF.

2. Average Receiver Power (Min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant.

3. Measured with a PRBS231-1 test pattern @10.3125Gbps, BER≦10-12

Product Tags: 10G Optical Transceiver , SFP Optical Transceiver , 10g SFP+ module
