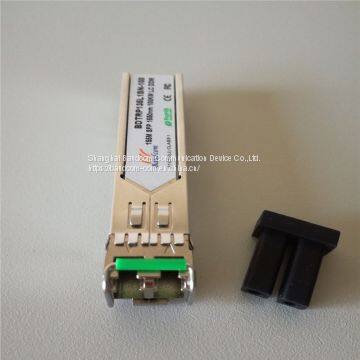

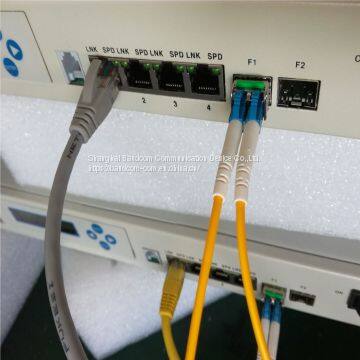

155M 100KM 1550nm Dual Fiber SFP Optical Transceiver
- Shanghai
- T/T L/C D/P D/A Money Gram Credit Card PayPal Other Cash Escrow
- 7 days
You May Like
-
1000Base-T SFP Transceiver Copper RJ45 Module With SGMII Interface
-
2.67G 10KM LC DWDM SFP Optical Transceiver
-
3G HD-SDI Video SFP Optical Transceiver With 1310nm 40km DDM
-
Bi-Directional 10G BIDI SFP+ Optical Transceiver With TX1270/RX1310 20KM
-
10G XFP Optical Transceiver Dual Fiber 1550nm 40km LC DDM
-
EPON OLT OPTICAL SFP MODULE Tx1490nm/Rx1310nm 20km
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BDTRP115L1SN-100 |
Product Description
Description:
The Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP transceiver supports dual data-rate of 155MGbps and from 20km transmission distance with SMF
Block Diagram of Transceiver:
Features:
Hot-Pluggable, Duplex LC Connector
Single +3.3V Power Supply
LVPECL Data Interface
850/1310/1550nm VCSEL/FP/DFB, SM/MM Fiber Optional
Eye Safety, Designed to Meet Laser Class1
Compliant with Telcordia (Bellcore) GR-468-CORE
Application:
Switch to switch interface
High speed I/O for file servers .
Bus extension applications
Electrical Characteristics (TOP = -40 to 85 ℃, VCC = 3.00 to 3.60 Volts)
Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
Supply Voltage | Vcc | 3.00 | 3.60 | V | ||
Supply Current | Icc | 200 | 300 | mA | ||
Transmitter | ||||||
Input differential impedance | Rin | 100 | Ω | 2 | ||
Single ended data input swing | Vin,pp | 250 | 1200 | mV | ||
Transmit Disable Voltage | VD | Vcc – 1.3 | Vcc | V | ||
Transmit Enable Voltage | VEN | Vee | Vee+ 0.8 | V | 3 | |
Transmit Disable Assert Time | 10 | us | ||||
Receiver | ||||||
Single ended data output swing | Vout,pp | 300 | 400 | 800 | mV | 4 |
Data output rise time | tr | 100 | 175 | ps | 5 | |
Data output fall time | tf | 100 | 175 | ps | 5 | |
LOS Fault | VLOS fault | Vcc – 0.5 | VccHOST | V | 6 | |
LOS Normal | VLOS norm | Vee | Vee+0.5 | V | 6 | |
Power Supply Rejection | PSR | 100 | mVpp | 7 | ||
Deterministic Jitter Contribution | RX Δ DJ | 51.7 | ps | 8 | ||
Total Jitter Contribution | RX Δ TJ | 122.4 | ps | |||
Notes:
1. Non condensing.
2. AC coupled.
3. Or open circuit.
4. Into 100 ohm differential termination.
5. 20 – 80 %
6. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
7. All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA), September 14, 2000.
8. Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ and DDJ.
Optical Characteristics (TOP = 0 to70℃, VCC = 3.00 to 3.60 Volts)
Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
Transmitter | ||||||
Output Opt. Power | POUT | -12 | -5 | dBm | 1 | |
Optical Wavelength | λ | 1270 | 1310 | 1360 | nm | 2 |
Spectral Width | σ | 3 | nm | 2 | ||
Optical Modulation Amplitude | OMA | 174 | μW | 2,3 | ||
Optical Rise/Fall Time | tr/ tf | 100 | 160 | ps | 4 | |
RIN | -120 | dB/Hz | ||||
Deterministic Jitter Contribution | TX Δ DJ | 20 | 56.5 | ps | 5 | |
Total Jitter Contribution | TX Δ TJ | 70 | 119 | ps | ||
Optical Extinction Ratio | ER | 10 | dB | |||
Receiver | ||||||
Average Rx Sensitivity | RSENS1 | -37 | -34 | dBm | 6, 7 | |
Overload Power | RxMAX | -3 | dBm | |||
Optical Center Wavelength | λC | 1265 | 1600 | nm | ||
LOS De-Assert | LOSD | -35 | dBm | |||
LOS Assert | LOSA | -45 | dBm | |||
LOS Hysteresis | 0.5 | 3 | dB | |||
Order Information
| No | Parameter | Detailed Description | ||
| 1 | Module type | A =1X9 | D=CWDM | F=SFF |
| G=GBIC | P=SFP | |||
| 2 | Data Rate | 0=52Mb/s | 1=155Mb/s | 2=622Mb/s |
| 4=1.25Gb/s | 6=2.5Gb/s | |||
| 3 | Wavelength | 85=850nm | 13=1310nm | 15=1550nm |
| 35=Tx1310/Rx1550 | ||||
| 53=Tx1550/Rx1310 | ||||
| 4 | Connector | S=SC | L=LC | F=FC |
| R=RJ5 | M=MTRJ | P=Pigtail | ||
| 5 | Temperature | 1=0~70C | 2=-0~85C | |
| 6 | Fiber type | S=Single Mode | M=Multi Mode | |
| 7 | Features | SFP: | D=DDM | N=No DDM |
| SFF: | 1=2X5 | 2=2X10 | ||
| Other: | 3=+3.3V | 5=+5V | ||
| 8 | Distance | Eg: BDTRXXXXXXXX-0.5 Mean:Distance=0.5km ooooBDTRXXXXXXXX-80 Mean:Distance=80km | ||
For example:
Part No. | Specifications | Application | |||||
Type | Data Rate | Distance | Wavelength | Connector | Voltage | ||
BDTRP435L1SD-20 | SFP | 1.25Gb/s | 20km | 1310nm | LC | +3.3V | Gigabit Ethernet |
Ordering information:
| BDTRP113L1SN-20 | 155M SFP Transceiver,20km ,LC connector,1310nm |
| BDTRP113L1SN-40 | 155M optical module,dual fiber,40km ,LC connector,1310nm |
| BDTRP115L1SN-80 | 155M optical SFP,80km,dual fiber,LC connector, 1550nm |
| BDTRP115L1SN-100 | 155M SFP Transceiver,20km ,LC connector,1550nm |
