Help Center10G XFP Optical Transceiver Dual Fiber 1550nm 40km LC DDM
Related Products
-
EPON OLT OPTICAL SFP MODULE Tx1490nm/Rx1310nm 20kmUS$ 15 - 25MOQ: 1 Piece -
GPON SFP OLT Transceiver Tx1490nm/Rx1310nm 20kmUS$ 20 - 30MOQ: 1 Piece
-
EPON GPON ONU Stick SFP Module With MAC InsideUS$ 50 - 70MOQ: 1 Piece
-
PON Transceiver WDM SFP Module With SC PigtailUS$ 15 - 25MOQ: 1 Piece
-
1X9 Package 1.25G Fiber Optical Transceiver Single Mode Fiber ModuleUS$ 6 - 12MOQ: 1 Piece
Description
● 10G 1550nm XFP transceivers are designed for 10G Ethernet 10G BASE-ER/EW per 802.3ae and 10G SONET OC-192/SDH STM-64, and it can support data-rate from 9.953Gb/s to 11.1Gb/s.Digital diagnostics are available via I2C interface as specified in the XFP MSA.
● The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and telecom applications.
Ordering information:

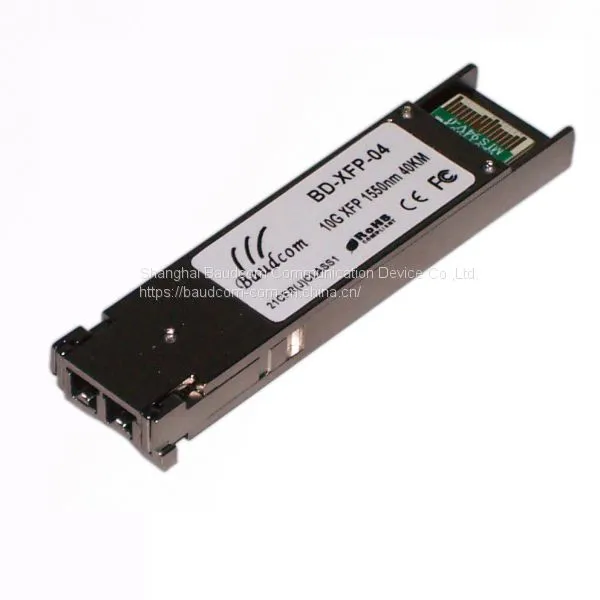

BD-XFP-04
10G XFP module,1550nm,dual fiber,40km, 0C ~ +70C, LC, DDM
BD-XFP-08
10G XFP module,1550nm,dual fiber,80km, 0C ~ +70C, LC, DDM
BD-XFP-01
10G XFP module,1310nm,dual fiber,10km, 0C~+70C, LC, DDM
Features
● Hot pluggable
● Support 9.95Gb/s to 11.1Gb/s bit rates
● Below 3.5W power dissipation
● XFP MSA package with duplex LC connector
● Digital Diagnostic Monitor Interface
● Very low EMI and excellent ESD protection
● Cooled 1550nm EML laser and PIN ROSA
● Up to 40KM for single mode fiber
● operating temperature range 0°C to 70°C
● No reference clock requirement
Applications
● 10G BASE-ER/EW Ethernet
● SONET OC-192/SDH STM-64 line card
● Other optical links
Standard
● XFP MSA compliant
● IEEE802.3ae-2002 compliant
● ITU-T G.959 and G.691 compliant
● GR-253-CORE compliant
● RoHS compliant
Optical Characteristics (TOP = 0 to 70 °C)
Typical Interface Circuit
