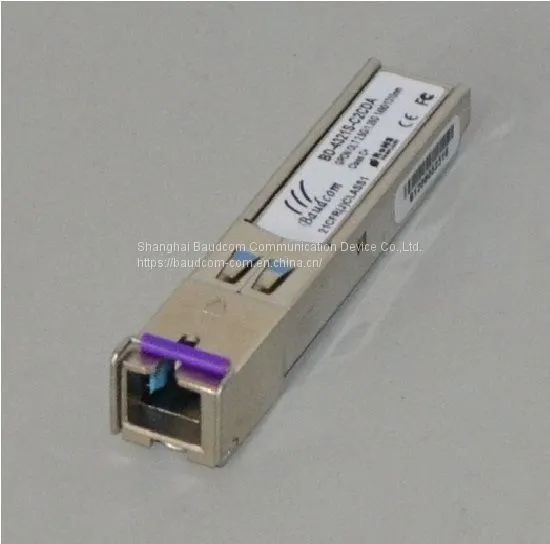

GPON SFP OLT Transceiver Tx1490nm/Rx1310nm 20km

GPON SFP OLT Transceiver Tx1490nm/Rx1310nm 20km thumbnail-1
GPON SFP OLT Transceiver Tx1490nm/Rx1310nm 20km photo-1
US$ 20 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Baudcom
Place of Origin:
China
Model Number:
BD-4321S-C2CDA
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Baudcom
Place of Origin China
Model Number BD-4321S-C2CDA
Description
The BD-4321S-C2CDA transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver. It is optical line terminal(OLT) for ITU-T G984.2. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA).
The transmitter section uses a 1490nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio over all operating temperature range. and is ClassⅠlaser compliant IEC825 and CDRH standards.The receiver has a hermetically packaged burst-mode APD-TIA (trans-impedance amplifier) pre-amplifier and a burst-mode limiting amplifier with LVPECL compatible differential outputs.
The receiver also includes the function of burst mode signal detect output and fast RSSI output which is enabled by a trigger. When the burst optical power is on, the receiver outputs high level; when the burst optical power is off, the receiver outputs low level. Fast RSSI function can satisfy more severe timing demand to monitor the power from any ONU.

Ordering information

BD-4321S-C2CDA Tx1490nm, Rx1310nm , 2.5Gbps/1.25Gbps, Class C+, 20km, 0C~+70C With Digital Diagnostic Monitoring
BD-4321S-C2CDB Tx1490nm,Rx1310nm,2.5Gbps/1.25Gbps,Class B+, 20km,0C~+70C With Digital Diagnostic Monitoring

Features
w Single Fiber Transceiver with single mode SC receptacle
w 1490nm continuous-mode transmitter with DFB laser
w 1310nm burst-mode receiver with APD-TIA
w Can reach 20km transmission distance
w Single 3.3V power supply
w Reset burst-mode receiver design
w Burst mode signal detect output which is LVTTL compatible.
w Burst mode received signal strength indication (RSSI) output
w Complies with ITU-T G984.2 Class C+
w Digital diagnostic interface compliant with SFF-8472 Rev 9.4 ,
w Complies with RoHS directive (2002/95/EC)
