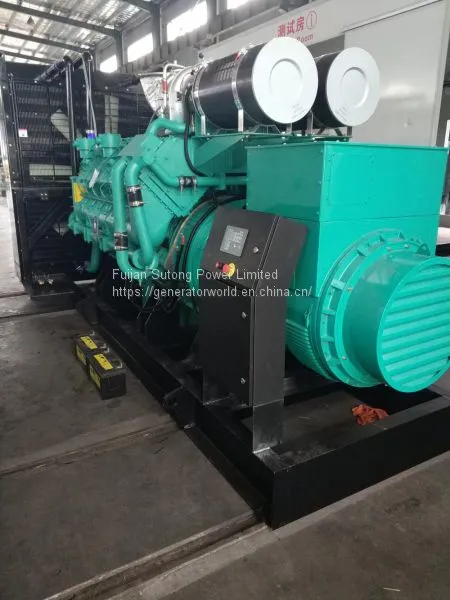

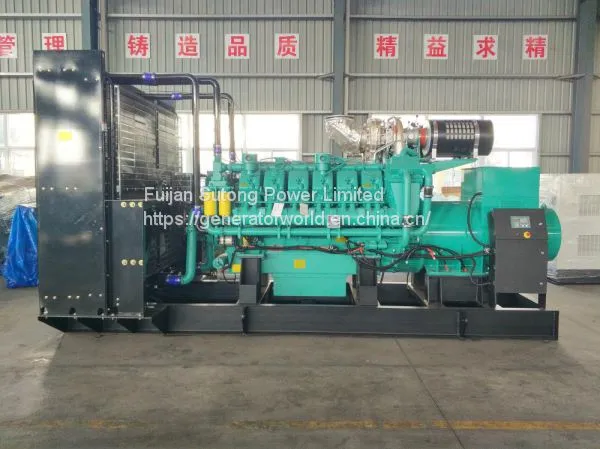

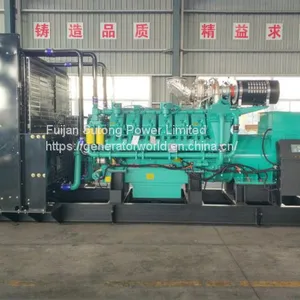

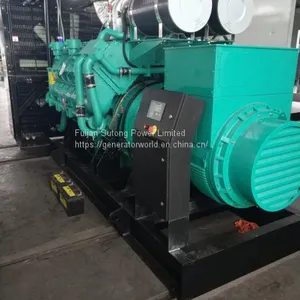

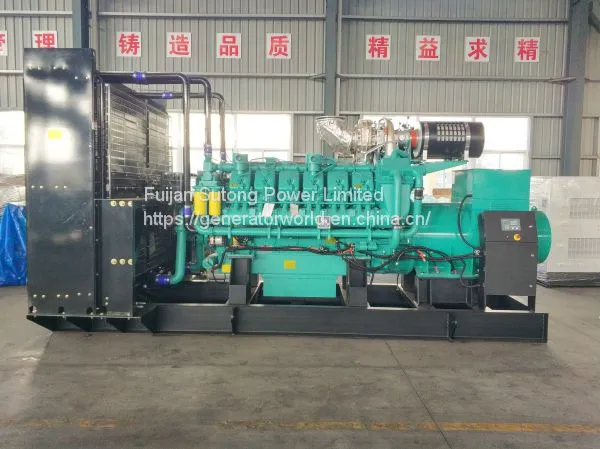

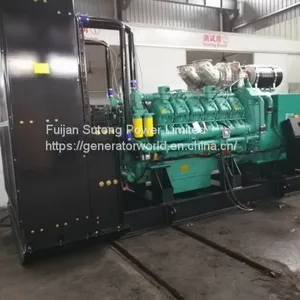

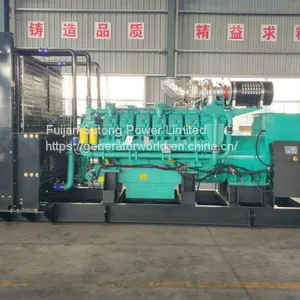

1500kVA Googol Diesel Generator Powered by Googol Engine
US$ 80000 - 150000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Sutong Power
Place of Origin:
China
Model Number:
ST-G1650
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
15 days
Related Products
-
Prime 1200kW Googol Diesel GeneratorUS$ 80000 - 150000MOQ: 1 Set -
15kVA Yangdong Diesel GeneratorUS$ 2000 - 3600MOQ: 1 Set
-
10kW Kubota Diesel Generator Origin Japan Kubota EngineUS$ 3000 - 7000MOQ: 1 Set
-
60Hz 12kW Diesel Generator Powered by Yangdong Diesel EngineUS$ 2000 - 5000MOQ: 1 Set
-
200kW Cummins Generator Three Phase 50HzUS$ 15000 - 25000MOQ: 1 Set
Brand Name
Sutong Power
Place of Origin
China
Model Number
ST-G1650
Rated Current
2381.6A
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50Hz
Rated Voltage
400/230V
Rated Power
1500kVA / 1200kW
1500kVA Googol Diesel Generator Powered by Googol Engine
Genset Specifications:
| Diesel Generator Set | |||||||
| Model | ST-G1650 | ||||||
| Standby Output (50Hz) | 1650kVA / 1320kW | ||||||
| Prime Ouptut (50Hz) | 1500kVA / 1200kW | ||||||
| STANDARD FEATURES | |||||||
| Supply Scope | |||||||
|
1. Engine with Googol brand model QTA3240G5
|
|||||||
| 2. Alternator with Sutong Power brand model S404G1200 | |||||||
| 3. Automatic Start / Stop control panel | |||||||
| 4. Dry type air fillter, fuel filter, oil filter | |||||||
| 5. 24V D.C automatic battery charger. | |||||||
| 6. Max. 50 degree celsius radiator | |||||||
| 7. Batteries, rack and cable | |||||||
| 8. Ripple flex exhaust pipe, flange and muffler | |||||||
| 9. Circuit breaker | |||||||
| 10. 2500A ATS Cabinet | |||||||
| 11. Complete users' manual | |||||||
| DIESEL GENERATOR RATINGS | |||||||
| Voltage (V) | Frequency (Hz) | Phase | Standby Amps. (A) | Standby Output | Prime Output | ||
| kVA | kW | kVA | kW | ||||
| 240/415 | 50 | 3 | 2295.6 | 1650 | 1320 | 1500 | 1200 |
| 230/400 | 50 | 3 | 2381.6 | 1650 | 1320 | 1500 | 1200 |
| 220/380 | 50 | 3 | 3133.7 | 1650 | 1320 | 1500 | 1200 |
| Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 6-hours period of operation. | |||||||
| Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating. | |||||||
| SALE PROMISES | |||||||
| 1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested. | |||||||
| 2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first. | |||||||
| 3. Service and parts are avaiable from Sutong Power or distributors in your location. | |||||||
Engine & Alternator Features:
| Diesel Generator Set | |||||||
| ENGINE SPECIFICATION | |||||||
| Manufacturer | Googol Power-Tech Co.，Ltd | ||||||

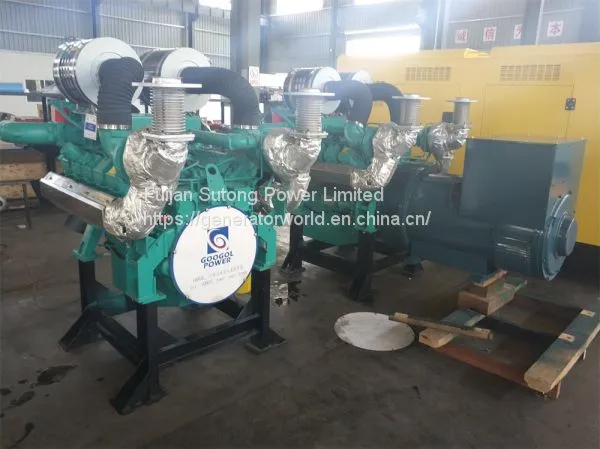

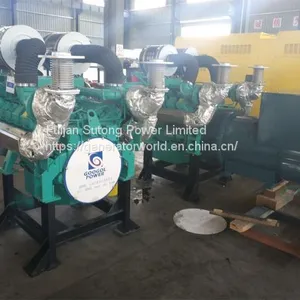

| Engine Model | QTA3240G5 | ||||||
| Engine Type | 12-Cylinder Diesel | ||||||
| Aspiration | Turbocharged and Air-Water After Cooled | ||||||
| Cooling Method | Water Cooling | ||||||
| Governor | Electric | ||||||
| Compression Ratio | 13.5:1 | ||||||
| Engine Max. Output at rate 1500R.P.M. | kWm | 1466 | |||||
| BHP | 1964 | ||||||
| Displacement | Liters | 53.1 | |||||
| Engine Speed | R.P.M. | 1500 | |||||
| Bore x Stroke | mm | 170 x 195 | |||||
| Fuel Comsunption at 100% load | Liters / H | 305 | |||||
| Coolant Capacity | Liters | 100 | |||||
| Intake Air Flow at rate output | Liter / S | 2350 | |||||
| Exhaust Gas Temp. at rate output | °C | 575 | |||||
| Exhaust Gas Flow at rate output | Liter / S | 5950 | |||||
| ALTERNATOR SPECIFICATION | |||||||
| Manufacturer | Fujian Sutong Power Limited | ||||||
| Model | S404G1200 | ||||||
| Rate Output | kW | 1200 | |||||
| Rate Speed | R.P.M. | 1500 | |||||
| Rate Frequency | Hz | 50 | |||||
| Altitude | M | ≤1000 | |||||
| Alternator Type | Single bearing, brushless type | ||||||
| Connection Type | Three phase, four wire | ||||||
| Protection Grade | IP23 | ||||||
| Insulation Class | H | ||||||
| Voltage Regulation | AVR | ||||||
| Standards | Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards. | ||||||
Controller Panel Features:
| Diesel Generator Set | |||||||
| CONTROL PANEL | |||||||
| Control supervision and protection panel is mounted on | |||||||
| the genset base frame. |
|
||||||
| The control panel is equipped as follows: | |||||||
| Automatic Control Panel | |||||||
| Control panel: | |||||||
| -- Control with AMF module | |||||||
| -- Static with auto. battery charger | |||||||
| -- Emergency stop push button | |||||||
| -- ATS Connection | |||||||
| a) Generator set controller model HGM 6120N features: | c) Alarms: | ||||||
| -- The module is used to monitor the generator set | -- Over and Under Speed | ||||||
| start & stop. | -- Low and High Battery Voltage. | ||||||
| -- Micro-processor based design | -- Start and Stop Failure | ||||||
| -- Monitors engine performance and AC power output | -- Charge Fail | ||||||
| -- LED alarm indication and Sound alarm. | -- Over Current | ||||||
| -- Under / Over Generator Voltage | |||||||
| b) Metering via LED display: | -- Low Oil Pressure | ||||||
| -- Mains voltage: Uab, Ubc, Uca | -- Emergency Stop | ||||||
| -- Generator voltage: Uab, Ubc, Uca | -- High Engine Temperature | ||||||
| -- Generator current: Ua, Ub, Uc | -- Over Load | ||||||
| -- Generator temp.: ℃/℉ both display | |||||||
| -- Generator frequency: Hz | d) LED Indications | ||||||
| -- Generator active power: kW | Four configurable LED's like: | ||||||
| -- Generator starts count: 999999 times (Max) | -- Generator available | ||||||
| -- Generator pressure: kPa/Psi/Bar both display | -- Generator on load | ||||||
| OPTIONAL EQUIPMENTS | |||||||
| -- Daily Fuel Tank | -- Parallel Panel | -- Remote Control Panel | -- Soundproof Type | ||||
| -- Engine Heater | -- Permanent Magnet | -- Auto. Transfer Switch | -- Trailer Type | ||||
| -- Water Heater | Generator (PMG) | -- Switch Box | -- Spare Parts | ||||
Dimensions
| Diesel Generator Set | |||||||
| DIMENSION AND WEIGHT | |||||||
| Open TYPE DESIGN | |||||||
|
|
|
||||||
| --The complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame. | |||||||
| -- Antivibration pads are fixes between the engine / alternator feet and base frame. | |||||||
| -- Base frame design incorporates an integral fuel tank (Up to 750kVA) | |||||||
| -- The generating set can be lifted or carefully pushed / pulled by the base frame. | |||||||
| DIMENSIONS OF DIESEL GENERATOR SET | |||||||
| Open-type Dimension (mm) | L5600 x W2200 x H2500 | Open-type Weight | 8140kg | ||||
| Soundproof Dimemsion (mm) | - | Soundproof type Weight | - | ||||
| SILENT TYPE DESIGN | |||||||
|
|
|||||||
| Fujian Sutong Power Limited | |||||||
| Tieling Industrial Zone Phase II,Minhou, Fuzhou, Fujian, China | |||||||
| Mob: 0086-15705934540 E-mail: rockylin5426@hotmail.com | |||||||
