Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 200kW Cummins Generator Three Phase 50Hz
200kW Cummins Generator Three Phase 50Hz
US$ 15000 - 25000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Sutong Power
Model Number:
ST-C275
Rated Current:
496.9A
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
10 days
Related Products
-
1000kVA/ 800kW Diesel Generator Powered by Cummins EngineUS$ 75000 - 90000MOQ: 1 Unit -
150kW Prime Cummins Diesel Generator Silent TypeUS$ 10000 - 18000MOQ: 1 Set
-
80kW Generators Powered by Yuchai Brand Diesel Engine Open Type VersionUS$ 6000 - 11000MOQ: 1 Set
-
500kVA Industrial Generator Back-up Powered by Cummins Engine Couple With Stamford AlternatorUS$ 25000 - 50000MOQ: 1 Set
-
100kVA Cummins Diesel Generating Set With Copy Stamford AlternatorUS$ 6000 - 15000MOQ: 1 Set
Brand Name
Sutong Power
Model Number
ST-C275
Rated Current
496.9A
Output Type
AC Single Phase
Speed
1500 rpm
Frequency
50Hz
Rated Voltage
230/400V
Rated Power
200kW / 250kVA
200kW Cummins Generator Three Phase 50Hz
Specification
| Diesel Generator Set | |||||||
| Model | ST-C275 | ||||||
| Standby Output (50Hz) | 275kVA / 220kW | ||||||
| Prime Ouptut (50Hz) | 250kVA / 200kW | ||||||
| STANDARD FEATURES | |||||||
| Supply Scope | |||||||
| 1. Engine with Cummins brand model 6LTAA8.9-G2 | |||||||
| 2. Alternator with Stamford brand model UCDI 274 K | |||||||
| 3. Automatic Start / Stop control panel | |||||||
| 4. Dry type air fillter, fuel filter, oil filter | |||||||
| 5. 24V D.C automatic battery charger. | |||||||
| 6. Max. 50 degree celsius radiator | |||||||
| 7. Batteries, rack and cable | |||||||
| 8. Ripple flex exhaust pipe, flange and muffler | |||||||
| 9. 3 Pole ABB Circuit breaker | |||||||
| 10. Fuel tank | |||||||
| 11. Complete users' manual | |||||||
| DIESEL GENERATOR RATINGS | |||||||
| Voltage (V) | Frequency (Hz) | Phase | Standby Amps. (A) | Standby Output | Prime Output | ||
| kVA | kW | kVA | kW | ||||
| 240/415 | 50 | 3 | 382.6 | 275 | 220 | 250 | 200 |
| 230/400 | 50 | 3 | 396.9 | 275 | 220 | 250 | 200 |
| 220/380 | 50 | 3 | 417.8 | 275 | 220 | 250 | 200 |
| Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 12-hours period of operation. | |||||||
| Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating. | |||||||
| SALE PROMISES | |||||||
| 1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested. | |||||||
| 2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first. | |||||||
| 3. Service and parts are avaiable from Sutong Power or distributors in your location. | |||||||
| Diesel Generator Set | |||||||

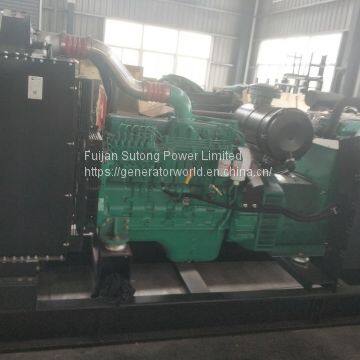

| ENGINE SPECIFICATION | |||||||
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. | ||||||
| Engine Model | 6LTAA8.9-G2 | ||||||
| Engine Type | 6-Cylinder Diesel | ||||||
| Aspiration | Turbocharged & Air-Air Intercooled | ||||||
| Cooling Method | Water Cooling | ||||||
| Governor | Electric | ||||||
| Compression Ratio | 16.6:1 | ||||||
| Engine Rat. Output at rate 1500R.P.M. | kWm | 220 | |||||
| BHP | 295 | ||||||
| Displacement | Liters | 8.9 | |||||
| Engine Speed | R.P.M. | 1500 | |||||
| Bore x Stroke | mm | 114 x 145 | |||||
| Fuel Comsunption at 100% load | Liters / H | 53 | |||||
| Oil Pan Capacity | Liters | 11.1 | |||||
| Intake Air Flow at rate output | Liter / S | 248 | |||||
| Exhaust Gas Temp. at rate output | °C | 430 | |||||
| Exhaust Gas Flow at rate output | Liter / S | 584 | |||||
| ALTERNATOR SPECIFICATION | |||||||
| Manufacturer | Cummins Generator Technology | ||||||
| Model | UCDI 274 K | ||||||
| Rate Output | kVA | 250 | |||||
| Rate Speed | R.P.M. | 1500 | |||||
| Rate Frequency | Hz | 50 | |||||
| Altitude | M | ≤1000 | |||||
| Alternator Type | Single bearing, brushless type | ||||||
| Connection Type | 3 phase, 4 wire | ||||||
| Protection Grade | IP23 | ||||||
| Insulation Class | H | ||||||
| Voltage Regulation | AVR | ||||||
| Standards | Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards. | ||||||
| Diesel Generator Set | |||||||
| CONTROL PANEL | |||||||
| Control supervision and protection panel is mounted on | |||||||
| the genset base frame. |
|
||||||
| The control panel is equipped as follows: | |||||||
| Automatic Control Panel | |||||||
| Control panel: | |||||||
| -- Automatic genset controller | |||||||
| -- Auto Mains (Utility) Failure Control Module |
|||||||
| -- Automatic Start Control Module |
|||||||
| -- Emergency stop push button | |||||||
| a) Generator set controller model DSE7320 features: | c) Alarms: | ||||||
| -- The module is used to monitor the generator set | -- Over and Under Speed | ||||||
| start & stop. | -- Low and High Battery Voltage. | ||||||
| -- Micro-processor based design | -- Start and Stop Failure | ||||||
| -- Monitors engine performance and AC power output | -- Charge Fail | ||||||
| -- LED alarm indication and Sound alarm. | -- Over Current | ||||||
| -- Under / Over Generator Voltage | |||||||
| b) Metering via LED display: | -- Low Oil Pressure | ||||||
| -- Mains voltage: Uab, Ubc, Uca | -- Emergency Stop | ||||||
| -- Generator voltage: Uab, Ubc, Uca | -- High Engine Temperature | ||||||
| -- Generator current: Ua, Ub, Uc | -- Over Load | ||||||
| -- Generator temp.: ℃/℉ both display | |||||||
| -- Generator frequency: Hz | d) LED Indications | ||||||
| -- Generator active power: kW | Four configurable LED's like: | ||||||
| -- Generator starts count: 999999 times (Max) | -- Generator available | ||||||
| -- Generator pressure: kPa/Psi/Bar both display | -- Generator on load | ||||||
| OPTIONAL EQUIPMENTS | |||||||
| -- Daily Fuel Tank | -- Parallel Panel | -- Remote Control Panel | -- Soundproof Type | ||||
| -- Engine Heater | -- Permanent Magnet | -- Auto. Transfer Switch | -- Trailer Type | ||||
| -- Water Heater | Generator (PMG) | -- Switch Box | -- Spare Parts | ||||
| Diesel Generator Set | |||||||
| DIMENSION AND WEIGHT | |||||||

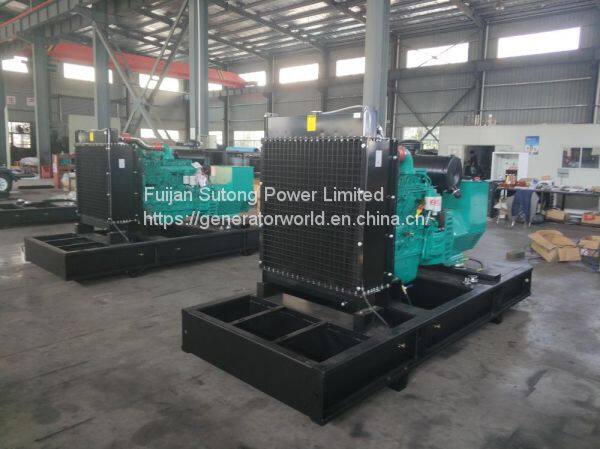

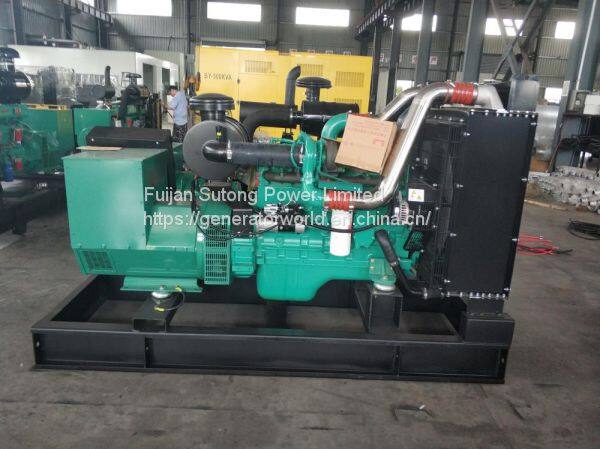

| OPEN TYPE DESIGN | |||||||
|
|
|
||||||
| --The complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame. | |||||||
| -- Antivibration pads are fixes between the engine / alternator feet and base frame. | |||||||
| -- Base frame design incorporates an integral fuel tank (Up to 750kVA) | |||||||
| -- The generating set can be lifted or carefully pushed / pulled by the base frame. | |||||||
| DIMENSIONS OF DIESEL GENERATOR SET | |||||||
| Open-type Dimension (mm) | L2600 x W1000 x H1700 | Open-type Weight | 2200kg | ||||
| Soundproof Dimemsion (mm) | L3300 x W1120 x H1900 | Soundproof type Weight | 2800kg | ||||
| SOUNDPROOF CANOPY DESIGN | |||||||
|
|
|
||||||
