80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version

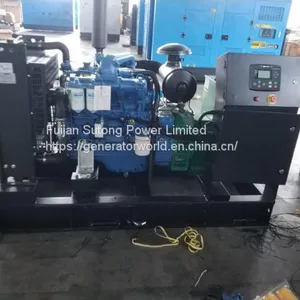

80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version thumbnail-1
80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version photo-1
US$ 6000 - 11000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Sutong Power
Place of Origin:
China
Model Number:
ST-YC110S
Contact Supplier Request Quote Chat Now
Fuijan Sutong Power Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sutong Power
Place of Origin China
Model Number ST-YC110S

80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version


Genset Parameters:

Diesel Generator Set
Model ST-YC110S
Standby Output   (50Hz) 110kVA / 88kW
Prime Ouptut (50Hz) 100kVA / 80kW



STANDARD FEATURES
Supply Scope



1. Engine with   Yuchai brand model YC6B135Z-D20



2. Alternator with   Sutong Power brand model S274C80



3. Automatic Start /   Stop control panel



4. Dry type air   fillter, fuel filter, oil filter



5. 24V D.C automatic   battery charger.



6. Max. 50 degree   celsius radiator



7. Batteries, rack   and cable



8. Ripple flex   exhaust pipe, flange and muffler



9. Delixi Circuit   breaker



10. Fuel Tank



11. Complete users'   manual











DIESEL GENERATOR   RATINGS
Voltage (V) Frequency   (Hz) Phase Standby   Amps. (A) Standby   Output Prime   Output
kVA kW kVA kW
240/415 50 3 153.0 110 88 100 80
230/400 50 3 158.8 110 88 100 80
220/380 50 3 167.1 110 88 100 80
Prime Output: Prime   output is available for an unlimited number of annual hours in variable load   application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload   capability is avaiable for a period of 1 hour with a 6-hours period of   operation.
Standby Output: The   standby output is applicable for supplying emergency power for duration of a   utility power interruption. No overlad, utility parallel or negotiated outage   operation capability is available at this rating.






SALE PROMISES
1. Sutong Power   provides a full line of brand new and high quality products. Every unit is   strictly factory tested.
2. Warranty is   according to our standard conditions: 12 months or 1,000 running hours,   subject to which comes first.
3. Service and parts   are avaiable from Sutong Power or distributors in your location.


Engine & Alternator Specifications:

Diesel Generator Set
ENGINE SPECIFICATION
Manufacturer Guangxi Yuchai Machinery   Group Co., Ltd
Engine Model YC6B135Z-D20
Engine Type 6-Cylinder Diesel
Aspiration Turbocharged
Cooling Method Water Cooling
Governor Electric
Compression Ratio 17.5:1
Engine   rate Output at rate 1500R.P.M. kWm 90
BHP 121
Displacement Liters 6.871
Engine Speed R.P.M. 1500
Bore x Stroke mm 108 x 125
Fuel Comsunption at   100% load Liters / H 20.9
Coolant Capacity Liters 12.5
Intake Air Flow at   rate output Liter / S N.A
Exhaust Gas Temp. at   rate output °C N.A
Exhaust Gas Flow at   rate output Liter / S N.A






ALTERNATOR SPECIFICATION
Manufacturer Fujian Sutong Power Limited
Model S274C80
Rate Output kVA 100
Rate Speed R.P.M. 1500
Rate Frequency Hz 50
Altitude M ≤1000
Alternator Type Single bearing, brushless   type
Connection Type Three phase, four wire
Protection Grade IP23
Insulation Class H
Voltage Regulation AVR
Standards Compliance   with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards.


Smartgen Controller Panel:

Diesel Generator Set
CONTROL PANEL
Control   supervision and protection panel is mounted on


the   genset base frame.













The   control panel is equipped as follows:




Automatic   Control Panel





Control panel:






--   Automatic genset controller





--   Automatic battery charger





--   Emergency stop push button





















a)   Generator set controller model HGM 6110 features:
c) Alarms:

--   The module is used to monitor the generator set
-- Over and Under Speed
    start & stop.



-- Low and High Battery   Voltage.
--   Micro-processor based design

-- Start and Stop Failure
--   Monitors engine performance and AC power output
-- Charge Fail

--   LED alarm indication and Sound alarm.

-- Over Current





-- Under / Over Generator   Voltage
b)   Metering via LED display:

-- Low Oil Pressure
--   Mains voltage: Uab, Ubc, Uca

-- Emergency Stop
--   Generator voltage: Uab, Ubc, Uca

-- High Engine   Temperature
--   Generator current: Ua, Ub, Uc

-- Over Load

-- Generator temp.: ℃/℉ both   display




--   Generator frequency: Hz


d) LED Indications
--   Generator active power: kW


Four configurable LED's   like:
--   Generator starts count: 999999 times (Max)

-- Generator available
--   Generator pressure: kPa/Psi/Bar both display

-- Generator on load


Optionals:

-- Daily Fuel Tank --   Parallel Panel --   Remote Control Panel -- Soundproof Type
--   Engine Heater -- Permanent Magnet -- Auto. Transfer Switch -- Trailer Type
--   Water Heater     Generator (PMG) -- Switch Box
-- Spare Parts
