10kW Kubota Diesel Generator Origin Japan Kubota Engine

10kW Kubota Diesel Generator Origin Japan Kubota Engine thumbnail-1
10kW Kubota Diesel Generator Origin Japan Kubota Engine thumbnail-2
10kW Kubota Diesel Generator Origin Japan Kubota Engine thumbnail-3
10kW Kubota Diesel Generator Origin Japan Kubota Engine thumbnail-4
10kW Kubota Diesel Generator Origin Japan Kubota Engine photo-1
10kW Kubota Diesel Generator Origin Japan Kubota Engine photo-2
10kW Kubota Diesel Generator Origin Japan Kubota Engine photo-3
10kW Kubota Diesel Generator Origin Japan Kubota Engine photo-4
US$ 3000 - 7000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Sutong Power
Place of Origin:
China
Model Number:
ST-KT13H
Contact Supplier Request Quote Chat Now
Fuijan Sutong Power Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sutong Power
Place of Origin China
Model Number ST-KT13H
Rated Current 31.3
Output Type AC Three Phase
Speed 1800rpm
Frequency 60Hz
Rated Voltage 220V
Rated Power 12kVA

12kVA Kubota Diesel Generator Origin Japan Kubota Engine

Specifications

Diesel Generator Set
Model ST-KT13H
Standby Output   (60Hz) 13kVA / 10.4kW
Prime Ouptut (60Hz) 12kVA / 9.6kW



STANDARD FEATURES
Supply Scope



1. Engine with   Kubota brand model D1105



2. Alternator with   Stamford brand model PI 044E



3. Automatic Start /   Stop control panel



4. Dry type air   fillter, fuel filter, oil filter



5. 24V D.C automatic   battery charger.



6. Max. 50 degree   celsius radiator



7. Batteries, rack   and cable



8. Ripple flex   exhaust pipe, flange and muffler



9. Circuit breaker



10. Fuel tank



11. Complete users'   manual








DIESEL GENERATOR   RATINGS
Voltage (V) Frequency   (Hz) Phase Standby   Amps. (A) Standby   Output Prime   Output
kVA kW kVA kW
220 60 1 31.3 13 10.4 12 9.6
- - - - - - - -
- - - - - - - -
Prime Output: Prime   output is available for an unlimited number of annual hours in variable load   application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload   capability is avaiable for a period of 1 hour with a 12-hours period of   operation.
Standby Output: The   standby output is applicable for supplying emergency power for duration of a   utility power interruption. No overlad, utility parallel or negotiated outage   operation capability is available at this rating.






SALE PROMISES
1. Sutong Power   provides a full line of brand new and high quality products. Every unit is   strictly factory tested.
2. Warranty is   according to our standard conditions: 12 months or 1,000 running hours,   subject to which comes first.
3. Service and parts   are avaiable from Sutong Power or distributors in your location.


Diesel Generator Set
ENGINE SPECIFICATION
Manufacturer Kubota Corporation (Japan)
Engine Model D1105
Engine Type 3-Cylinder Diesel
Aspiration Naturally Aspirated
Cooling Method Water Cooling
Governor Mechanic
Compression Ratio N.A
Engine   Rat. Output at rate 1800R.P.M. kWm 10.1
BHP 14
Displacement Liters 1.123
Engine Speed R.P.M. 1800
Bore x Stroke mm 78 x 78.4
Fuel Comsunption at   100% load Liters / H 3
Oil Pan Capacity Liters 6.9
Intake Air Flow at   rate output Liter / S 65
Exhaust Gas Temp. at   rate output °C 480
Exhaust Gas Flow at   rate output Liter / S 100






ALTERNATOR SPECIFICATION
Manufacturer Cummins Generator Technologies
Model PI 044E
Rate Output kVA 12
Rate Speed R.P.M. 1800
Rate Frequency Hz 60
Altitude M ≤1000
Alternator Type Single bearing, brushless   type
Connection Type Single phase, 0.8
Protection Grade IP23
Insulation Class H
Voltage Regulation AVR
Standards Compliance   with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards.


Diesel Generator Set
CONTROL PANEL
Control   supervision and protection panel is mounted on



the   genset base frame.













The   control panel is equipped as follows:




Automatic   Control Panel





Control panel:






--   Manual、Automatic、Stop





--   Static with auto. battery charger




--   Emergency stop push button




-- Alarming














a)   Generator set controller model HGM6110N features:
c) Alarms:

--   The module is used to monitor the generator set
-- Over and Under Speed
    start & stop.



-- Low and High Battery   Voltage.
--   Micro-processor based design

-- Start and Stop Failure
--   Monitors engine performance and AC power output
-- Charge Fail

--   LED alarm indication and Sound alarm.

-- Over Current





-- Under / Over Generator   Voltage
b)   Metering via LED display:

-- Low Oil Pressure
--   Mains voltage: Uab, Ubc, Uca

-- Emergency Stop
--   Generator voltage: Uab, Ubc, Uca

-- High Engine   Temperature
--   Generator current: Ua, Ub, Uc

-- Over Load

--   Generator temp.: ℃/℉ both display




--   Generator frequency: Hz


d) LED Indications
--   Generator active power: kW


Four configurable LED's   like:
--   Generator starts count: 999999 times (Max)

-- Generator available
--   Generator pressure: kPa/Psi/Bar both display

-- Generator on load








OPTIONAL EQUIPMENTS
--   Daily Fuel Tank -- Parallel Panel -- Remote Control Panel -- Soundproof Type
--   Engine Heater -- Permanent Magnet -- Auto. Transfer Switch -- Trailer Type
--   Water Heater     Generator (PMG) -- Switch Box
-- Spare Parts


Diesel Generator Set
DIMENSION AND WEIGHT

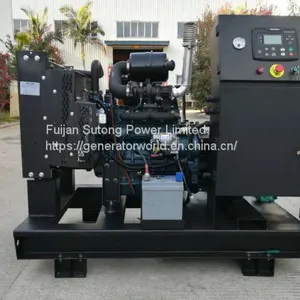

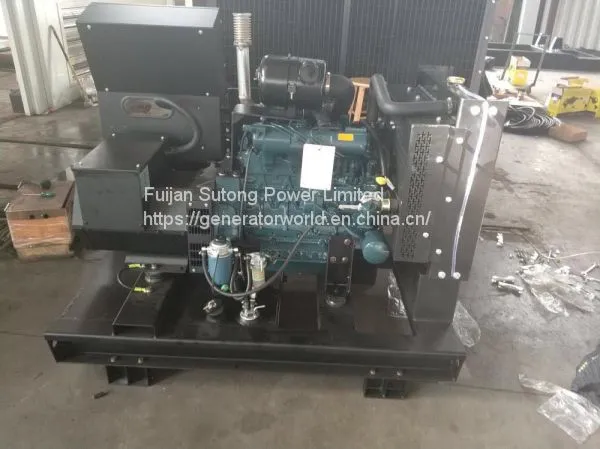

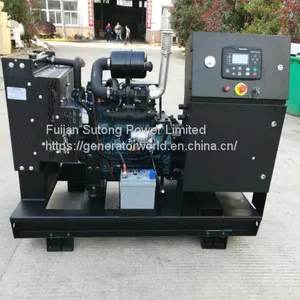

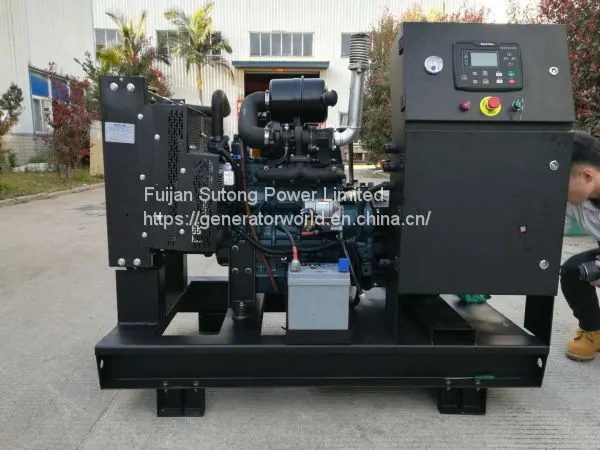

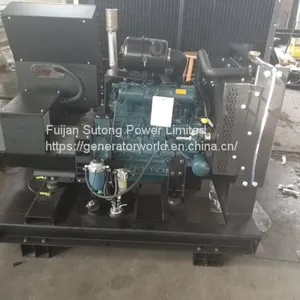

OPEN TYPE DESIGN














































































--The complete   generator set is mounted as whole on a heavy-duty fabricated, steel base   frame.
-- Antivibration   pads are fixes between the engine / alternator feet and base frame.
-- Base frame design   incorporates an integral fuel tank (Up to 750kVA)
-- The generating   set can be lifted or carefully pushed / pulled by the base frame.
DIMENSIONS OF DIESEL   GENERATOR SET
Open-type Dimension   (mm) L1200 x W600 x H850
Open-type Weight
600kg
Soundproof DimeNsion   (mm) L1700 x W750 x H1000 Soundproof type   Weight
750kg

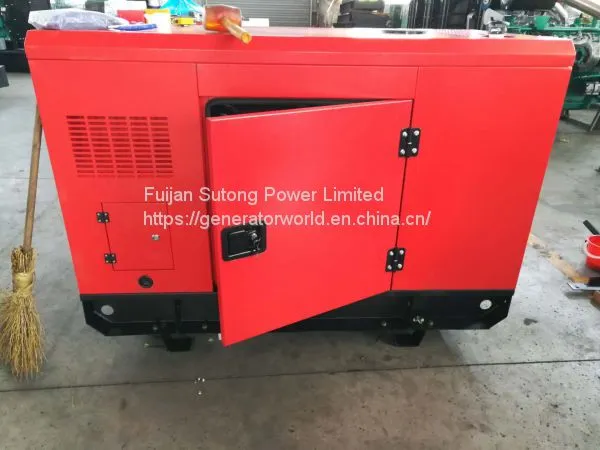

SOUNDPROOF CANOPY   DESIGN






































































Fujian Sutong Power Limited
Tieling Industrial Zone Phase II,Minhou, Fuzhou, Fujian, China
Mob: 0086-15705934540           E-mail: rockylin5426@hotmail.com
