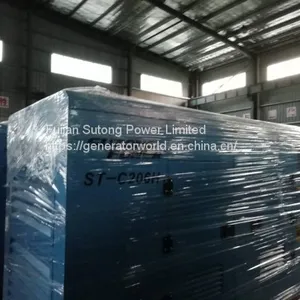

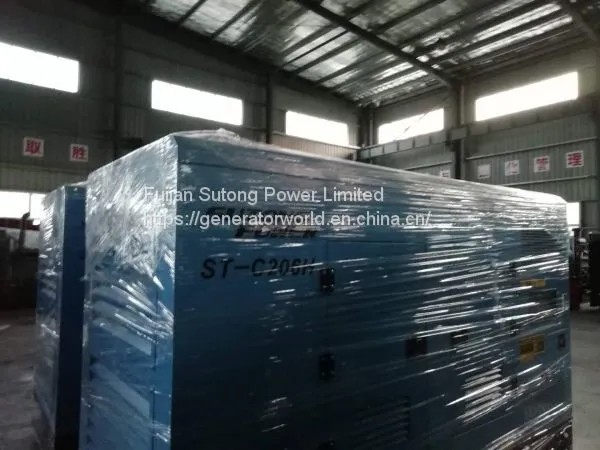

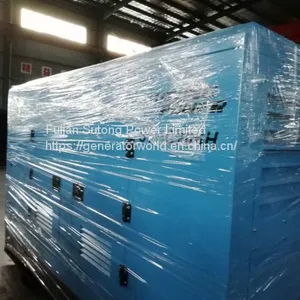

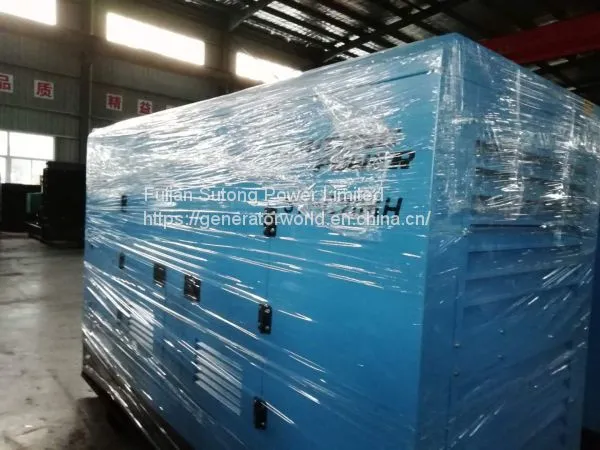

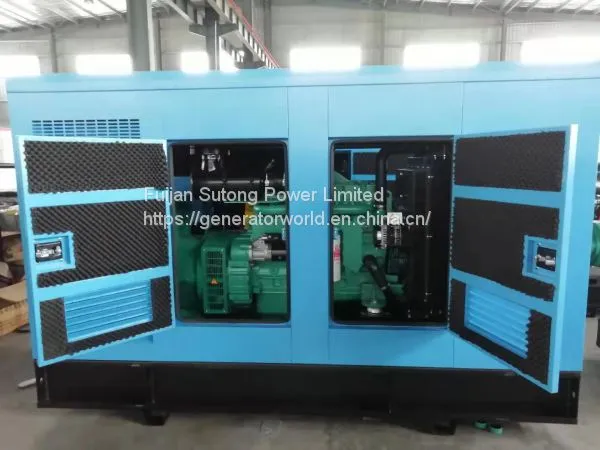

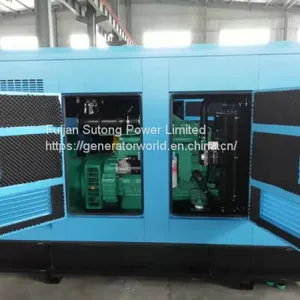

150kW Prime Cummins Diesel Generator Silent Type
USD $10000 - $18000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Fuzhou Port
- T/T L/C
- 15 days
You May Like
- 80kW Generators Powered by Yuchai Brand Diesel Engine Open Type Version
- 500kVA Industrial Generator Back-up Powered by Cummins Engine Couple with Stamford Alternator
- 100kVA Cummins Diesel Generating Set with Copy Stamford Alternator
- 560kW SDEC Diesel Engine Generator with 1250A Change-Over Switch for Building Back-up Power Supply
- 400kW Cummins Diesel Generator / 20kVA to 1500kVA Cummins Series Genset
- 35kW Ricardo Diesel Generator Without Canopy with 8 Hours Fuel Tank
Product Details
Brand Name: | Sutong Power | Place of Origin: | China | Model Number: | ST-C206 |
Rated Current: | 520.5 | Output Type: | AC Three Phase | Speed: | 1800rpm |
Frequency: | 60Hz | Rated Voltage: | 120/208V | Rated Power: | 150kW / 188kVA |
Product Description
150kW Prime Cummins Diesel Generator Silent Type
Diesel Generator Set
Diesel Generator Set | |||||||
Model | ST-C206H | ||||||
Standby Output (60Hz) | 206kVA / 165kW | ||||||
Prime Ouptut (60Hz) | 188kVA / 150kW | ||||||
STANDARD FEATURES | |||||||
Supply Scope | |||||||
1. Engine with Cummins brand model 6CTA8.3-G2 | |||||||
2. Alternator with Sutong Power brand model S274G128 | |||||||
3. Automatic Start / Stop control panel | |||||||
4. Dry type air fillter, fuel filter, oil filter | |||||||
5. 24V D.C automatic battery charger. | |||||||
6. Max. 50 degree celsius radiator | |||||||
7. Batteries, rack and cable | |||||||
8. Ripple flex exhaust pipe, flange and muffler | |||||||
9. Circuit breaker | |||||||
10. Fuel tank | |||||||
11. Complete users' manual | |||||||
DIESEL GENERATOR RATINGS | |||||||
Voltage (V) | Frequency (Hz) | Phase | Prime Amps. (A) | Standby Output | Prime Output | ||
kVA | kW | kVA | kW | ||||
120/208 | 60 | 3 | 520.5 | 206 | 165 | 188 | 150 |
- | - | - | - | - | - | - | - |
- | - | - | - | - | - | - | - |
Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 6-hours period of operation. | |||||||
Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating. | |||||||
SALE PROMISES | |||||||
1. Sutong Power provides a full line of brand new and high quality products. Every unit is strictly factory tested. | |||||||
2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first. | |||||||
3. Service and parts are avaiable from Sutong Power or distributors in your location. |
Engine & Alternator Data
Diesel Generator Set | |||||||
ENGINE SPECIFICATION | |||||||
Manufacturer | Dongfeng Cummins Engine Co., Ltd | ||||||
Engine Model | 6CTA8.3-G2 | ||||||
Engine Type | 6-Cylinder Diesel | ||||||
Aspiration | Turbocharged and After-Cooled | ||||||
Cooling Method | Water Cooling | ||||||
Governor | Electric | ||||||
Compression Ratio | 17.3:1 | ||||||
Engine Rate. Output at rate 1800R.P.M. | kWm | 170 | |||||
BHP | 228 | ||||||
Displacement | Liters | 8.3 | |||||
Engine Speed | R.P.M. | 1800 | |||||
Bore x Stroke | mm | 114 x 135 | |||||
Fuel Comsunption at 100% load | Liters / H | 42 | |||||
Coolant Capacity | Liters | 12.3 | |||||
Intake Air Flow at rate output | Liter / S | 226 | |||||
Exhaust Gas Temp. at rate output | °C | 500 | |||||
Exhaust Gas Flow at rate output | Liter / S | 586 | |||||
ALTERNATOR SPECIFICATION | |||||||
Manufacturer | Fujian Sutong Power Limited | ||||||
Model | S274G128 | ||||||
Rate Output | kW | 150 | |||||
Rate Speed | R.P.M. | 1800 | |||||
Rate Frequency | Hz | 60 | |||||
Altitude | M | ≤1000 | |||||
Alternator Type | Single bearing, brushless type | ||||||
Connection Type | Three phase, four wire | ||||||
Protection Grade | IP23 | ||||||
Insulation Class | H | ||||||
Voltage Regulation | AVR | ||||||
Standards | Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards. | ||||||
Controller
Diesel Generator Set | |||||||
CONTROL PANEL | |||||||
Control supervision and protection panel is mounted on | |||||||
the genset base frame. | |||||||
The control panel is equipped as follows: | |||||||
Automatic Control Panel | |||||||
Control panel: | |||||||
-- Control with AMF module | |||||||
-- Static with auto. battery charger | |||||||
-- Emergency stop push button | |||||||
-- Remote Control by SGM card | |||||||
a) Generator set controller model HGM 6110C features: | c) Alarms: | ||||||
-- The module is used to monitor the generator set | -- Over and Under Speed | ||||||
start & stop. | -- Low and High Battery Voltage. | ||||||
-- Micro-processor based design | -- Start and Stop Failure | ||||||
-- Monitors engine performance and AC power output | -- Charge Fail | ||||||
-- LED alarm indication and Sound alarm. | -- Over Current | ||||||
-- Under / Over Generator Voltage | |||||||
b) Metering via LED display: | -- Low Oil Pressure | ||||||
-- Mains voltage: Uab, Ubc, Uca | -- Emergency Stop | ||||||
-- Generator voltage: Uab, Ubc, Uca | -- High Engine Temperature | ||||||
-- Generator current: Ua, Ub, Uc | -- Over Load | ||||||
-- Generator temp.: ℃/℉ both display | |||||||
-- Generator frequency: Hz | d) LED Indications | ||||||
-- Generator active power: kW | Four configurable LED's like: | ||||||
-- Generator starts count: 999999 times (Max) | -- Generator available | ||||||
-- Generator pressure: kPa/Psi/Bar both display | -- Generator on load | ||||||
OPTIONAL EQUIPMENTS | |||||||
-- Daily Fuel Tank | -- Parallel Panel | -- Remote Control Panel | -- Soundproof Type | ||||
-- Engine Heater | -- Permanent Magnet | -- Auto. Transfer Switch | -- Trailer Type | ||||
-- Water Heater | Generator (PMG) | -- Switch Box | -- Spare Parts |
Dimension
Diesel Generator Set | |||||||
DIMENSION AND WEIGHT | |||||||

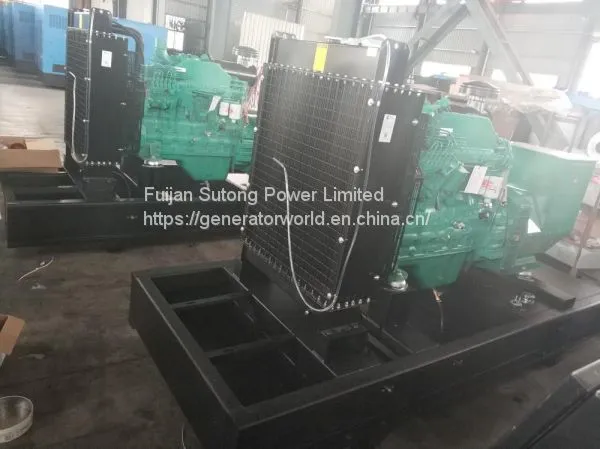

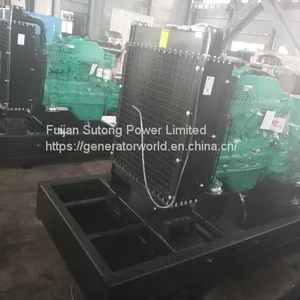

OPEN TYPE DESIGN | |||||||
--The complete generator set is mounted as whole on a heavy-duty fabricated, steel base frame. | |||||||
-- Antivibration pads are fixes between the engine / alternator feet and base frame. | |||||||
-- Base frame design incorporates an integral fuel tank (Up to 750kVA) | |||||||
-- The generating set can be lifted or carefully pushed / pulled by the base frame. | |||||||
DIMENSIONS OF DIESEL GENERATOR SET | |||||||
Open-type Dimension (mm) | L2300 x W1000 x H1300 | Open-type Weight | 1600kg | ||||
Soundproof Dimemsion (mm) | L2950 x W1300 x H1900 | Soundproof type Weight | 2500kg | ||||

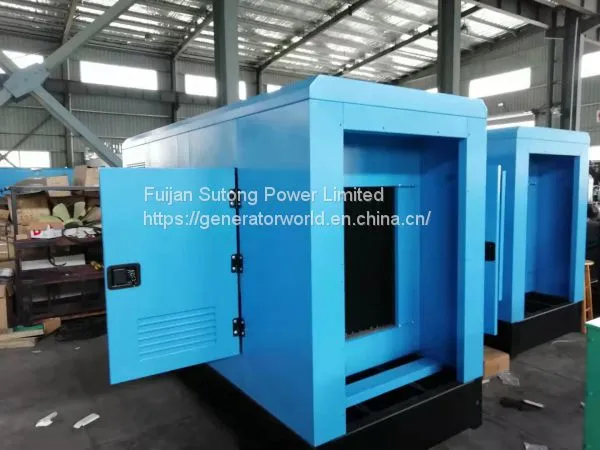

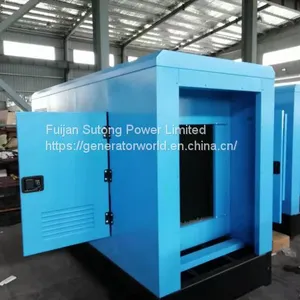

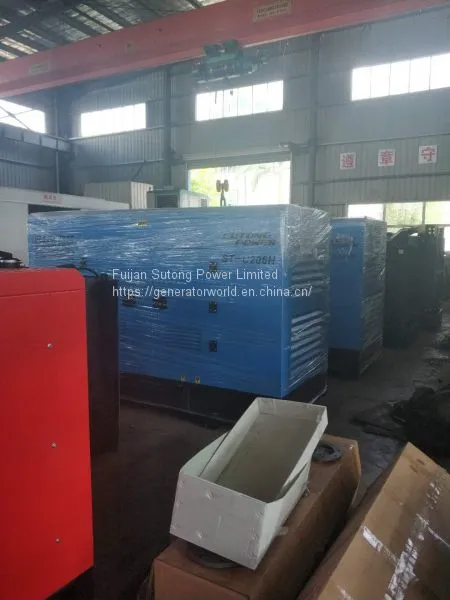

SOUNDPROOF CANOPY DESIGN | |||||||
Fujain Sutong Power Limited | |||||||
Tieling Industrial Zone Phase II,Minhou, Fuzhou, Fujian, China | |||||||
Mob: 0086-15705934540 E-mail: rockykin5426@hotmail.com |
