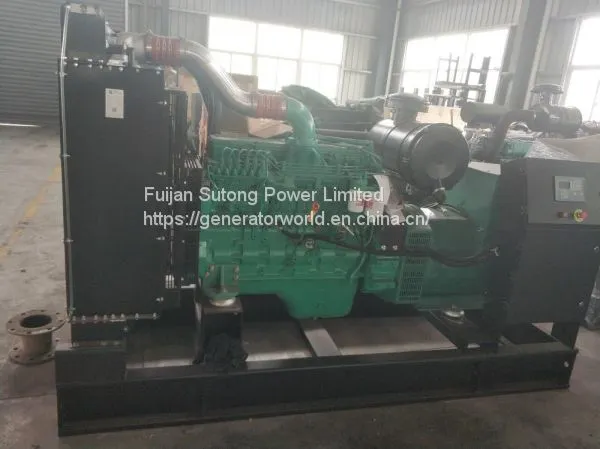

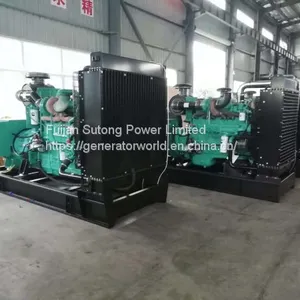

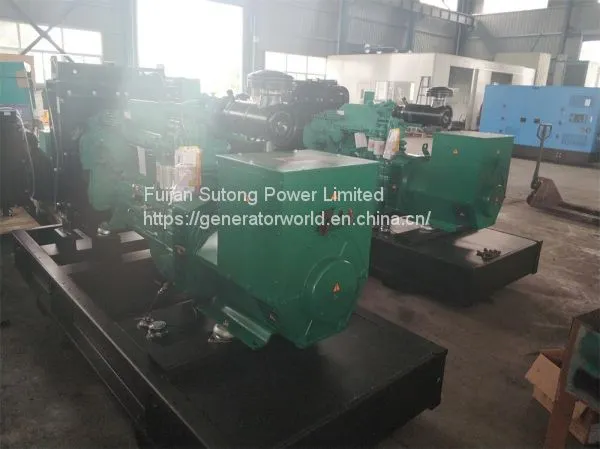

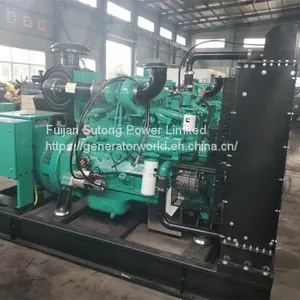

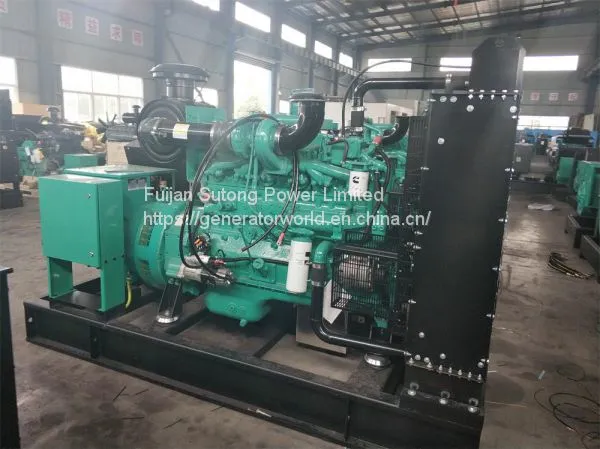

400kW Cummins Diesel Generator / 20kVA to 1500kVA Cummins Series Genset
1.Product Application
a)Diesel engine with all accessories,3 filter,electric systems
b)Alternator,Steel structure,Fan and water tank cooling system
c)Flange connector,On-board control panel,Set shock absorber
d)Air cleaner,fuel cleaner,oil cleaner,MCCB air conservation switch
e)12/24V starting motor and charge engine,12/24V starting accumulator and Battery line
1) Engine: Cummins diesel engine, Water-cooled & Air-cooled
2) Alternator: Stamford Alternator, Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF
3) 3 phase 4 wires / 1 phase 2 wires
4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V
Diesel Generator Set |
||||||||
Model |
ST-C550 |
|||||||
Standby Output (50Hz) |
550kVA / 440kW |
|||||||
Prime Ouptut (50Hz) |
500kVA / 400kW |
|||||||
STANDARD FEATURES |
||||||||
Supply Scope |
||||||||
1. Engine with Cummins brand model KTA19-G3A |
||||||||
2. Alternator with Stamford brand model HCI 544C |
||||||||
3. Automatic Start / Stop control panel |
||||||||
4. Dry type air fillter, fuel filter, oil filter |
||||||||
5. 24V D.C automatic battery charger. |
||||||||
6. Max. 50 degree celsius radiator |
||||||||
7. Batteries, rack and cable |
||||||||
8. Ripple flex exhaust pipe, flange and muffler |
||||||||
9. Circuit breaker |
||||||||
10. 8 Hours Fuel tank Capacity |
||||||||
11. Complete users' manual |
||||||||
DIESEL GENERATOR RATINGS |
||||||||
Voltage (V) |
Frequency (Hz) |
Phase |
Prime Amps. (A) |
Standby Output |
Prime Output |
|||
kVA |
kW |
kVA |
kW |
|||||
240/415 |
50 |
3 |
695.6 |
550 |
440 |
500 |
400 |
|
230/400 |
50 |
3 |
721.7 |
550 |
440 |
500 |
400 |
|
220/380 |
50 |
3 |
759.7 |
550 |
440 |
500 |
400 |
|
Prime Output: Prime output is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload capability is avaiable for a period of 1 hour with a 6-hours period of operation. |
||||||||
Standby Output: The standby output is applicable for supplying emergency power for duration of a utility power interruption. No overlad, utility parallel or negotiated outage operation capability is available at this rating. |
||||||||
SALE PROMISES |
||||||||
1. Sutong provides a full line of brand new and high quality products. Every unit is strictly factory tested. |
||||||||
2. Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to which comes first. |
||||||||
3. Service and parts are avaiable from Sutong or distributors in your location. |
||||||||
Diesel Generator Set |
||||||
ENGINE SPECIFICATION |
||||||
Manufacturer |
Chongqing Cummins Engine Co., Ltd |
|||||
Engine Model |
KTA19-G3A |
|||||
Engine Type |
6-Cylinder Diesel |
|||||
Aspiration |
Turbocharged and Water Air InterCooled |
|||||
Cooling Method |
Water Cooling |
|||||
Governor |
Electric |
|||||
Compression Ratio |
18.9:1 |
|||||
Engine rate. Output at rate 1500R.P.M. |
kWm |
453 |
||||
BHP |
607 |
|||||
Displacement |
Liters |
18.9 |
||||
Engine Speed |
R.P.M. |
1800 |
||||
Bore x Stroke |
mm |
159 x 159 |
||||
Fuel Comsunption at 100% load |
Liters / H |
99 |
||||
Coolant Capacity |
Liters |
30 |
||||
Intake Air Flow at rate output |
Liter / S |
579 |
||||
Exhaust Gas Temp. at rate output |
°C |
557 |
||||
Exhaust Gas Flow at rate output |
Liter / S |
1604 |
||||
ALTERNATOR SPECIFICATION |
||||||
Manufacturer |
Cummins Generator Technologies |
|||||
Model |
HCI 544C |
|||||
Rate Output |
kVA |
500 |
||||
Rate Speed |
R.P.M. |
1500 |
||||
Rate Frequency |
Hz |
50 |
||||
Altitude |
M |
≤1000 |
||||
Alternator Type |
Single bearing, brushless type |
|||||
Connection Type |
Three phase, four wire |
|||||
Protection Grade |
IP23 |
|||||
Insulation Class |
H |
|||||
Voltage Regulation |
AVR |
|||||
Standards |
Compliance with GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards. |
|||||
Manufacturer reserves the right to make changes in model, technical specification, color, equipment and accessories without prior notice. |
||||||
| Diesel Generator Set | |||||||
| CONTROL PANEL | |||||||
| Control supervision and protection panel is mounted on | |||||||
| the genset base frame. | |||||||
| The control panel is equipped as follows: | |||||||
| Automatic Control Panel | |||||||
| Control panel: | |||||||
| -- Control with AMF module | |||||||
| -- Static with auto. battery charger | |||||||
| -- Emergency stop push button | |||||||
| -- Alarm | |||||||
| a) Generator set controller model HGM 6110 features: | c) Alarms: | ||||||
| -- The module is used to monitor the generator set | -- Over and Under Speed | ||||||
| start & stop. | -- Low and High Battery Voltage. | ||||||
| -- Micro-processor based design | -- Start and Stop Failure | ||||||
| -- Monitors engine performance and AC power output | -- Charge Fail | ||||||
| -- LED alarm indication and Sound alarm. | -- Over Current | ||||||
| -- Under / Over Generator Voltage | |||||||
| b) Metering via LED display: | -- Low Oil Pressure | ||||||
| -- Mains voltage: Uab, Ubc, Uca | -- Emergency Stop | ||||||
| -- Generator voltage: Uab, Ubc, Uca | -- High Engine Temperature | ||||||
| -- Generator current: Ua, Ub, Uc | -- Over Load | ||||||
| -- Generator temp.: ℃/℉ both display | |||||||
| -- Generator frequency: Hz | d) LED Indications | ||||||
| -- Generator active power: kW | Four configurable LED's like: | ||||||
| -- Generator starts count: 999999 times (Max) | -- Generator available | ||||||
| -- Generator pressure: kPa/Psi/Bar both display | -- Generator on load | ||||||
| OPTIONAL EQUIPMENTS | |||||||
| -- Daily Fuel Tank | -- Parallel Panel | -- Remote Control Panel | -- Soundproof Type | ||||
| -- Engine Heater | -- Permanent Magnet | -- Auto. Transfer Switch | -- Trailer Type | ||||
| -- Water Heater | Generator (PMG) | -- Switch Box | -- Spare Parts | ||||
WARRANTY:
Sutong Power Genset Guarantee for one year or 1000 hours (accord to whichever comes first)from ex-factory date. During the guarantee period, our Sutong Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material,except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
