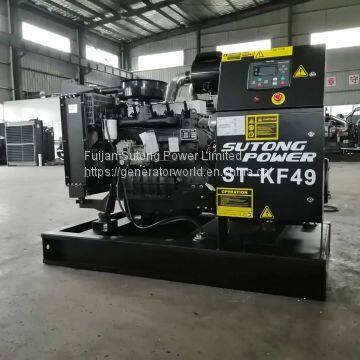

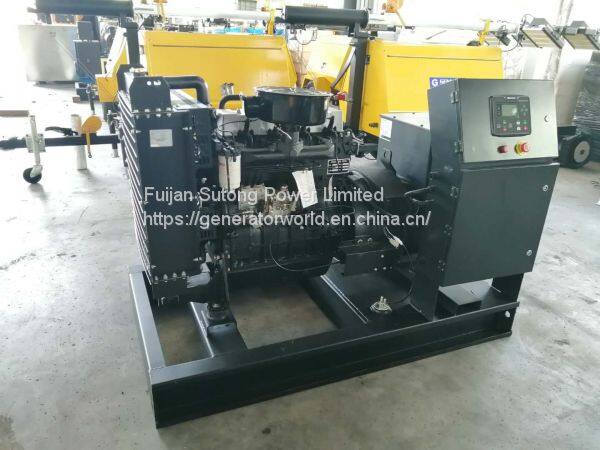

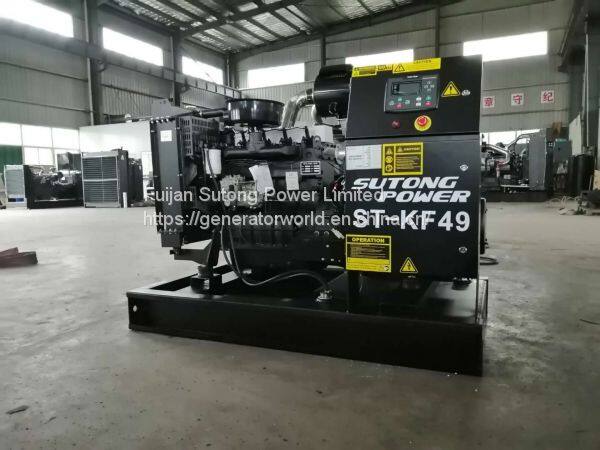

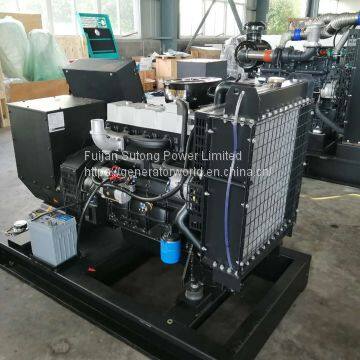

35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank

35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank thumbnail-1
35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank thumbnail-2
35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank thumbnail-3
35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank photo-1
35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank photo-2
35kW Ricardo Diesel Generator Without Canopy With 8 Hours Fuel Tank photo-3
US$ 2000 - 3000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Sutong Power
Place of Origin:
China
Model Number:
ST-KF49
Contact Supplier Request Quote Chat Now
Fuijan Sutong Power Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sutong Power
Place of Origin China
Model Number ST-KF49
Rated Current 70.4 A
Output Type AC Three Phase
Speed 1500 rpm
Frequency 50 Hz
Rated Voltage 400/230 V
Rated Power 400kW

35kW Ricardo Diesel Generator Without Canopy with 8 Hours Fuel Tank


1.Product Application

a)Diesel engine with all accessories, 3 filter,electric systems

b)Alternator, Steel structure, Fan and water tank cooling system
c)Flange connector, On-board control panel, Set shock absorber
d)Air cleaner, fuel cleaner, oil cleaner, MCCB air conservation switch
e)12/24V starting motor and charge engine,12/24V starting accumulator and Battery line


1) Engine: KOFO Ricardo diesel engine, Water-cooled & Air-cooled

2) Alternator: Sutong Power Alternator, Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF

3) 3 phase 4 wires / 1 phase 2 wires

4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V



Diesel Generator   Set

Model

ST-KF49

Standby Output   (50Hz)

49kVA / 39kW

Prime Ouptut   (50Hz)

44kVA / 3kW




STANDARD   FEATURES

Supply Scope




1. Engine with Ricardo   brand model N4100DS-46




2. Alternator   with Sutong Power brand model S224G35




3. Automatic   Start / Stop control panel




4. Dry type air   fillter, fuel filter, oil filter




5. 24V D.C automatic   battery charger.




6. Max. 50   degree celsius radiator




7. Batteries,   rack and cable




8. Ripple flex   exhaust pipe, flange and muffler






9. Circuit   breaker




10. 8 Hours Fuel   tank Capacity




11. Complete   users' manual



















DIESEL GENERATOR   RATINGS

Voltage (V)

Frequency (Hz)

Phase

Prime Amps. (A)

Standby Output

Prime Output

kVA

kW

kVA

kW

240/415

50

3

67.8

49

39

44

35

230/400

50

3

70.4

49

39

44

35

220/380

50

3

74.1

49

39

44

35

Prime Output: Prime output is   available for an unlimited number of annual hours in variable load   application, in accordance with GB/T2820-97 (eqv ISO8528); a 10% overload   capability is avaiable for a period of 1 hour with a 6-hours period of   operation.

Standby Output: The standby   output is applicable for supplying emergency power for duration of a utility   power interruption. No overlad, utility parallel or negotiated outage   operation capability is available at this rating.











SALE PROMISES

1. Sutong   provides a full line of brand new and high quality products. Every unit is   strictly factory tested.

2. Warranty is   according to our standard conditions: 12 months or 1,000 running hours,   subject to which comes first.

3. Service and   parts are avaiable from Sutong or distributors in your location.





Diesel Generator   Set

ENGINE   SPECIFICATION

Manufacturer

Shandong KOFO Power Co., Ltd

Engine Model

N4100DS-46

Engine Type

4-Cylinder Diesel

Aspiration

Natural

Cooling Method

Water Cooling

Governor

Mech

Compression Ratio

16:1

Engine rate.   Output at rate 1500R.P.M.

kWm

46

BHP

62

Displacement

Liters

N.A

Engine Speed

R.P.M.

1500

Bore x Stroke

mm

105 x 125

Fuel Comsunption   at 100% load

Liters / H

11

Coolant Capacity

Liters

13

Intake Air Flow   at rate output

Liter / S

N.A

Exhaust Gas   Temp. at rate output

°C

N.A

Exhaust Gas Flow   at rate output

Liter / S

N.A







ALTERNATOR   SPECIFICATION

Manufacturer

Fujian Sutong Power Co. ltd

Model

S224G35

Rate Output

kW

35

Rate Speed

R.P.M.

1500

Rate Frequency

Hz

50

Altitude

M

≤1000

Alternator Type

Single bearing,   brushless type

Connection Type

Three phase,   four wire

Protection Grade

IP23

Insulation Class

H

Voltage   Regulation

AVR

Standards

Compliance with   GB755, BS5000, NEMA MG1-22, IEC-34, CSA C22-100 and AS1259 Standards.

Manufacturer   reserves the right to make changes in model, technical specification, color, equipment   and accessories without prior notice.




Diesel Generator Set
CONTROL PANEL
Control supervision   and protection panel is mounted on
the genset base   frame.

The control panel   is equipped as follows:
Automatic Control   Panel
Control panel:
-- Control with AMF   module
-- Static with   auto. battery charger
-- Emergency stop   push button
-- Alarm

a)   Generator set controller model HGM 6110 features:
c) Alarms:

--   The module is used to monitor the generator set
-- Over and Under Speed
    start & stop.


-- Low and High Battery   Voltage.
--   Micro-processor based design

-- Start and Stop Failure
--   Monitors engine performance and AC power output
-- Charge Fail

--   LED alarm indication and Sound alarm.

-- Over Current





-- Under / Over Generator   Voltage
b)   Metering via LED display:

-- Low Oil Pressure
--   Mains voltage: Uab, Ubc, Uca

-- Emergency Stop
--   Generator voltage: Uab, Ubc, Uca

-- High Engine   Temperature
--   Generator current: Ua, Ub, Uc

-- Over Load

--   Generator temp.: ℃/℉ both display




--   Generator frequency: Hz


d) LED Indications
--   Generator active power: kW

Four configurable LED's   like:
--   Generator starts count: 999999 times (Max)
-- Generator available
--   Generator pressure: kPa/Psi/Bar both display
-- Generator on load








OPTIONAL EQUIPMENTS
--   Daily Fuel Tank -- Parallel Panel -- Remote Control Panel -- Soundproof Type
--   Engine Heater -- Permanent Magnet -- Auto. Transfer Switch -- Trailer Type
--   Water Heater     Generator (PMG) -- Switch Box
-- Spare Parts

WARRANTY:

Sutong Power Genset Guarantee for one year or 1000 hours (accord to whichever comes first)from ex-factory date. During the guarantee period, our Sutong Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material,except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set




Product Tags: Diesel Generating Set , Ricardo Generator , Ricardo Diesel Generator , 20-1500kVA Generator , 35kW Diesel Generator , Ricardo , 44kkVA Diesel Generator , Generator Set , OPen Type
