Battery Internal safety Short Circuit Test Machine
- 100 Set / Sets per Month
- Shenzhen
- T/T L/C PayPal Other
- 30 days
- automatic toroidal winding machine Replace JOVIL toroidal winder by (SS900B6 series final coil OD 10~81mm)
- Replace RUFF toroidal winder by (SS900B6 series final coil OD 10~80mm)toroid winding machine
- (SS900B6 series) automatic toroidal winding machine
- Replace VC toroidal winder by (SS900B6 series) automatic toroid winding machine
- SS966T 6 spindles automatic fine wire twisting transformer coil winding machine
- SS810 Automatic high torsion electric power transformer coil winding machine
Product Details
Brand Name: | LIK | Place of Origin: | China | Model Number: | LJ-1000A |
Certification: | ISO 9001 | After-sales Service Provided: | Overseas third-party support available | Warranty: | 1 year |
Weight: | about 115kg | Condition: | New | Voltage: | 220V 50HZ/60HZ |
Product Description
Battery Internal Safty Short Circuit Test Machine
Application
This Battery Forced Internal Short Circuit Test Machine is a comprehensive test system that applied for Lithium Battery as well as battery pack & battery cell safety test. This battery tester is designed and manufactured in compliance with GB/IEC/EN/UN38.3/,UL 2054,QC/T 744-2006,QC/T 743-2006 standard. According to the standard requirements, the short circuit device must conforms to the internal resistance range far less than 5mΩ so as to achieve the maximum short circuit current required by the test.
Design description
1.According to the standard requirements, the short circuit device must conforms to the internal resistance range far less than 5mΩ so as to achieve the maximum short circuit current required by the test.
2. It is also need afford the impact of large current, so on the circuit design of the short circuit device we choose industrial DC electromagnetic contactor and all copper terminal and internal copper plate to guide the flow, and wide copper plate improve the heat dissipation effect effectively, make the large current short circuit device more safer, and effectively reduce the loss of the test equipment, and ensure the accuracy of the test data.
Features(Battery Forced Internal Safty Performance Short Circuit Test Instrument)
1. large/High current DC contactor. 1) Long distance connecting and disconnecting DC working voltage to 660V.
2) The rated working current of 1000A DC, with a series magnetic blowing and longitudinal diaphragm ceramic earth extinguisher arc extinguishing system.
3) the overall layout structcure, the electromagnetic system and the main contact arc extinguishing system are fixed on the mounting underframe respectively, with the angle rotating of the clapper type electromagnetic system and the double winding attracting coil, arris pressing device is added to the rotating edges.
4) The main contact is made of copper. The contact resistance is low and the reaction speed is fast.
5) The contactor is reliable, safe, long life and easy maintenance.
2. Remote control
1) Computer remote control. 2) It is reliable, stable, has the fuction of self lock and interlock, strong anti-interference ability and long life.
3. Voltage meter
1) Measurement voltage: 0-100V, to ensure the accuracy of the test.
2) The accuracy of display: F.S + 0.2% RDG + 1digit.
3) The way of action: two-integral method
4. Ammeter
1) Measurement of current: 0-1000A (adjustable)
2) The accuracy of display: F.S + 0.2% RDG + 1digit;
3) The way of action: two-integral method
5. Basic configuration
1) The battery short circuit tester is composed of a large current short circuit contactor, a remote control controller, a voltmeter, an ammeter and so on.
2) must be equipped with accessories: 1000A test cable etc.
6.Test site requirements: This test is dangerous. When testing, please use a separate tester room to test, and open the observation window in the lab, so as to record the voltage and current data when the battery is short circuited.

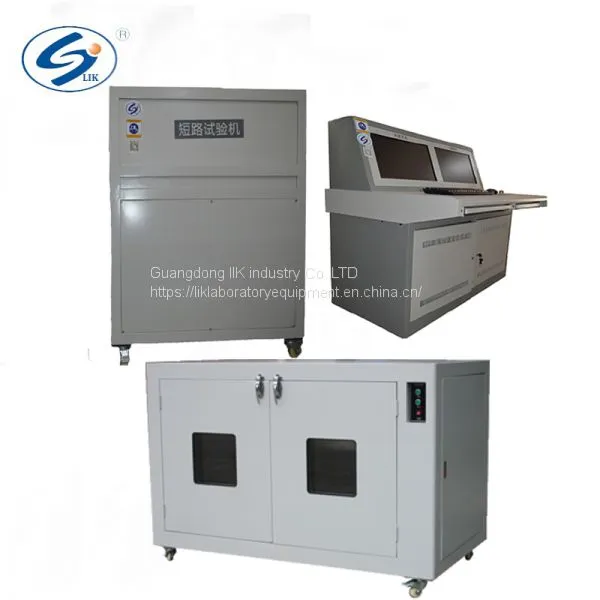

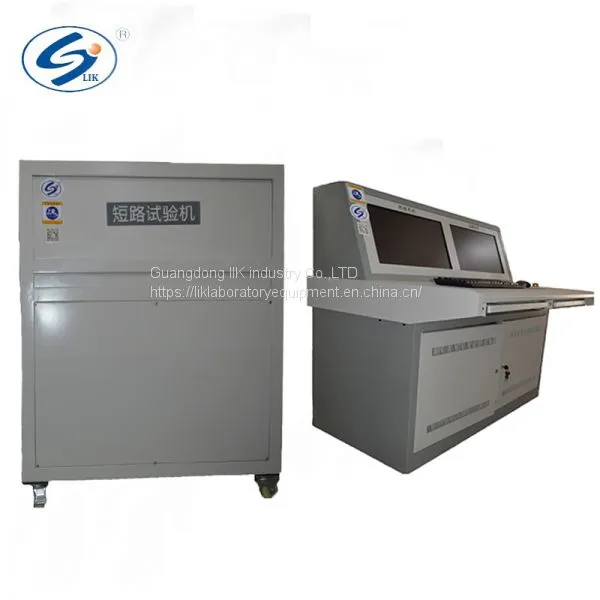

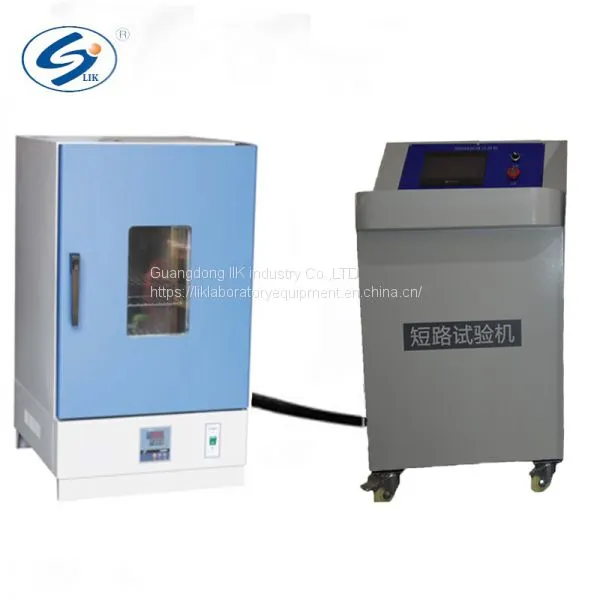

Products image
Specification
Model | LJ-1000A (P/C/D) | LJ-2000A (P/C/D) | LJ-3000A (P/C/D) | LJ-5000A (P/C/D) | LJ-10000A (P/C/D) | LJ-15000A (P/C/D) | LJ-20000A (P/C/D) |
Working voltage | 220V AC 50Hz-60Hz | ||||||
Impulse voltage | AC 1kv/1.2-50μs,1min | ||||||
Short circuit range | 0-1000A | 0-2000A | 0-3000A | 0-5000A | 0-10000A | 0-15000A | 0-20000A |
DC Response time | ≤5μs | ||||||
Maximum voltage of measurable battery | 100V | 100V | 100-200V | 700V | 700V | 700V | |
Maximum short circuit current | 1000A | 2000A | 3000A | 5000A | 10000A | 15000A | 20000A |
Internal resistance | ≤5mΩ | ||||||
Cold pull-in voltage | ≯66%Us | ||||||
Cold state release voltage | ≯30%Us,≮5%Us | ||||||
Short-circuit operation time | 0-9999 | ||||||
Movement time | pull-in/release time ≯30ms | ||||||
Mechanical life | 300000 times | ||||||
Electrical Life | Resistive load 50000 times, Perceptual load, Resistive load 60% le, 20000times | ||||||
Temperature acquisition channels | 3 channel; temperature acquisition range: 0~500ºC; the temperature acquisition precision: ±0.5ºC ; the temperature acquisition rate:≤1s | ||||||
Voltage acquisition channels | 1 channel; voltage acquisition range: 0 ~ 200V, voltage acquisition rate: ≤1s, voltage resolution: ≤1mV | ||||||
Current acquisition range | 0 ~ 5000A; acquisition channel: 1 channel; current acquisition accuracy:≤ ±1%F.S; the current acquisition rate: <10ms. | ||||||
Working Environment | Temperature -10ºC~100ºC, Humidity 10~90%R.H no condensation | ||||||
Safety device | Equipment has alarm device, automatically alarm when the equipment is leaks, overcurrents, or smoke reaches a certain concentration. | ||||||
Equipment Dimension | 500*500*900 (W*D*H)MM (or according customer requirements) | ||||||
Explosion-proof chamber size | According customer requirements | ||||||
Equipment estimate weight | 150KG-300KG | ||||||
Remarks | P: normal style; C: Touch screen style: D: Computer control. Such as LJ-1000AP is normal style; LJ-1000AC touch screen style; LJ-1000AD computer style. | ||||||
Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. |
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
