Electronic damp proof cabinet
Application
The dry cabinet is a dehumidifying platform developed from military hi-technology, which can achieve many kinds of humidity levels for precision parts and electronic devices. It can be used for store in sort with precision parts, top grade camera lens, photographic accessories, Optics Instruments, electron devices, IDE(integrated device electronics), SMT, CMOS chips, etc...So that it can prevent all the said from mildewing, foggy, oxygenation corrosion, maturing to break, invalidation of electron devices, etc...To improve the reliability and increase service life of storages in the cabinets, micro-computers are chosen for enhancing maintainability and integrity of the parts, so that all the precision and electronic parts can be in best condition.
Product Description
1. Clearndicated, Convenient display Temperture(left/red) Humidity(right/green);
2. Door frame covered with magnet rubber keeps reliable air-tightness;
3. Tempered glass window. Lock-key handle;
4. Humidity controller maintains atable constant humidity;
5. Power disribution lamp and in operation lamp;
6. Sturdy and durable shelf (tolerance: 100kg/per)is movable up and down;
7. Most economical, Running cost is electricity alone;
8. Operation in normal temperature, noiseless, tremor free, long life;
9. Special desiccant is DRY-UNIT is semi-permanent.
Features:
1. CTA20%-60%RH adjustable, medium humidity level series.
2. CTB10%-20%RH, Low humidity full atuomatic series.
3. CTC1%-10%RH, ultra-low humidity full automatic series.
4. dehumidity full auomatically with manual operation, it can keep long-term storage. 5. Providing the corduroy that save the most energy, the ability to dehumidify is great, no dust, no drip, no noise, it is real low-loss design.
6. high-precision display way, the difference of digital display is ±2%RH. 7. High-bearing activity plywood makes box inside space divided easier.

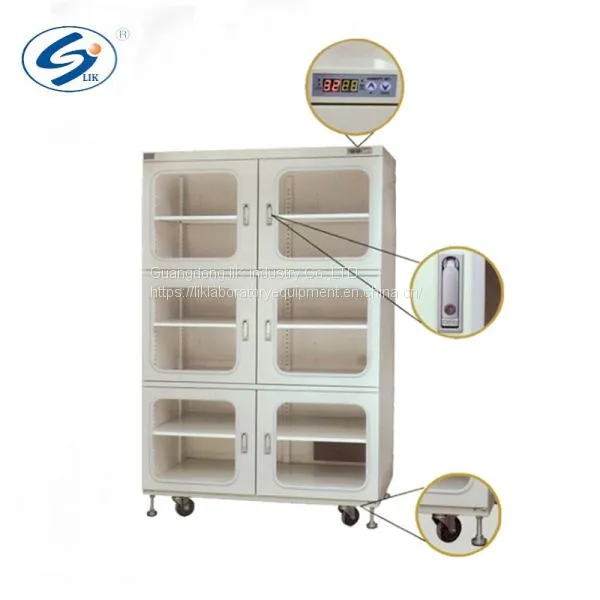

Products image
Specifications and technical parameters
| Model number | CTA(BC) 160D |
CTA(BC) 240D |
CTA(BC) 320D |
CTA(BC) 435D |
CTA(BC) 540D |
LCTA(BC) 718D |
CTA(BC) 870D |
CTA(BC) 1436AD/BD |
| Inner size (W*D*H)mm |
446*422 *848 |
596*372 *1148 |
898*422 *848 |
898*572 *848 |
596*682 *1248 |
596*682 *1723 |
898*572 *1698 |
1198*682 *1723 |
| Outer size (W*D*H) mm |
448*450 *1010 |
598*400 *1310 |
900*450 *1010 |
900*600 *1010 |
598*710 *1465 |
598*710 *1910 |
900*600 *1890 |
1200*710 *1910 |
| Capacity | 160L | 240L | 320L | 435L | 540L | 718L | 870L | 1436L |
| RH range | CTA: 20%-60%RH; CTB 10%-20%RH; CTC 1%-10%RH | |||||||
| Temperature | RT uncontrollable | |||||||
| Voltage | 110V/220V 50HZ (can be custom made) | |||||||
| Display& Precision |
Digital Display;Humidity ±2%RH & Temperature ±1ºC | |||||||
| Material& finishing |
Cabinet=high quanlity steel plate+hardcoated resin paint Door=Glass window Powerful magnet rubber seal maintain high air tighting |
|||||||
| Shelves | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 |
| Doors | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4/6 |
| Wheel | 4 movable wheels 2 front with brakes,4 suppoters for fixing | |||||||
| Color | Two colors for options home using in Ivory/anti-static balck(the color can be chosen as your request) | |||||||
| Selective Accessories |
RS485 interface PC connectable all the dates can be record; Inner LED head light; Sound-light alarm system;SUS304/SUS201 for body cabinet&shelves | |||||||
| Condition(RH%) | Store items |
| 60%~45% | Paintings, antiques, paper money, old books, Fax paper, |
| 45%~35% | Camera, lenses, microscopes, endoscopes, binoculars, magnetic tape, disks , records, film, negatives, positive film, musical instrument, stamps, furs, medicinal materials, tea , coffee, cigarette etc. |
| 35%~20% | measurement instruments, all electronic parts, pc boards, PCB, metallic powders, semiconductors, medical supplies etc. |
| 10%~20% | electronic parts ,IC,BGA,Sample, standard measuring tool, seeds, pollen, seedlings etc. |
| 1%~10% | The material needs ultra-low humidity,just as some IC, BGA and so on |
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
