Home > Products > Dring oven and wardrobe > Electric Heater Air Circulation Industrial Drying Oven
Electric Heater Air Circulation Industrial Drying Oven
- 200 Piece / Pieces per Month
- Shenzhen
- T/T L/C PayPal Other
- 30 days
- automatic toroidal winding machine Replace JOVIL toroidal winder by (SS900B6 series final coil OD 10~81mm)
- Replace RUFF toroidal winder by (SS900B6 series final coil OD 10~80mm)toroid winding machine
- (SS900B6 series) automatic toroidal winding machine
- Replace VC toroidal winder by (SS900B6 series) automatic toroid winding machine
- SS966T 6 spindles automatic fine wire twisting transformer coil winding machine
- SS810 Automatic high torsion electric power transformer coil winding machine
Product Details
Brand Name: | LIK | Place of Origin: | China | Model Number: | LJ101/2/3 |
Certification: | ISO 9001 | After-sales Service Provided: | Overseas third-party support available | Warranty: | 1 year |
Weight: | 34kg | Dimension(L*W*H): | 400*450*400 | Condition: | New |
Voltage: | AC 220V 50HZ/60HZ | Power(W): | 500W |
Product Description
Production description
Electric Heater Air Circulation Industrial Drying Oven ,
Electric Oven is mainly used in biochemical,chemical and pharmaceutical,health care,agricultural research,environmental protection and other research applications of drying, baking, dewaxing, sterilizing, preheat variours materials, heat treatment, preservation and so on. It als can be used for ordinary constant temperature test. This drying oven is electrothermal blowing dry chamber/box, it reaches temperature regularity index depending on air enforcement convection.
Features
1. LJ101 series uses interactive type, It can input parameter by accepting up and down buttons. The surface of instrument does not be hot after long-time service within 300ºC. It with observation window, over 3 kinds of protector, box has magnetic filed shield. The blower on the bottom.

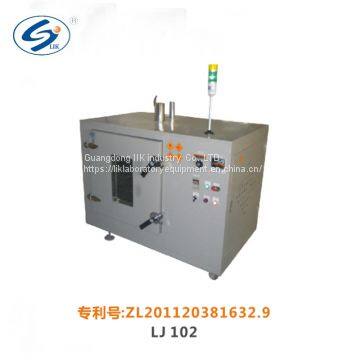

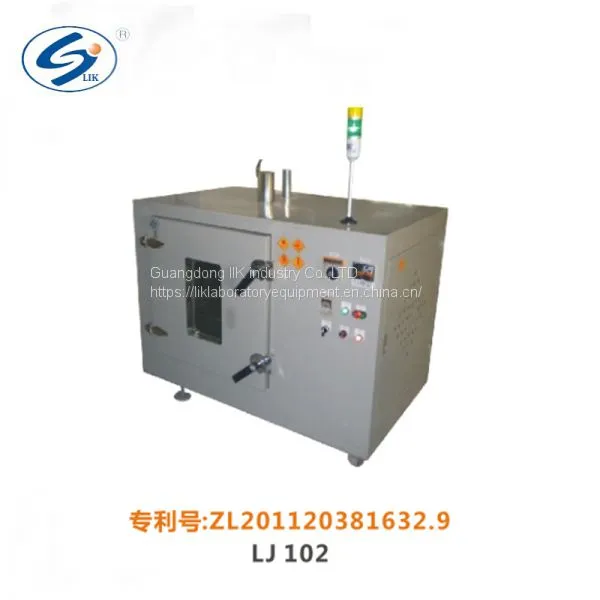

2.LJ102 series is high-precision program explosion prevention high temperature chamber, i designed according to the most advanced structure from overseas, its regularity reaches ±1ºC, temperature rising rate is 1-7ºC/min(linear change), it's high-precision, accurate on temperature control and not buffer during temperature rising due to adopt Japan Yokohama UP series multifunctional procedural controller The blower is in flank.

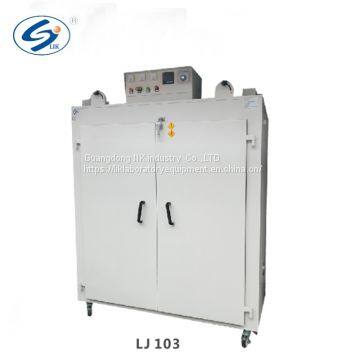

3. LJ103 series ovens, it's mainly used for roasting productions, it is capacious, it can take go-cart, The circulation mode of this instrument is blowing on both sides and the air suction in the middle.
4. Microcomputer based intelligent digital display temperature controller, it is accurate and reliable in temperature control, it is able to display preset temperature and actual temperature inside box synchronously; it has alarm functions of over-temperature/heat, electric leakage and sensor error; also has timing function. (intelligent LCD temperature controller is optional)
5. Adoption of low-noise fan and suitable air channel that form the hot air circulating system, the heated dry air flows through the objects directly to dry and sterilize.
6. high competitive factory price with high quality and power after-sales service.
Products image
Specifications and technical parameters
Model No. | LJ101 | LJ102 | LJ103 | |
Application | used for drying, baking, wax-melting, sterilization, curing, heat treatment, roasting products | |||
Performance | temp. range | RT+10~ 300ºC | ||
temp. resolution | 0.1°C | |||
temp. fluctuation | ±0.5ºC | |||
temp. uniformity | ±2.5% | |||
Structure | chamber material | Stainless Steel | ||
shell material | High-quality cold rolled armor plate rust prevention handle, static spraying plastics | |||
insulation material | Superfine glass filber | |||
Inside Door | Fire resistant tempered glass | |||
Controller | temp. control | Microcomputer intelligent digital display controller ((intelligent LCD temperature controller is optional) | ||
timer | 1~9999minutes(with timing function) | |||
sensor | Pt100 or K type | |||
additional function | deviation calibration, menu buttons lock, power outage compensation, power outage memory | |||
Safety device | over-temperature/heat, electric leakage and sensor error alarm | |||
Specification | workroom size W*D*H(cm) | (1E)40*50*40 (2E)50*50*50 (3E)60*65*60 | (1)40*40*40 (2)50*50*50 (3)60*60*60 | (1)80*100*100 (2)140*50*160 (3)100*100*150 |
Power source | AC220V 50Hz | |||
Accessory | shelf | 2pcs | 2pcs | 2pcs |
shelf bracket | 4pcs | 4pcs | 4pcs | |
Optional parts | Observation door, Jack horse, go-cart | |||
Optional device | shelf, RS485 port, printer, recorder, external communication, remote control, program temperature controller, wireless message alert, U disk storage. | |||
Customization service | Non-standard or special requirements are all welcome. | |||
Remarks | B: stainless steel internal bladder; C: Observation door; Example: LJ101-1EBC stainless steel internal bladder with observation door |
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
Contact Us
- Guangdong lIK industry Co.,LTD
- Contact nameBruce Lee
- Phone86-769-89295788-8833
- AddressDongcheng district Dongke road Dongcheng industrial park NO. 2 Dongguan,Guangdong
